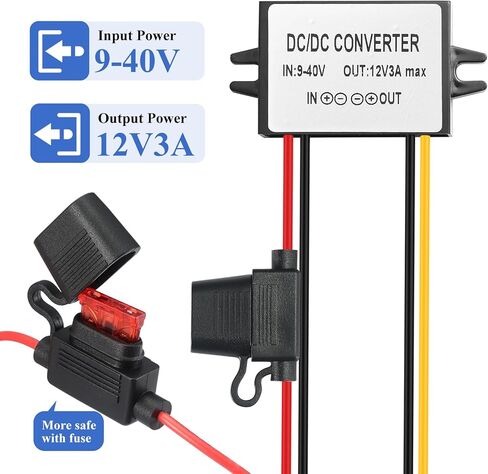

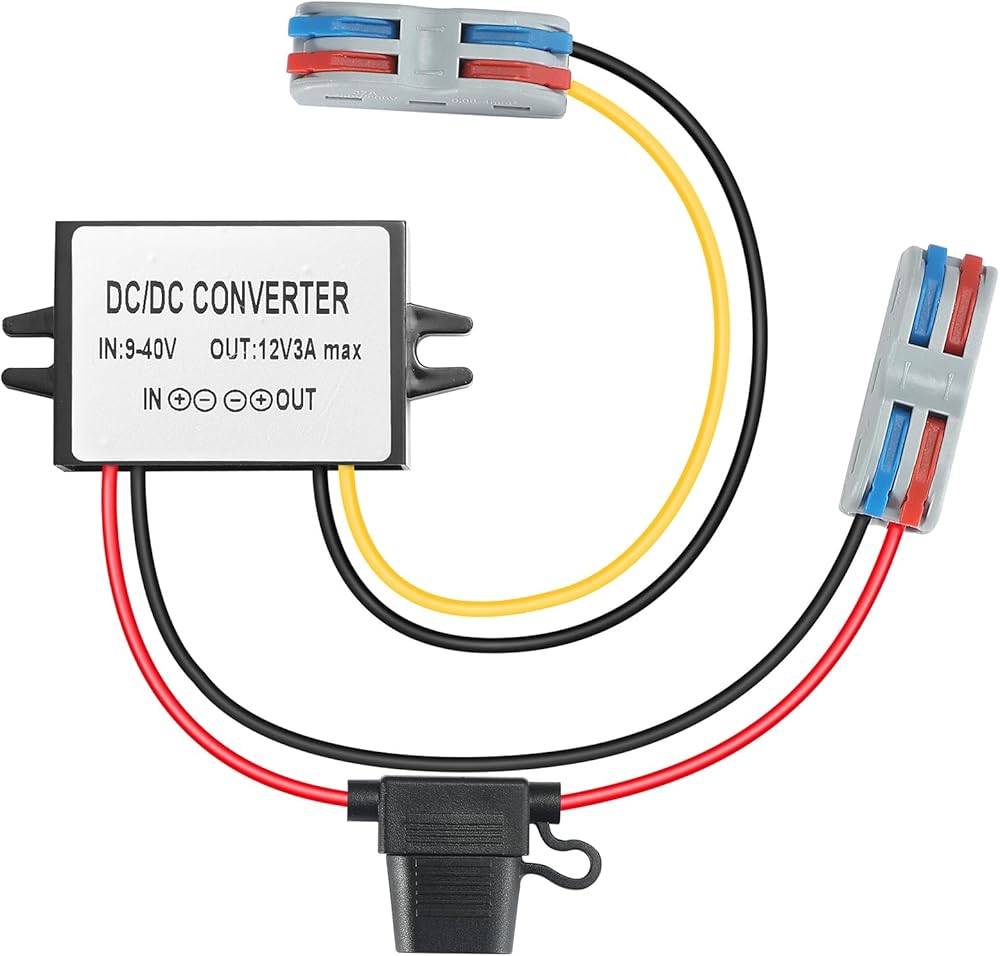

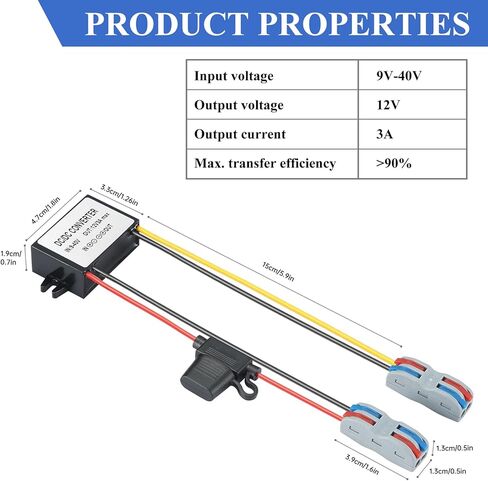

9V-40V to12V 3A Power Converter Product Parameters
Input voltage: 9 to 40V

Nominal input voltage: 12 or 24V

Transfer efficiency: 95%

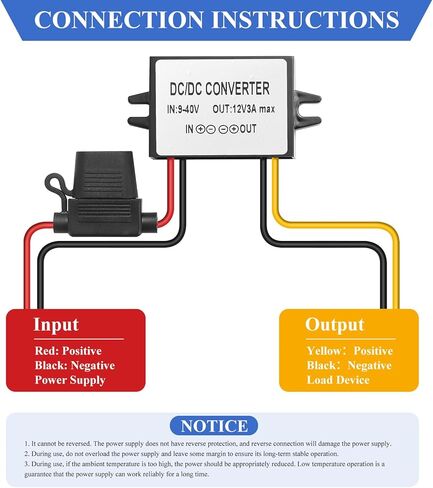

Input line: 15 to 16 CM, R+ B-

Output voltage: 12V

Output: 3A MAX

Maximum output: 36W MAX

Working temperature: -20 to 65°

Storage temperature: -40 to 85°

Working humidity: 10% to 90% RH

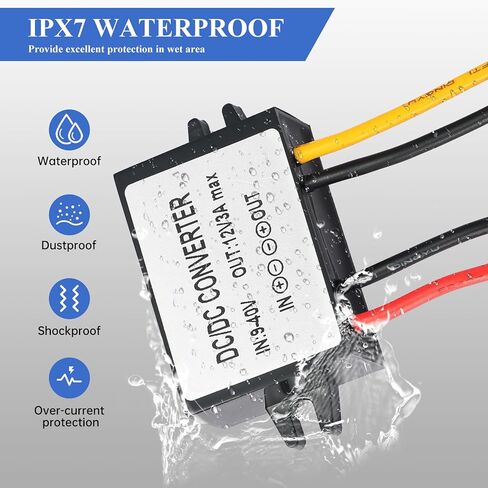

Waterproof classification: IPX7

Short circuit protection: YES

Overtemperature protection: YES

Overcurrent protection: YES

Anti connection protection: YES

Heat dissipation method: Natural heat dissipation

Attention

1.The products are stored in a dry and cool place with a temperature between 40℃ and 80℃, avoiding contact with corrosive substances and staying away from flames and heat sources

2.Do not use the device near a heat source, such as a fire or heater

3.Do not connect the input line to 220V electricity

4.Do not put the product in a fire or heat it

5.Do not short the positive or negative poles of the product with wires or other metal objects

6.It is forbidden for non professional personnel to disassemble and repair the product by themselves
