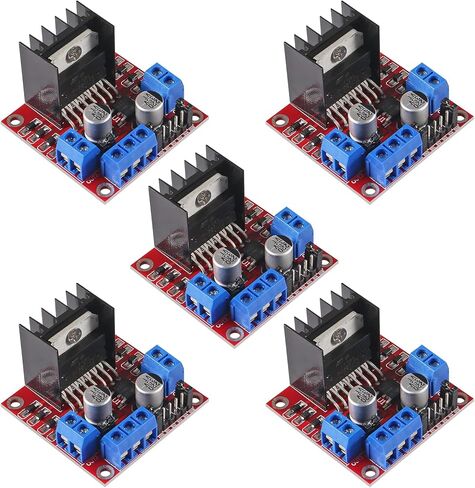

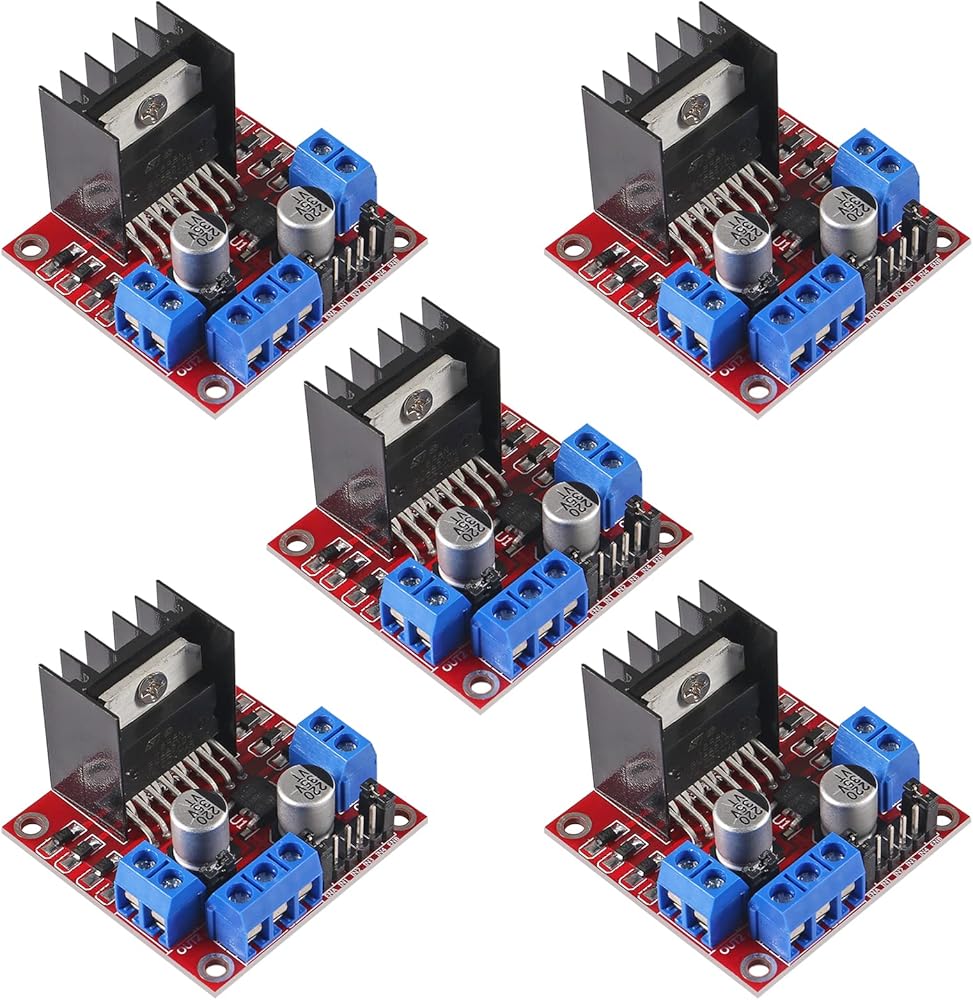

5PCS L298N Motor Drive Controller Board Module,Dual H Bridge Stepper DC Motor Drives Module for Smart Car Power Electric Projects

Maximum working voltage:46V,rated power 25W,output current instantaneous peak current up to 3A,continuous working current is 2A.

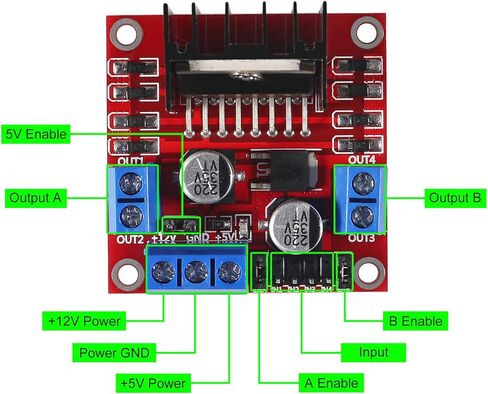

Features: L298N is a high voltage and high current motor driver chip.15 pin package with built-in 78M05 power supply. It has high driving ability and strong anti-interference ability.
Note: When the drive voltage is greater than 12V, please use an external 5V logic power supply to avoid damaging the voltage regulator chip.
Stable and Reliable: The use of large capacity filter capacitor,with a post-current protection diode, more stable and reliable.
Application:Double H bridge DC stepper module, working efficiency is higher, can be used to drive DC motor, stepper motor and so on.

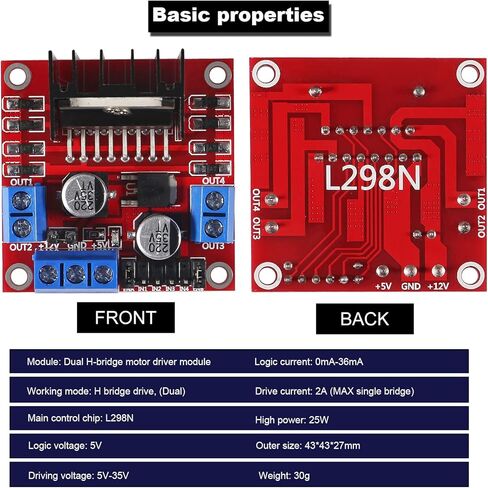

Module name: Double H-bridge motor driver module
Working mode: H bridge drive (dual)
Main control chip: L298N

Logic voltage: 5V
Driving voltage: 5V-35V
Logic current: 0mA-36mA
Drive current: 2A (MAX single bridge)
Maximum power: 25W

Storage temperature: -20℃ to +135℃
Weight: 30g

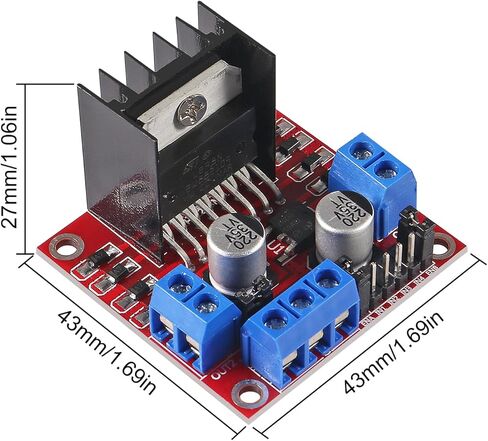

Outer size: 43*43*27mm
