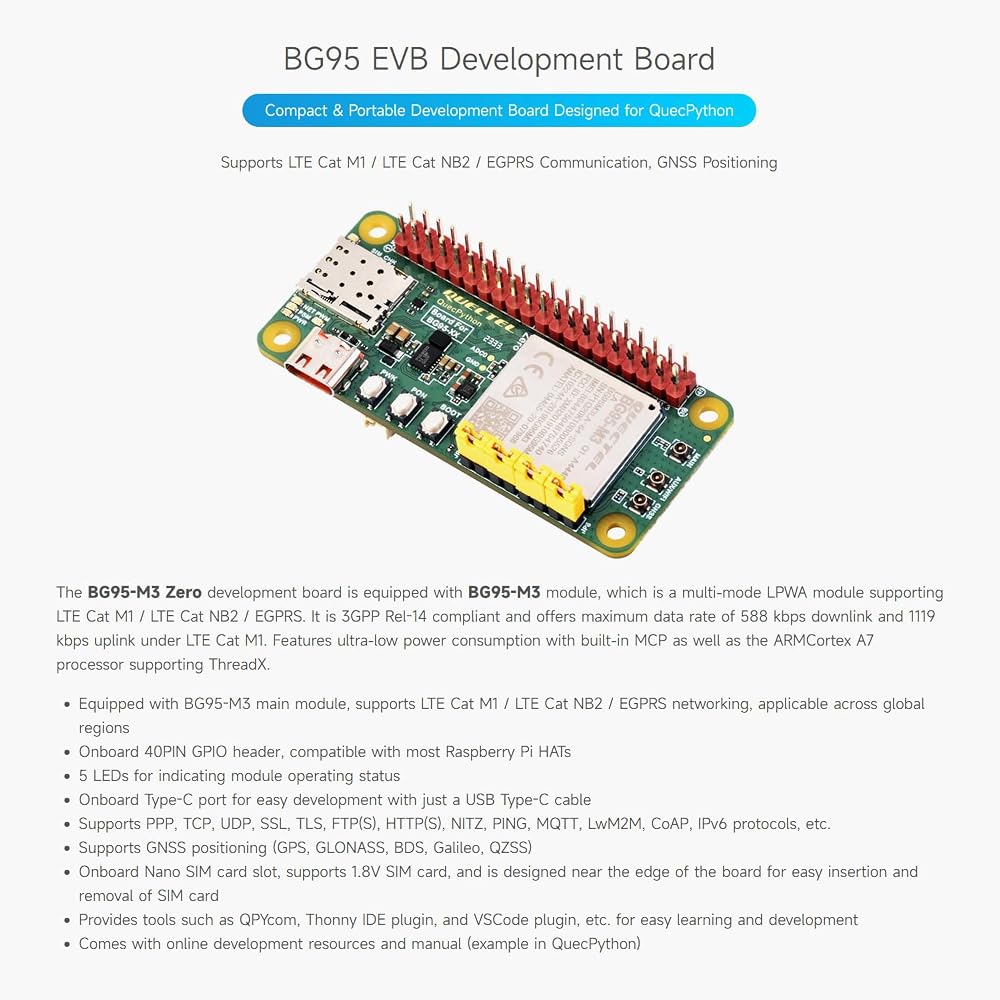

Waveshare BG95 EVB Development Board Designed for QuecPython, Low Power Consumption, Supports LTE/EGPRS Communication and GNSS Positioning
All electronics ship with US style plugs.
You may need a voltage converter or a plug adapter.
Special Features
Equipped with BG95-M3 main module, supports LTE Cat M1 / LTE Cat NB2 / EGPRS networking, applicable across global regions

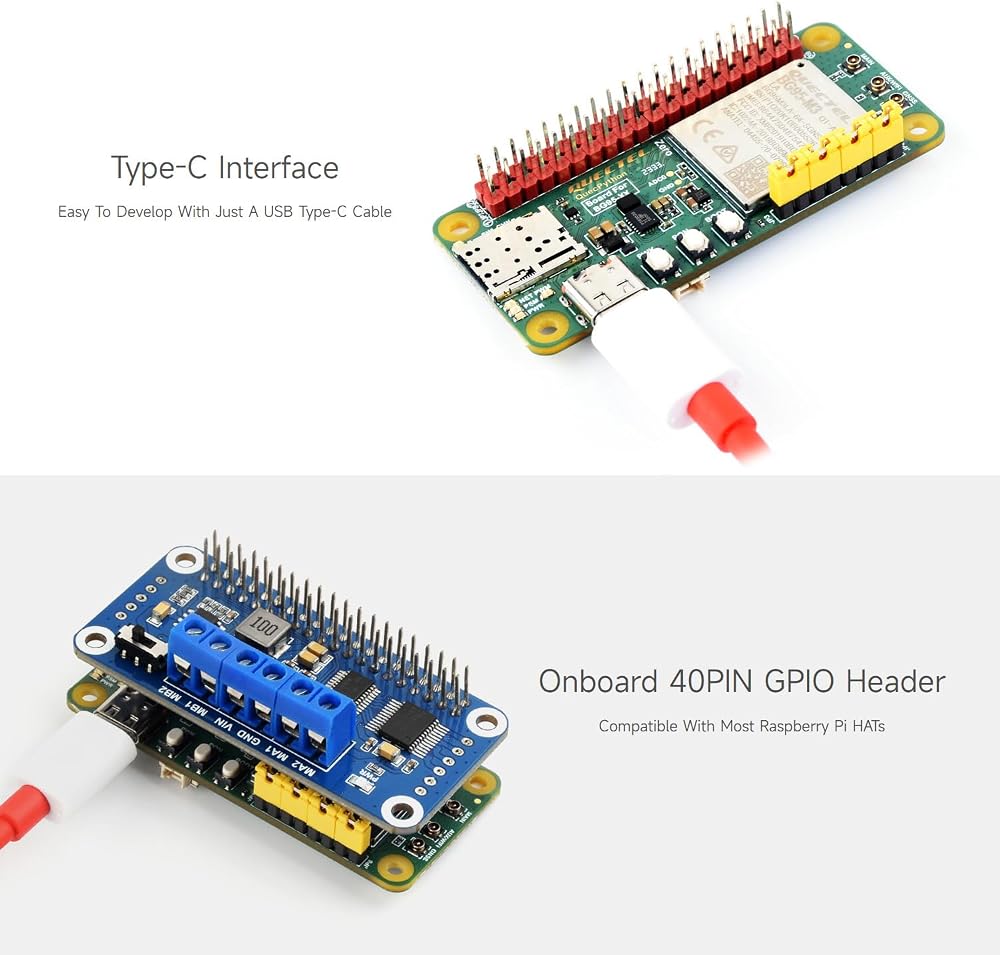

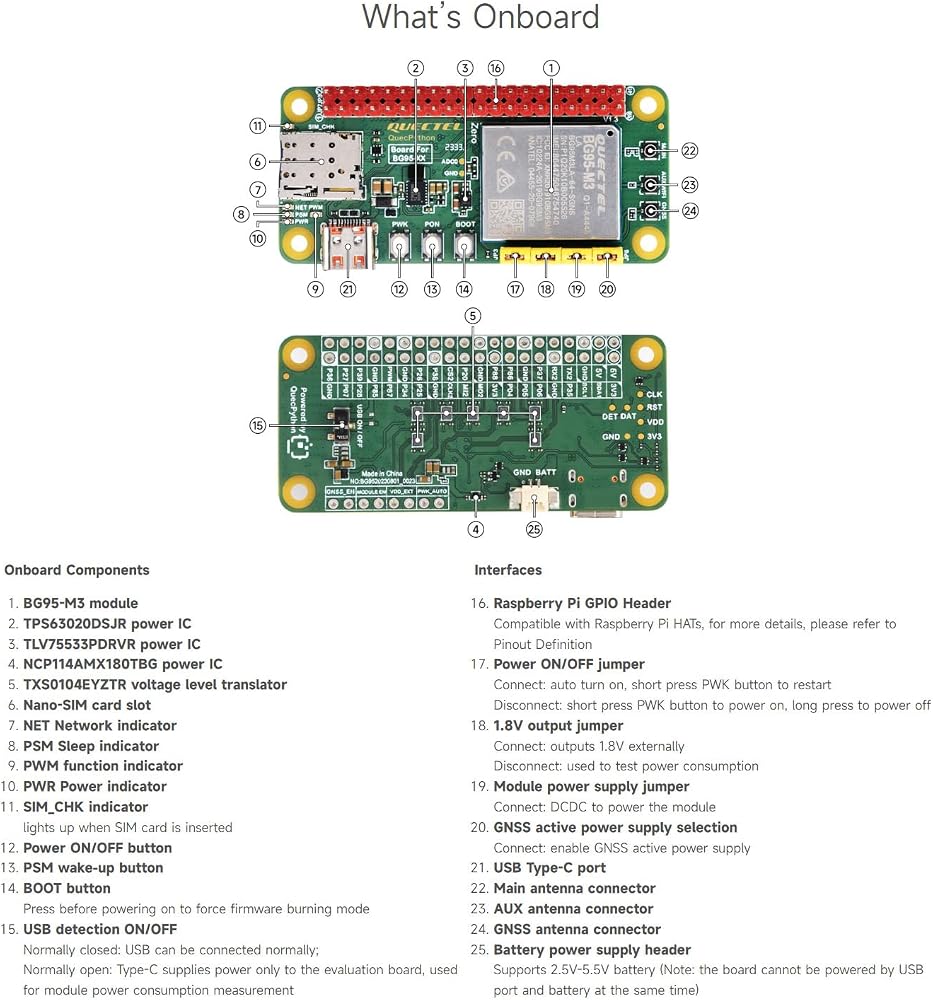

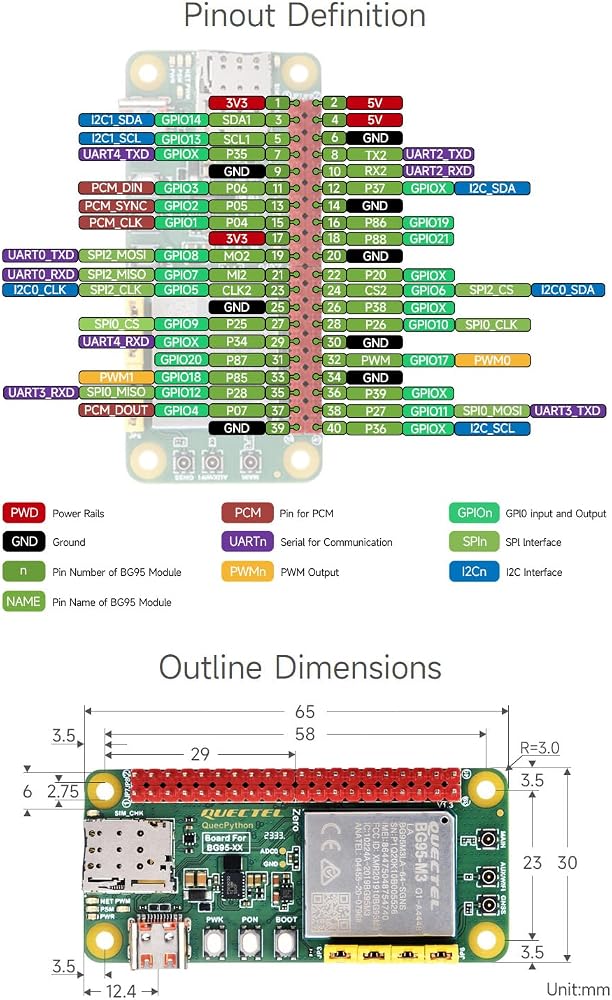

Onboard 40PIN GPIO header, compatible with most Raspberry Pi HATs. 5 LEDs for indicating module operating status
Onboard Type-C port for easy development with just a USB Type-C cable
Supports PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, PING, MQTT, LwM2M, CoAP, IPv6 protocols, etc.
Supports GNSS positioning (GPS, GLONASS, BDS, Galileo, QZSS)。 Onboard Nano SIM card slot, supports 1.8V SIM card, and is designed near the edge of the board for easy insertion and removal of SIM card

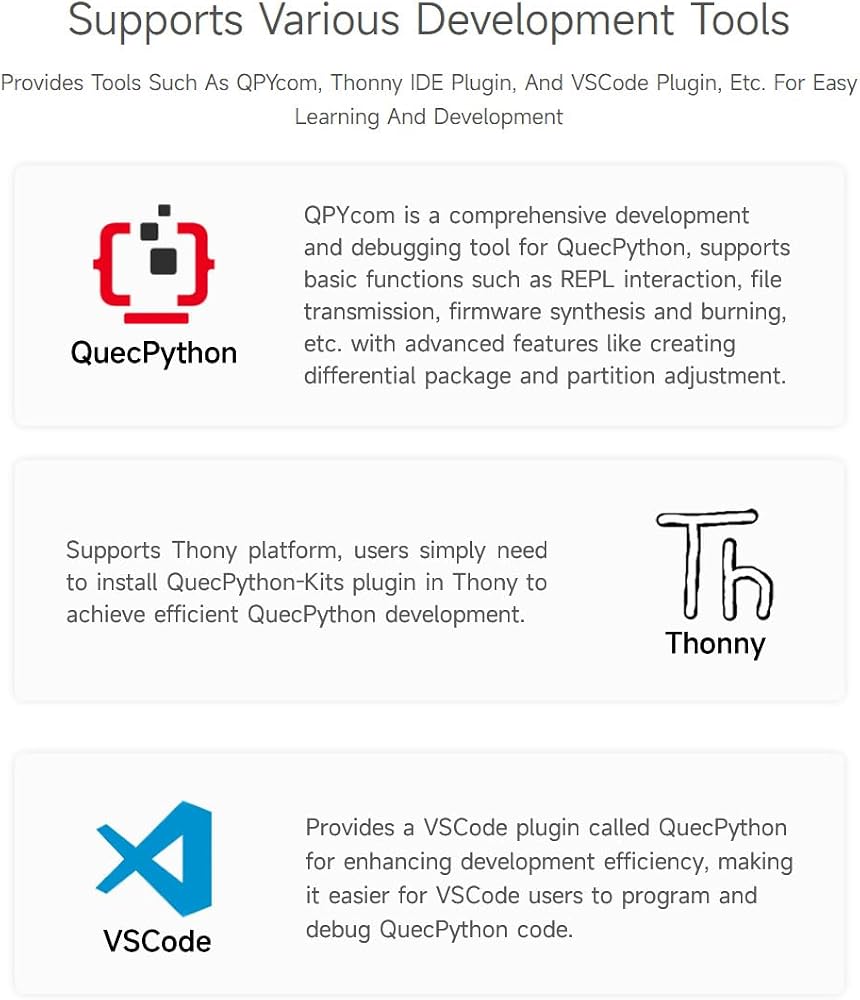

Provides tools such as QPYcom, Thonny IDE plugin, and VSCode plugin, etc. for easy learning and development
Comes with online development resources and manual (example in QuecPython)
