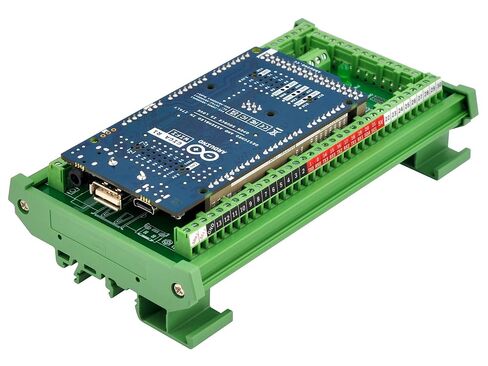

Terminal Block Adapter Module for Arduino GIGA R1 WiFi, DIN Rail or Screw Mount, GPIO Breakout Board, Standard Version

KWD 16

All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.

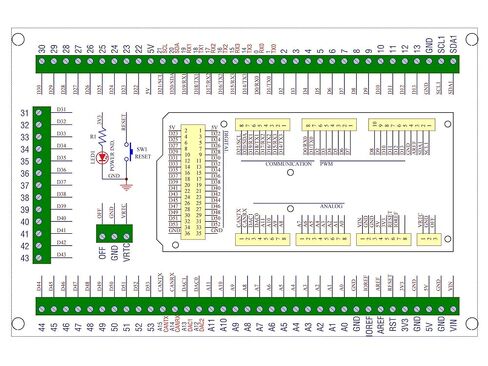

With the adapter module, you can easily extend Arduino GIGA projects to industrial control applications. The standard version support A0 - A11, D0 - D53, and other special ports and power ports connect to screw terminal blocks (In addition, we have another version - Full GPIO Version D-1630TBL, which contains all GPIO and special ports connected).
Terminal block: pitch 3.81mm/0.15", wire range 26-16AWG, strip length 5mm, Metric M2 slotted screw.

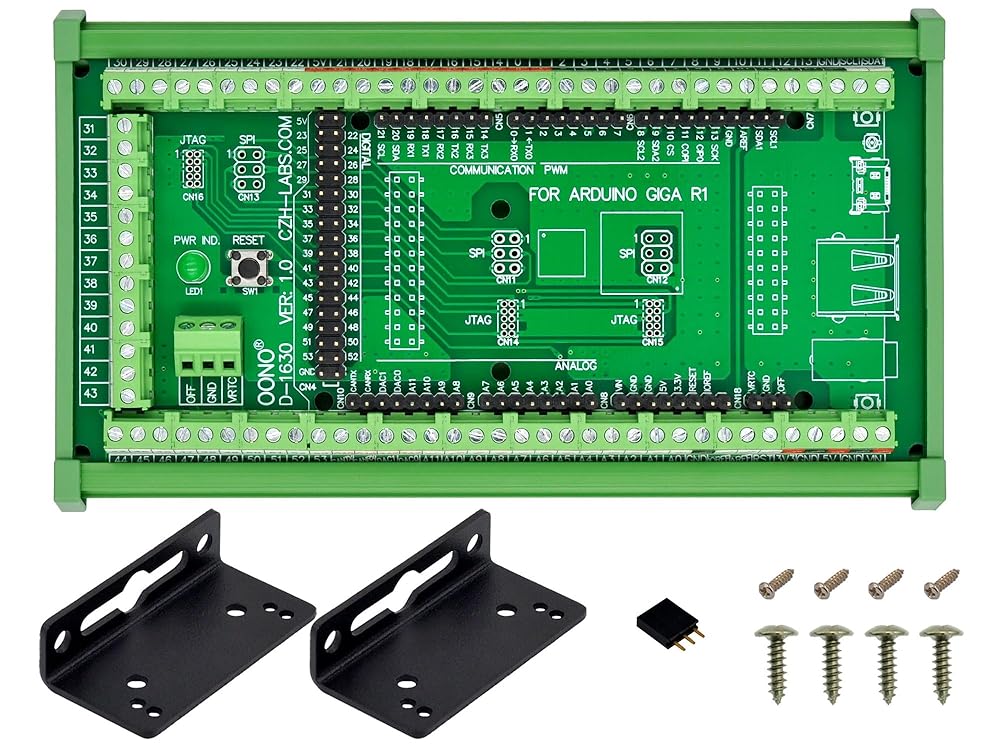

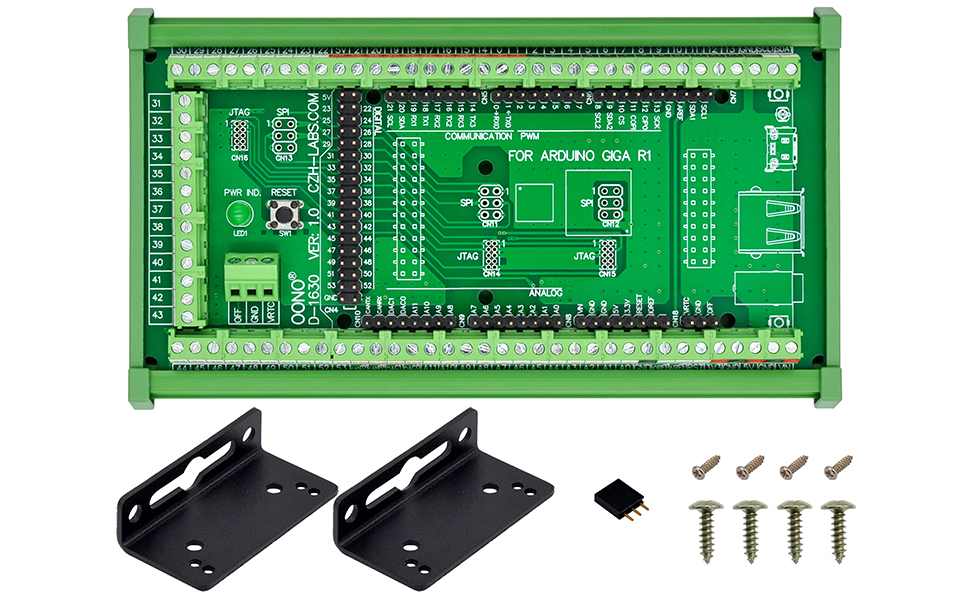

High quality fireproof nylon material DIN rail mount carrier, can support width 35mm, 32mm or 15mm rail. A pair of DIN rail to Wall mounting adapter brackets are also included, which will support wall or wood panel mounting.
UL CE CQC certified terminal blocks. UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.

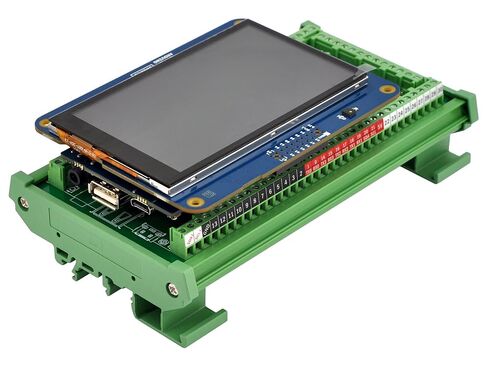

NOTE: the item not include Arduino-GIGA module and GIGA Display Shield.
