Specification:
Item Type: Multipurpose Debug Card
Material: PCB
Product Color: Black
Product Interface: PCI E, LPC
Supported Brands: Applicable to for Asus, for , for MSI, for Gigabyte, etc.
Product Size: Approx. 84 x 56mm / 3.31 x 2.2in

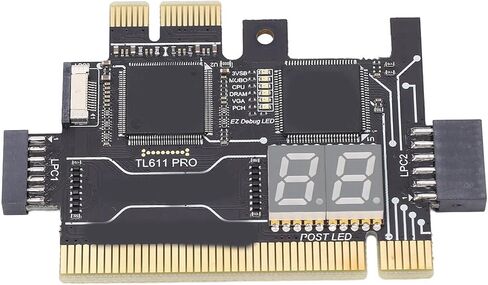

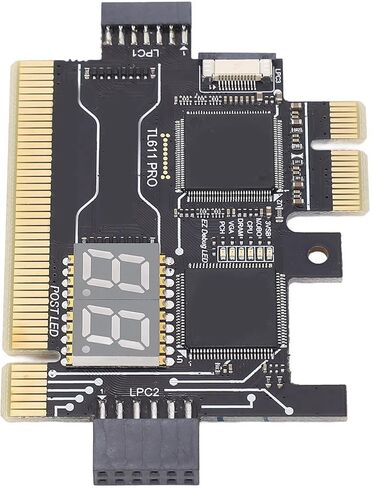

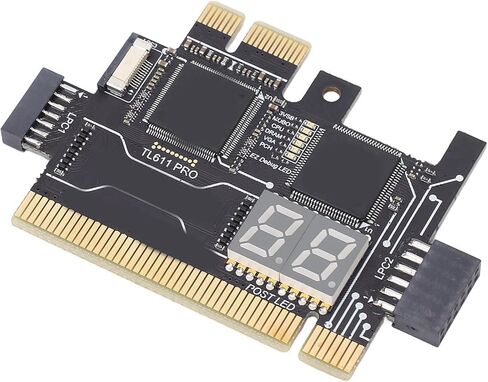

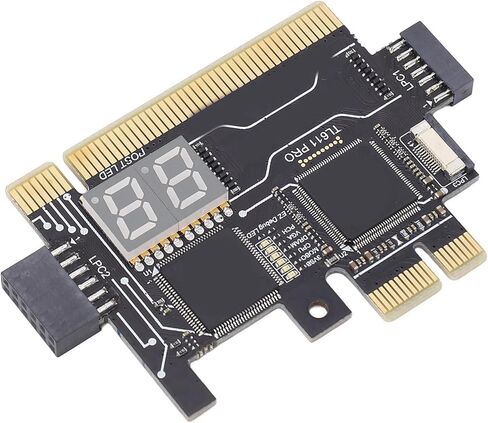

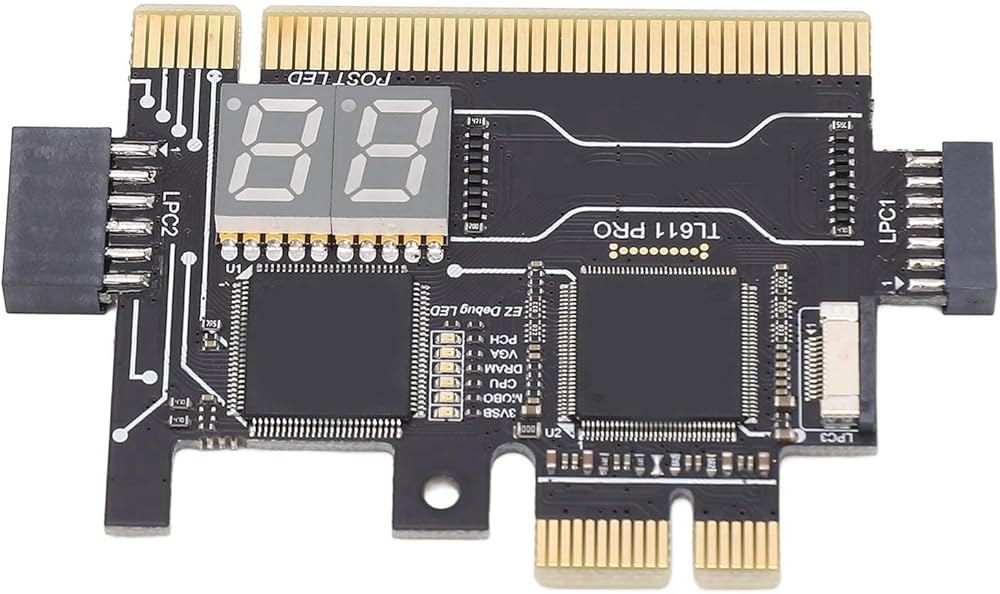

The diagnostic card has the following Settings:

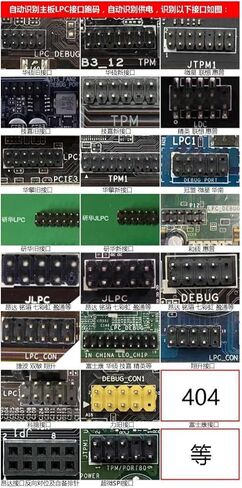

01, LPC1 Shared high speed channel = Connect mainboard 2.0 pin bar and Notebook for MINI PCIE.
02, PCI High speed channel = Support for all PC slots.
03, LPC2 shared high speed channel = Connect motherboard 2.54 large row of pins and ultra micro SPI.
04, PCIEX1 High speed channel = Can test for Gigabyte without PCI motherboard.
05, LPC3 shared high speed channel = Connect the laptop for MINI PCIE, for A DEBUG conversion card, for DEBUG CON, for EC DEBUG.
06, 3VSB power indicator to check whether the power supply is normal.
07, MOBO mainboard indicator, check whether the mainboard is normal.
08, CPU indicator, check whether the CPU module is normal.
09, DRAM memory indicator, check whether the memory module is normal.
10, VGA graphics card indicator, check whether the graphics card module is normal.
11, PCH Southbridge indicator, check whether the Southbridge module is normal.
12, Tie a golden cord or take a key chain.
13, DP decimal point, CLK display.

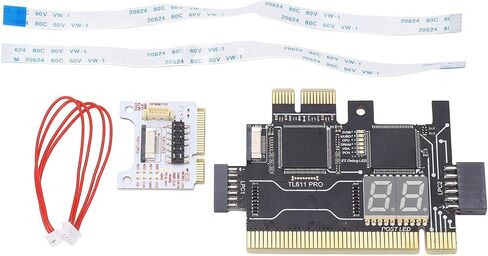

packing list:
1 x Diagnostic Card
1 x Connection Cable
1 x Adapter Card
2 x Flat Cable
