Model: 3516
Fast charge protocol compatibility:

USB PD30 (PS) : support

Qualcomm QC4+/QC3.0 : support

Huawei SCP/FCP : support

2.4 A : support

Samsung AFC : support

VIVO9V2A twin engine : support

Mediatek PE20 : support

Adopt external MOS tube, double wire and iron, silicon and aluminum magnetic ring, high efficiency, lower heating under the same charging power!!!

Double parallel low resistance electrolytic capacitor +6 1206 ceramic capacitors!Only for higher performance

Notes:

1. For quick charging with low voltage and large current, please use the original data cable. If you want to measure the charging voltage and current, please use the USB meter with low internal resistance!Otherwise affect charging current!
2. TYPE O port is used for output charging;Use c-to-c /TYPE_C dual-head data cable TO charge mobile phone or laptop!
3, QC4+/QC4.0/PD3.0 and other protocols use YPE O port!
4. When the power supply voltage is higher than 21 volts, the maximum support of port C PD protocol is 20V3A output. The module volume is small.
5. When USB port and TYPE_C port are plugged in at the same time, both ports are 5V output!

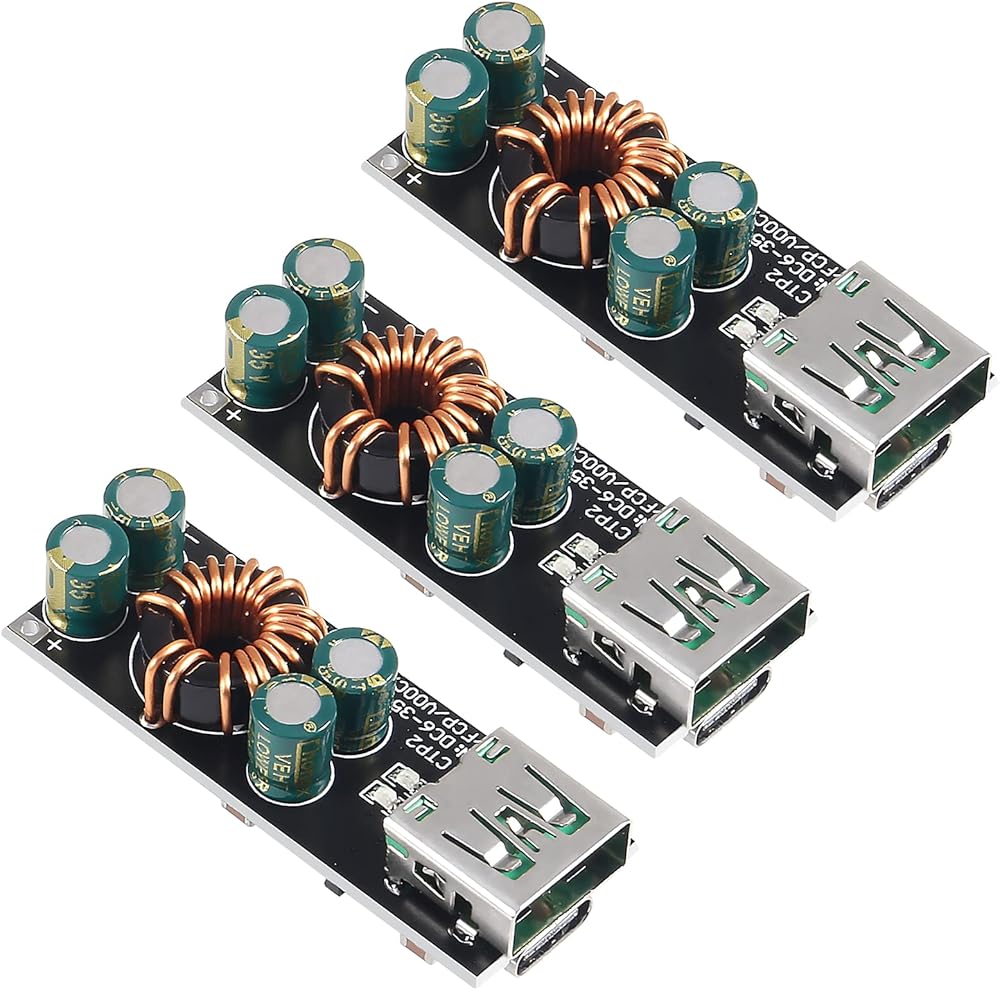

Package: 3PCS
