USB 2.0 hub Over Fiber Extender to Max 5 Km Over 1 SM Fiber or 500 Meters Over MMF, Compatible with USB 1.1, w/SFP Module, Supports Oscilloscope Devices etc

KWD 115.500
Brand
Transwan
Weight
499 g
– 1 +

Special Features

  • Support USB1.1 and USB 2.0 devices Such as Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Wireless Dongle, USB headset, USB to RS232 Adapter,Arbitrary Waveform Generator 33250A & 82357B, Data Acquisition Device (DAQ), PicoScope Oscilloscope, Akai APC devices etc.
  • Max distance 5 Kilometers over 1 Single mode fiber cable or 500 Meters over Multimode Fiber; 4 ports USB 2.0 extend to 1 port at display, or 1 port USB 2.0 splitted to 4 Ports USB 2.0
  • 1 fiber bi-directional transmission, pure hardware design, no driver needed, support plug and play
  • Auto recognition of High-speed (25Mbps～480Mbps)、Full-speed (500Kbps～12Mbps)、Low-speed (10Kbps～1.5Mbps) USB devices. so Be Backwards Compatible with USB 1.1
  • Be compatible with all Operation systems like Windows, Mac OS, LINUX, UNIX etc.
  • Power-up sequence: Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB devices and the transmitter module it's connected to must both be powered up and running BEFORE the computer is booted up. Otherwise, the USB device's driver in the computer will not be loaded, and the devices will not connect. In case the USB device's driver shows can not Identify the Device or shows "Unknown Device", please unplug and plug the receiver module.

Description

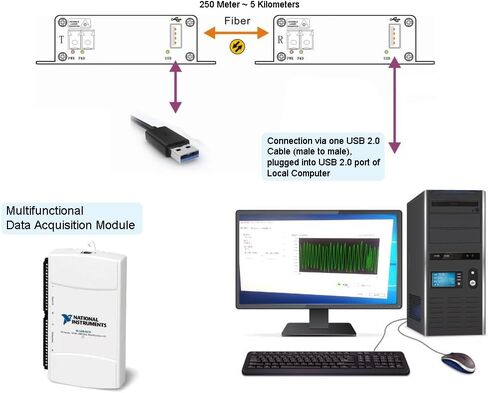

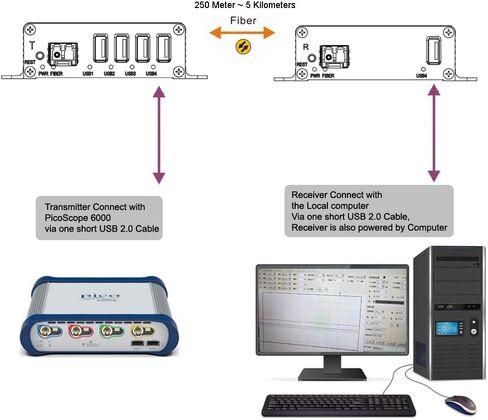

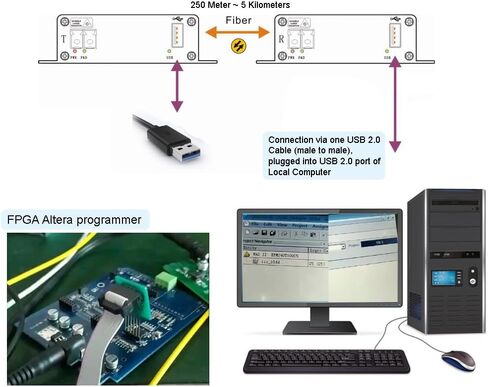

BY-USB-388SF includes a transmitter and a receiver, which can extend USB 2.0/1.1 device to a remote location over 1 Single Mode fiber cable, max distance 5 Kilometers or 500 Meters over MMF. it can also splitter 1 Channel USB 2.0 signal over fiber to 4 USB 2.0 ports in remote display.

It can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc

Optical Connector: 1 x LC
Wave length: 1310 nm/1550

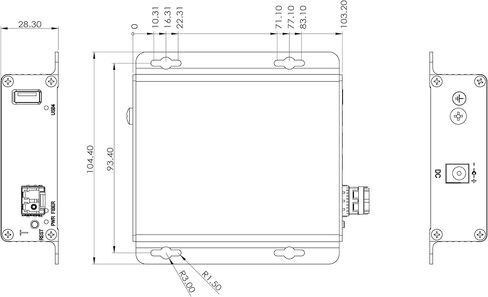

Physical Size (L× W ×H): 104 mm x 104 mm x 28 mm
Case: Aluminum
Color: Black
N.W.: 0.75Kg
Power Voltage: 5V DC
Transmitter power consumption: Receiver power consumption: Environment Working temperature: -20℃-70℃
Storage temperature: -40-85℃
Humidity: 0-95% (non-condensing)

USB interface(Type A):
Receiver: 1 port, connect to PC
Transmitter: 4 ports, connect to USB 2.0/1.1 device
Package:
1. 1 x transmitter (client side)
2. 1 x receiver (host side)
3. 1 x Power supply adapters DC 5~12V with US/EU/UK/AU plug for the transmitter.
4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable
5. 1 x Manual
