VONETS VAP11AC is an Industrial Dual-band 2.4GHz+5GHz WiFi bridge Wireless Repeater/Router with smart cooling fan, WiFi to Ethernet Adapter, WiFi Hotspot Signal cover, can achieve WiFi to Wired or Wired to WiFi function (WiFi to Ethernet or Ethernet to WiFi convert)

1.Pay attention to using the standard/typical 5V/2A or 12V/1A power adapter to power.

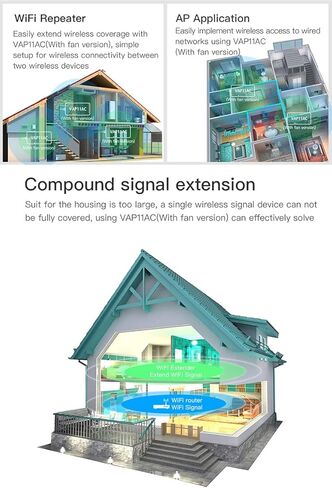

2. Easy full house WiFi coverage.
3. Can turn off unused WiFi 2.4G or 5G WiFi hotspots, reducing energy consumption.
4. Support connecting more than 20pcs WiFi terminal at the same time;
5.WiFi hotspot memory, maximum up to 100 hotspots;
6. Support SSA signal strength detection and reporting function to realize WiFi mobile positioning;
7. TAFC temperature compensated function, make wireless frequencies more stable and effective.
8. RF power: 2.4G: 15dBm, 5G: 21dBm/23dBm optional
9.Built-in smart automatic start/stop cooling fan, More stable operation, built-in 2 high-power FEM
10.Built-in heat sink with convection cooling holes on both sides of the housing for more efficient heat dissipation;

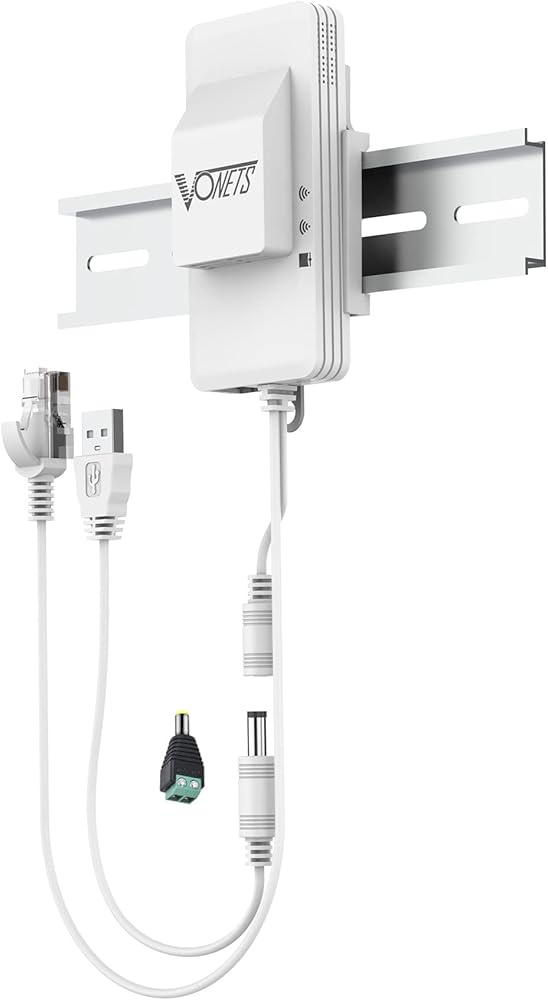

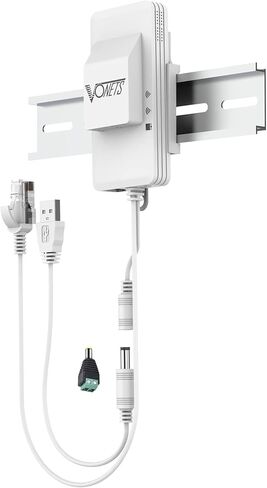

11.Fixed hook, convenient for project application.
12. Working environment temperature: -20°C to 55°C

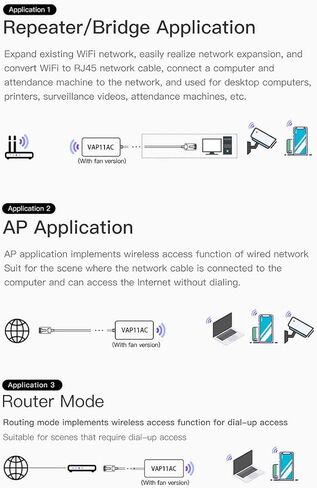

13. Support IP layer transparent transmission and MAC layer transparent transmission two bridge modes to meet various bridge applications.

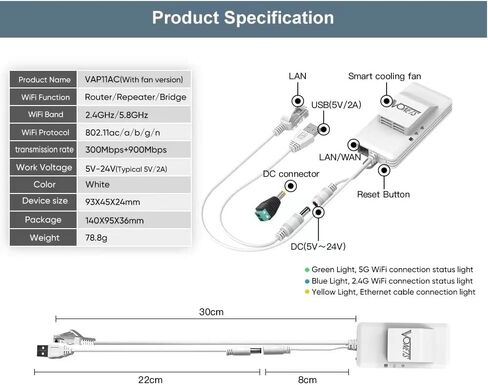

Specifications:
Reset button:long press 5 seconds, then release, the device will automatically restore the factory ),during operation, the product can not be powered down, otherwise it may cause damage to the product
Antenna: Built-in 2pcs Smart omnidirectional 2.4G 1.5dbi+2pcs 5G 1.5dBi Antennas
LED Status instruction:
Ethernet port status light (Yellow);
2.4G WiFi connection status light (Blue);
5G WiFi connection status light (Green);

Package:
VAP11AC *1
Industrial DC connector*1
Fixing kit *1
User Manual *1
Retail box *1
