30

KWD 3
Brand
VKLSVAN
Weight
21 g
Number of Items30
– 1 +

Special Features

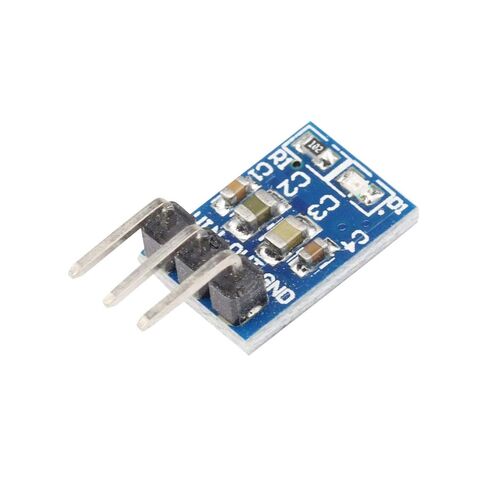

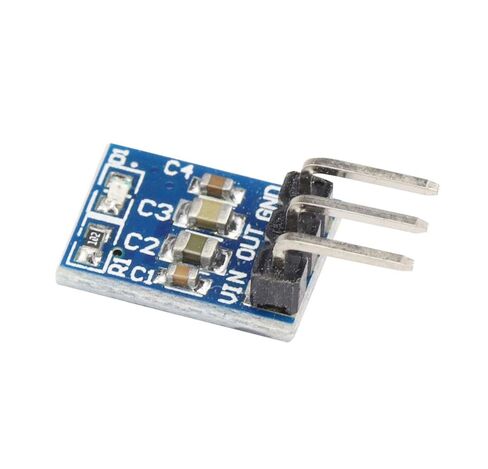

  • 【Introduction】AMS1117-3.3 is a positive voltage regulator Step Down Power supply module, This is a forward regulated step-down power supply module that supports DC 4.75-7V input and 3.3V fixed voltage and 800 mA current output.
  • 【Voltage difference】Input: 4.5 V DC - 7 V ,Output 3.3V, (input voltage must be wining the to the output voltage high 1 V above).
  • 【Easy to be connected】the 3 pins AMS1117-3.3 voltage Stabilizer mini power supply module, can be applied to electronic devices which need 3.3V power supply, such as SCM project design, MCU development and more, It can be easy to connected with your MCU development and provide the constant power supply.
  • 【Function】 the voltage to 3.3V 800mA DC buck module is applicable for high-efficiency linear Stabilizer published active power Stabilizer battery charger active instrument.
  • 【Provide more security】 AMS1117-3.3 800MA DC antihypertensive module has an overheating control circuit, providing overload and temperature protection, safe and worry-free, bringing you more convenience.

Description

Specifications:
The Chip: AMS1117-3.3
Output current: 800mA
Line adjustment rate: 0.2% (maximum)
Load regulation: 0.4% (maximum)
Operating unction temperature range: -40°C to 125°C
Storage temperature: - 65°C to 150°C
Size: 12.3mm * 8.6mm
Input voltage must be more than 1V higher than output voltage The input is only 1.2V higher than the output and works fine.
Output voltage: 3.3V (IOUT: 0 to 800mA, VIN :4.75V to 7V)
Line adjustment (maximum): 10mV (VIN :4.75V to 12V)
Load regulation (maximum): 15mV (VIN = 5V, IOUT: 0 to 800mA)
Voltage difference (maximum): 1.3V
Current limit: 900 - 1500mA
Quiescent Current (Max): 10mA
Ripple suppression (minimum): 60dB

Function: the voltage to 3.3V 800mA DC buck module is applicable for high-efficiency linear Stabilizer published active power Stabilizer battery charger active instrument.

Provide more security:AMS1117-3.3 800MA DC antihypertensive module has an overheating control circuit, providing overload and temperature protection, safe and worry-free, bringing you more convenience.

Package contain:

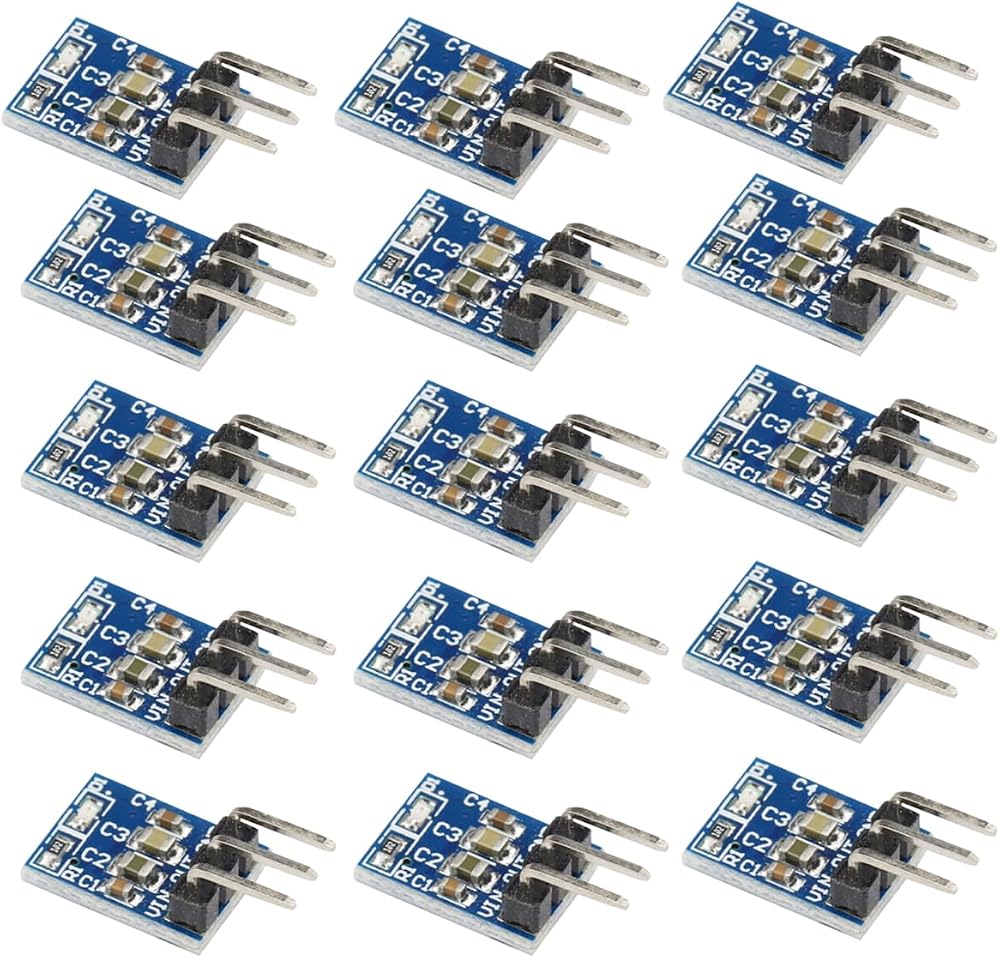

15PCS AMS1117-3.3 DC-DC Step Down Voltage Regulator Power Supply Module
