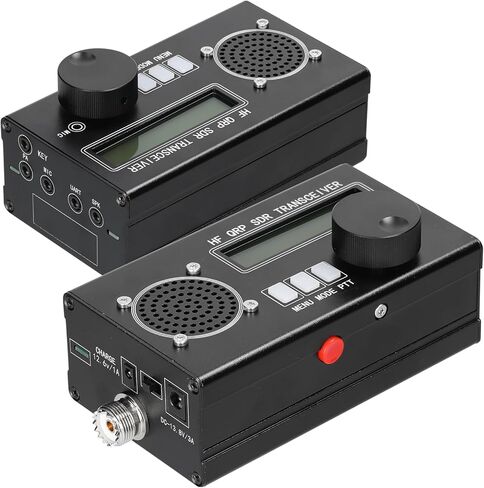

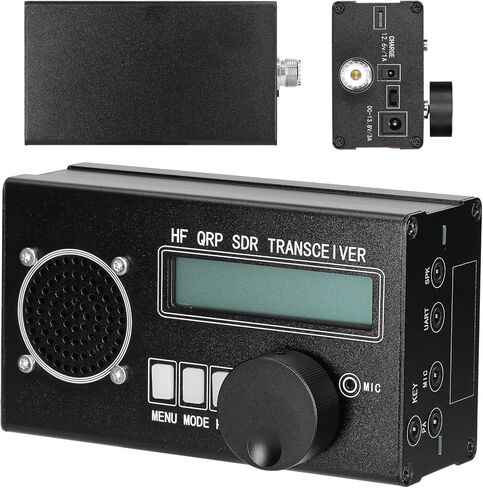

uSDR uSDX 8 Bands SDR All Mode High Frequency SSB QRP Transceiver with Power and SWR Indicator

KWD 68.500
Brand
Irfora
Category
Portable radios
Weight
0.7 kg
– 1 +

Special Features

  • 【Scientific & Reasonable Layout】: EER Class-E driven SSB transmits se. IRF series emitter tubes provide high stability. Aluminum housing, aluminum pushbuttons, and translucent silicone pushbuttons can provide durability. The QCX circuitry is simplified with 50% fewer mounting elements. Complex transformer windings and wiring are eliminated. Compact size with rich interfaces and scientific layout to ensure superior performance.

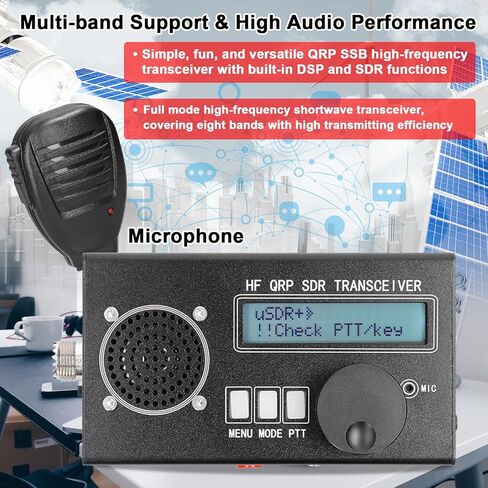

  • 【Multi-band Support & High o Performance】: Simple, fun, and versatile QRP SSB high-frequency transceiver with built-in DSP and SDR functions. Full mode high-frequency short transceiver, covering eight bands with high transmitting efficiency. Built-in speakers with significantly improved sound quality and increased s provide a more pleasing o experience. The CW tone and sidetones are adjustable.

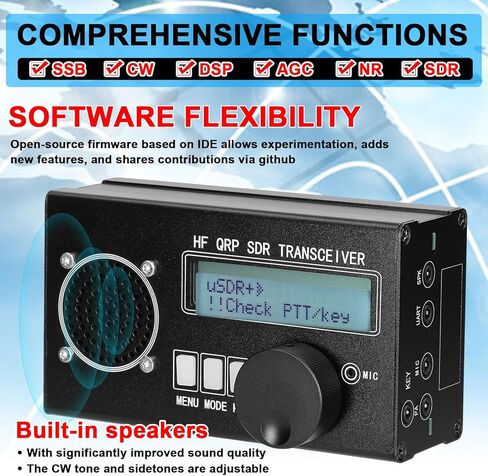

  • 【Comprehensive Functions & Software Flexibility】: Supports various communication modes, including SSB, CW, DSP, and SDR functions, such as AGC, NR, etc, to provide a professional communication experience. Open-source firmware based on IDE allows experimentation, adds new features, and shares contributions via github.

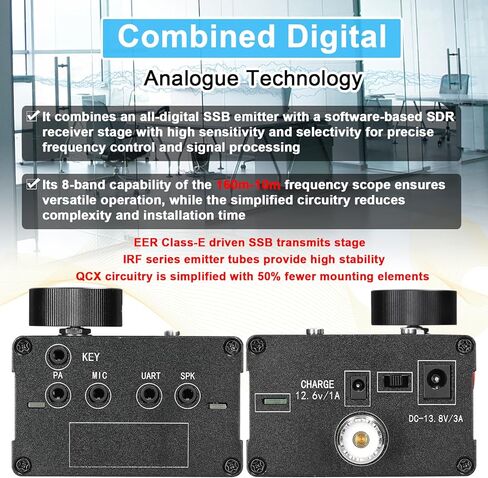

  • 【Combined Digital & Analogue Technology】: It combines an all-digital SSB emitter with a software-based SDR receiver se with high sensitivity and selectivity for precise frequency control and signal processing. Its 8-band ability of the 160m-10m frequency scope ensures versatile operation, while the simplified circuitry reduces complexity and installation time.

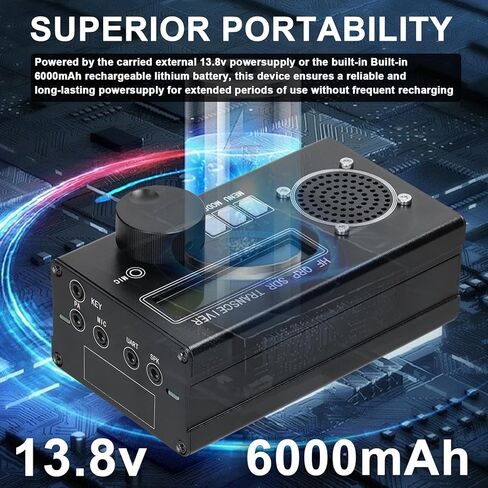

  • 【Superior Portability】: Powered by the carried external 13.8v powersupply or the built-in Built-in 6000mAh reable lithium battery, this device ensures a reliable and long-lasting powersupply for extended periods of use without frequent recharging. Perfect for various operation scenarios.

Description

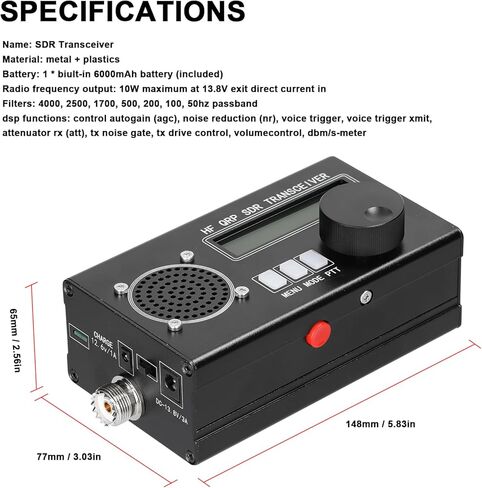

Specifications:
Name: SDR Transceiver
Material: metal + plastics
Battery: 1 * biult-in 6000mAh battery (included)
Radio frequency output: 10W maximum at 13.8V exit direct current in
Filters: 4000, 2500, 1700, 500, 200, 100, 50hz passband
dsp functions: control autogain (agc), noise reduction (nr), voice trigger, voice trigger xmit, attenuator rx (att), tx noise gate, tx drive control, control, dbm/s-meter
Ssb reverse sideband/carrierrejection transmit: better than -45dbc, imd3 (dual tone) -33dbc, receive: better than -50dbc
Multi-band support, continuously adjustable over 160m-10m frequency s (loss of 20khz performance). .99
Mds receiver noise level: -135dbm (200hz bw) at 28
Pre-receiver selectivity: steep frequency tuning -45db/ten roll-offs +/- 2khz
Blocking dynamic s: 123db at 20khz Offset, 78db at 2khz Offset

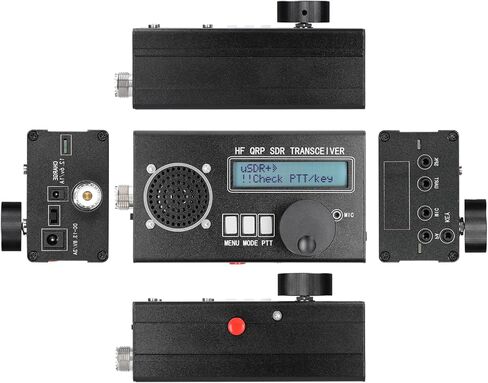

Item size: 148 * 77 * 65mm / 5.83 * 3.03 * 2.56in
Item weight: 693g / 1.53lb
Package size: 230 * 135 * 165mm / 9.06 * 5.31 * 6.50in
Package weight: 811g / 1.79lb

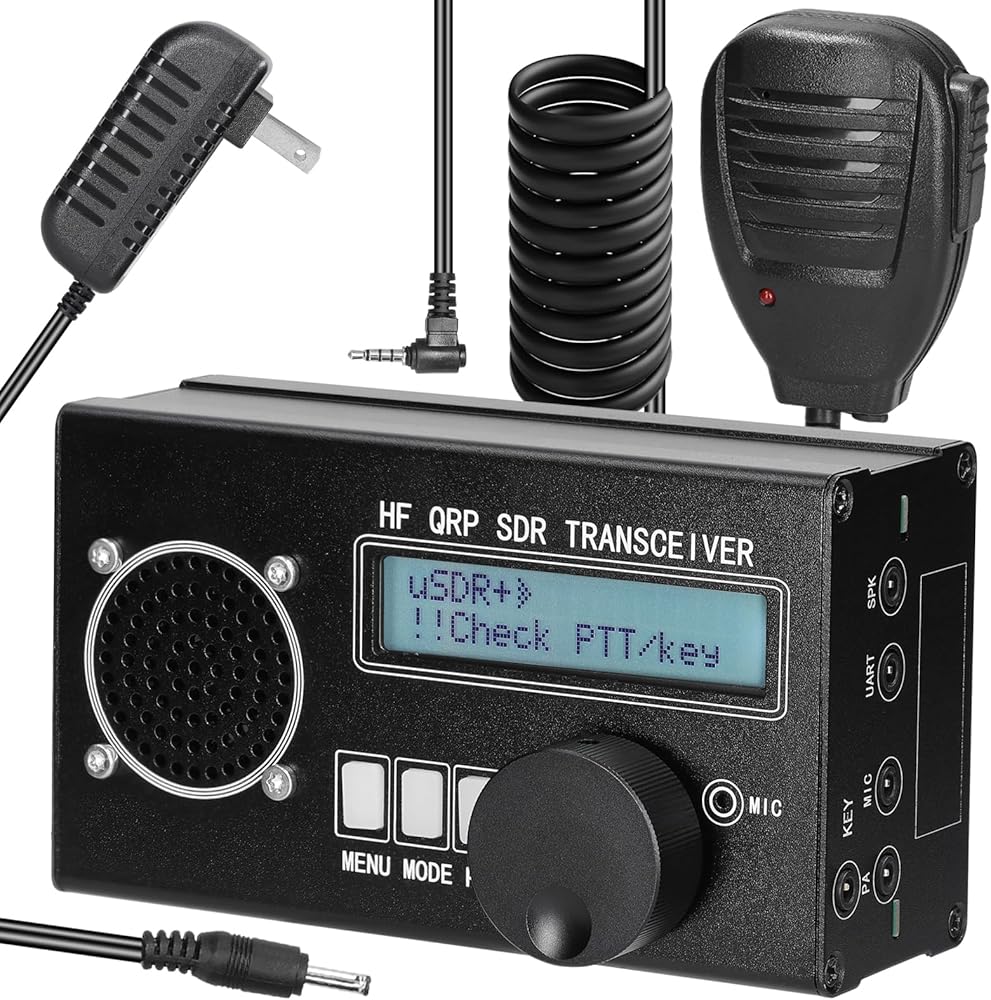

Packing List:
1 * SDR Transceiver
1 * Microphone
1 * Adapter
