[nanoVNA-h] New HW Version: V3.6. It is upgradeable as new firmware is developed. With MicroSD card port now can have the measurement data or the screenshots saved in the it at anytime. Added battery circuit management, more secure. Redesigned PCB, you can connect to mobile phone with Type C-Type C cable(original PCB needs OTG cable), see a clear HD image on your phone. Added a ABS case, which is protective and dust-proof. Disply: 2.8 inch TFT (320 x240)

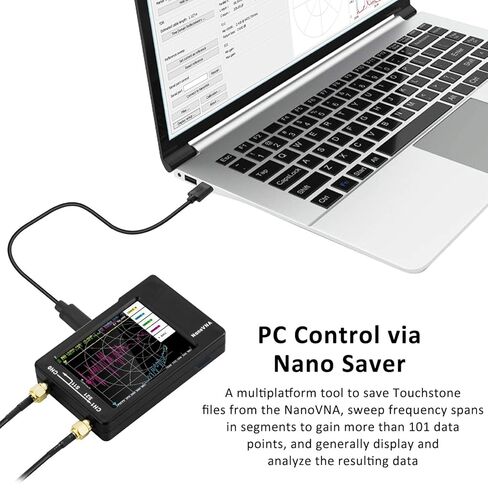

[nanoVNA-h] Designed a practical and simple control application on PC, you can download touchstone(SNP) files for radio design and simulation software. There is a PC interface that adds functionality and lets you work interactively on a bigger screen. Supports time domain analysis function (TDR). Compatible with most Android mobile phones, convenient for connecting to mobile phones. Support Windows Computer Control
[nanoVNA-h] The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics

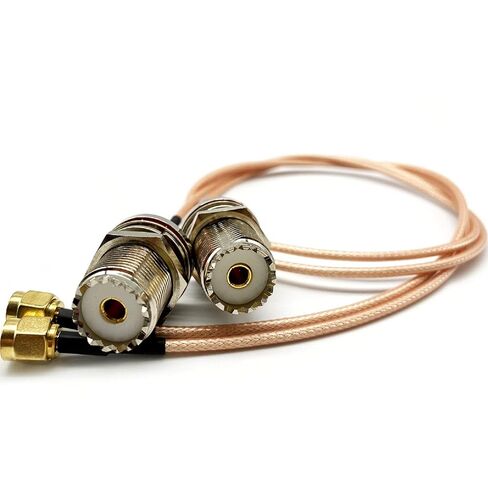

[Cable] RF Coax SMA Male to UHF Female SO-239 Extension Antenna Cable( RG316). Impedance: 50 Ohm, RG316 Copper Cable, Cable Length: 60cm/2ft
[Cable Type] RG316 coaxial copper low-loss; Adapter: SMA Male to so239 （UHF Female） Straight Adapter Applications: Amateur Radios, CB Antennas, Coaxial cable, Radio Scanner, Ham Radio Transceiver, Radio Handheld & Amateur Radio Equipment, Portable Spectrum Analyzer
Description

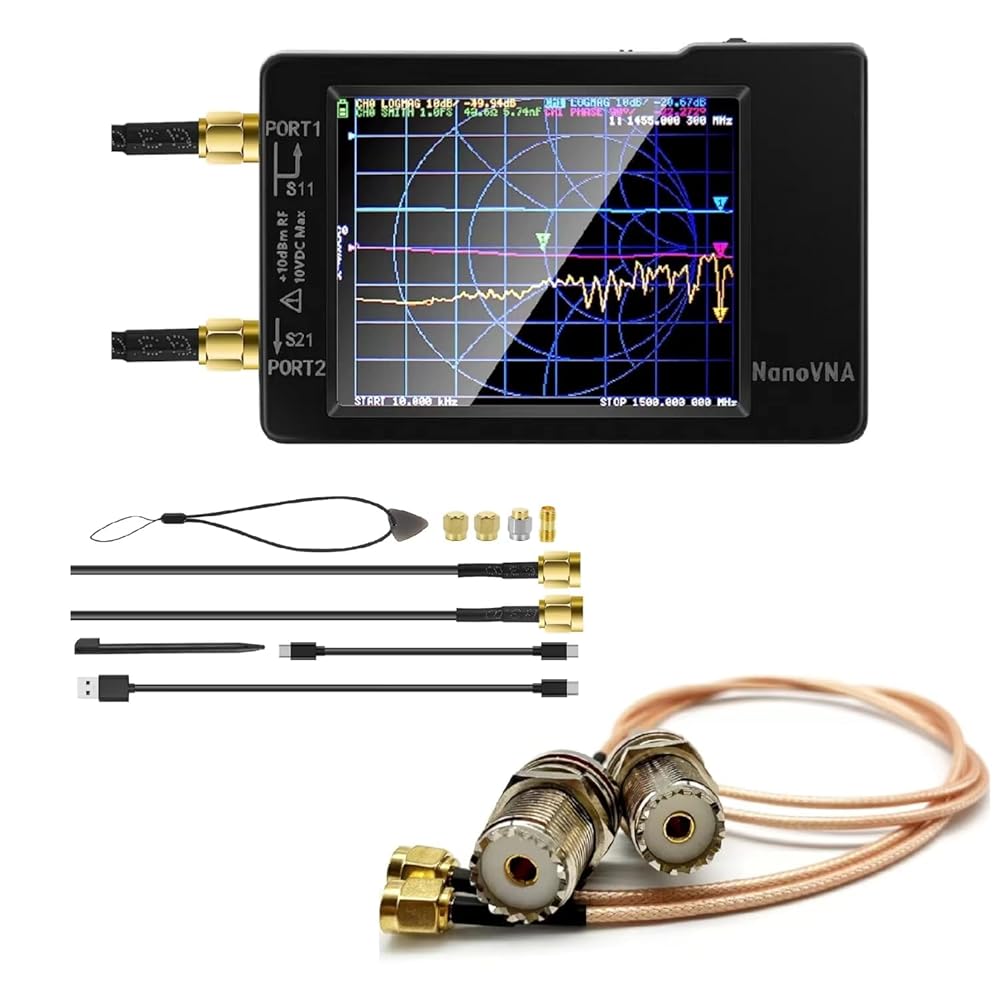

AURSINC NanoVNA Vector Network Analyzer 10KHz -1.5GHz HF VHF UHF Antenna Analyzer + Handheld Antenna Cable - RF Coax SMA Male to UHF Female SO-239 Cable
