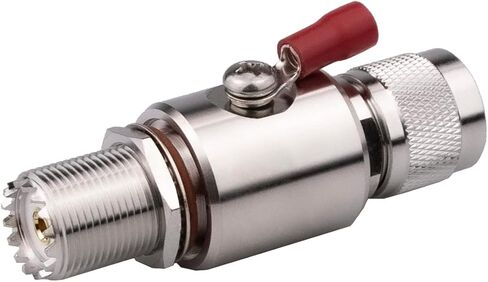

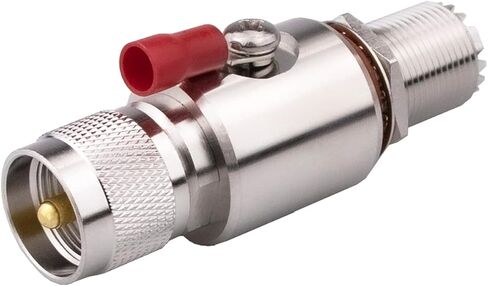

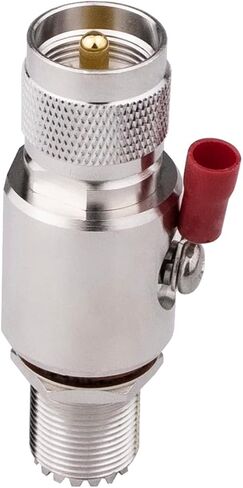

PL-259 Lightning Surge Protector UHF Lightning Arrestor PL259 Male to SO239 Female Bulkhead for CB Ham Base Antennas

KWD 6.500
Brand
Come-buy
Category
Surge Protectors
Weight
80 g
– 1 +

Special Features

  • 1.UHF Lightning Arrester,PL259(UHF male) Plug TO SO239 Socket( UHF Female) ,PL-259 Lightning surge protector for Coaxial cable. With ground screw connection for easy install

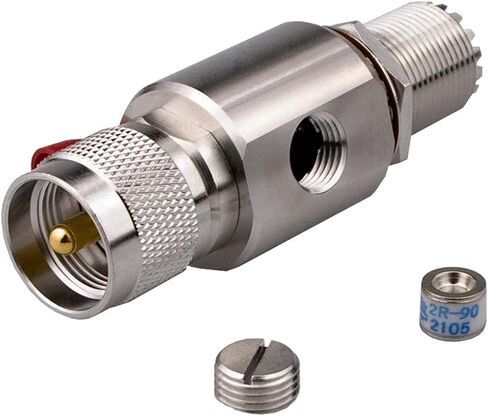

  • 2.High quality construction,reliable Wide-Band Performance from DC-1GHz, insertion loss 0.1dB and VSWR 1.2 ,Replaceable 90V Gas Tube Element with High Surge Power CapabilityHigh Surge Power Capability
  • 3. Run a piece of heavy gauge copper wire (8 or 10 gauge) from the grounding screw on the side of the arrestor to a 3 foot minimum length grounding rod driven into the ground
  • 4.A great PL259 arrestor to protect your life, protectors offer HF/VHF/UHF other frequency equipment with extremely low loss. They boast an insertion loss of less than 0.1 dB. Ideal for CB Radio, HAM Radio Gear, 2-Way Base Stations.
  • 5.UHF arresters should be installed as close as possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection

Description

Specification:
Frequency : DC-1GHz
Discharge Voltage: DC90V
Impedance: 50 ohms
VSWR:1.2
Insertion Loss: Max Power: 50W
Max surge voltage let through:200 mV
Throughput Energy: 5 nJ
Max Current Load: 10A
RoHS: Yes
Packing : UHF lightning arrestor male to female Bulkhead
