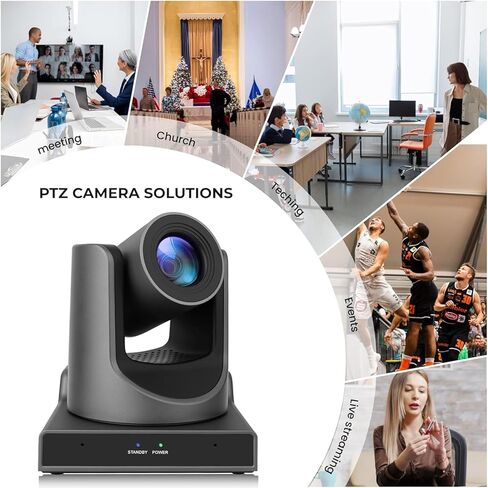

SMTAV AI Auto Tracking PTZ Camera - 20X Optical + 16X Digital Zoom, High-Speed PTZ, 3G-SDI + HDMi+USB3.0 Output, Local Record Support,PoE Support(G03684)

KWD 198
Brand
SMTAV
Category
Webcams
Weight
3.7 kg
– 1 +

Special Features

  • HDMi Camera is designed with rich ports to meet different usage environments, and supports 3G-SDI, HDMi, LAN, and USB output ports. Reduce the delay caused by the connection to ensure smooth and high-definition video. At the same time support live stream software. Easy and quick to complete the operation
  • SMTAV PTZ Camera Spported 1080P60，achieved ultra high resolution and lossless image quality by network transmission.Technique of full interface and low latency -- All video output interface achieved low latency metrics. It supported transfering by 4 interfaces at the same time and 1080P60.
  • SDI camera has undergone multiple generations of hardware upgrades, eliminating traditional technology and developing smart chips. Improved resolution and visual look and feel. The color is more realistic and the picture is clearer. smatv ptz camera provides the most professional camera for churches, conferences, education and live events
  • AI Tracking Camera--based on target's clothes, body shape, hair style and face identification, we can know the exact position of the target and achieved the goal to realize high-speed, accurate and stable auto focusing, automaticly box capturing and the function of conference intelligent

Description

Video 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50
Sensor 1/2.7 inch, CMOS, effective pixel: 2.07 m.
Scanning Mode Progressive
Lens 20x, f4.42 mm ~ 88.5 mm, F1.8 ~ F2.8.
Digital Zoom 16x
Horizontal angle of view 60.7° ~ 3.36°.
Vertical angle of view 34.1° ~ 1.89°.
Minimum illumination 0.5 Lux @ (F1.8, AGC ON).
Shutter 1/30s ~ 1/10000s.
Ceiling installation support.
Video Compression H.265/H.264/MJPEG.
Video Stream Main Stream, Sub Stream
Main Stream Resolution 1920x1080, 1280x720, 1024x576,960x540,640x480,640x360
Sub Stream Resolution 1280x720, 1024x576(50Hz),720x480(60Hz),720x408,640x360, 480x270,320x240
Video Bit Rate 32Kbps ~ 20480Kbps
Bit Rate Type Variable Rate, Fixed Rate
Frame rate 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fps
Audio Compression AAC
Audio bit rate 96Kbps, 128Kbps, 256Kbps.
Support protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
HD output 1x3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard.
Network 1xRJ45:10M/100M adaptive Ethernet ports
Audio 1-ch: 3.5 mm audio interface, line in, 1-ch: 3.5 mm audio interface, line out.
Communication 1xRS485:Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power connector JEITA (DC IN 12V)
Reset Support
Input voltage DC 12 V.
Packing list Camera*1, remote*1, power adapter*1, power cable*1, Wall mount bracket*1,Ceiling mount Bracket *1, RS232 cable*1,USB Cable*1, User manual*1
