5PCS USB 3.0 Panel Mount IP68 Waterproof Coupler 9 Pins Female to Female Double Head Adapter USB A Pass Through Connector for Outdoor Data Transfer/Charging

KWD 11.500
Brand
ANMBEST
Weight
137 g
– 1 +

Special Features

  • Usage: USB3.0 Type A Female to Female panel mount connector with IP68 waterproof kit. Provides feed-through USB connectivity for data and charging in outdoor activities, marine applications, industrial settings, and any other environments where waterproof and durable USB connectivity is needed.
  • Durability: PA66 housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.
  • Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. Guarantee the stability of the current. Transmission speed up to 5Gbps and it supports charging to your devices with USB input.

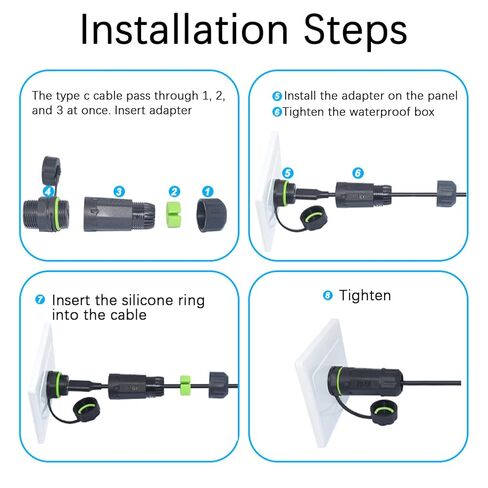

  • Easy Installation: No soldering, no installation tools, just plug the standard type-c head directly for quick installation.Plug-and-play design makes installation quick and hassle-free.

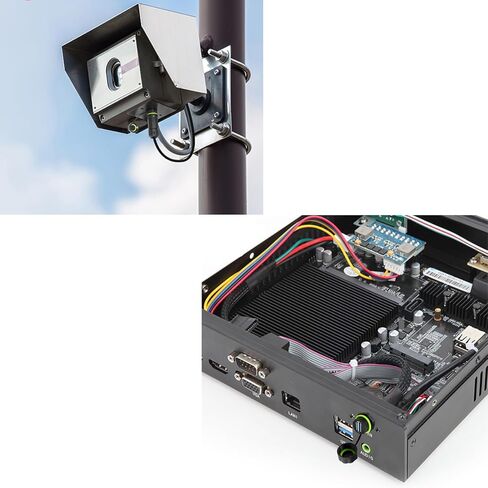

  • Widely Application: 5Gbps USB3.0 Panel Mount Waterproof Adapter Extender socket. Suitable for expanding and extending USB A ports in harsh outdoor environments, waterproof and dustproof, mounted on equipment panels, wiring racks, cabinets, desktops, walls. Used for data transmission and charging for mobile phones, tablets, digital electronic devices.

Description

The USB3.0 signal panel connector is a Female/Female Couple. Crafted from high-quality materials, this connector is designed to withstand the elements and provide long-lasting performance.Using the standards based TYPE A connection system insures compatibility with existing hardware.

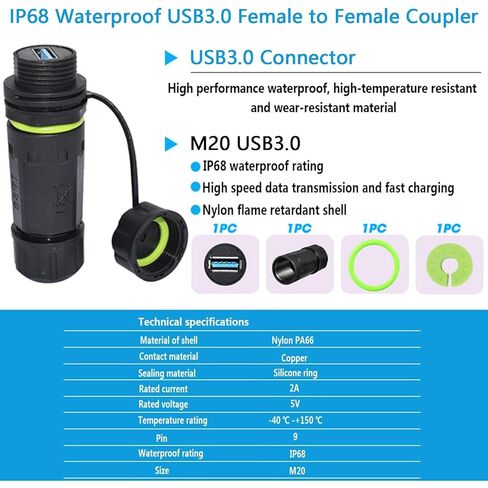

Specifications:
Number of cores: 9 PIN

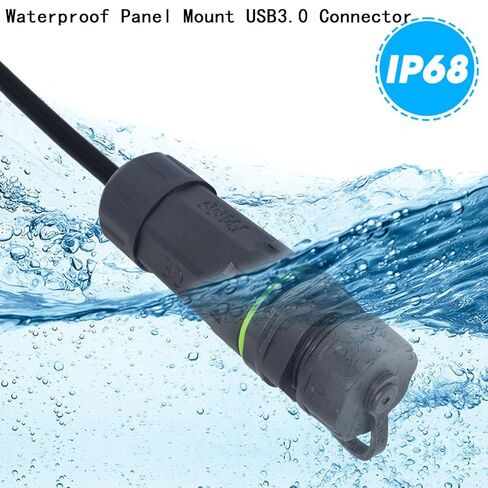

Waterproof rating: IP68
Connection type: USB3.0
Flame retardant rating: UL94V-0
Connection method: plug type

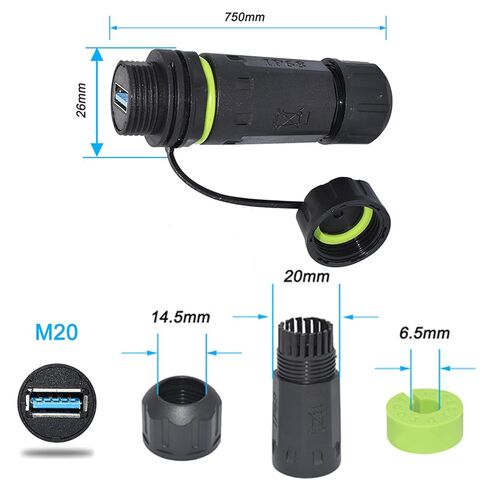

Case wall thickness: Threaded type: >2mm, through-hole type: 0.3~7mm
Mounting Hole Size: 20mm
Thread size: 20*1.5
Connector transmission classification: USB3.0
Transmission speed range: 5Gbps
Electrical parameters:
Rated current: 2A
Rated voltage: 5V
Insulation resistance: ＞500MΩ
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: ＜10mΩ

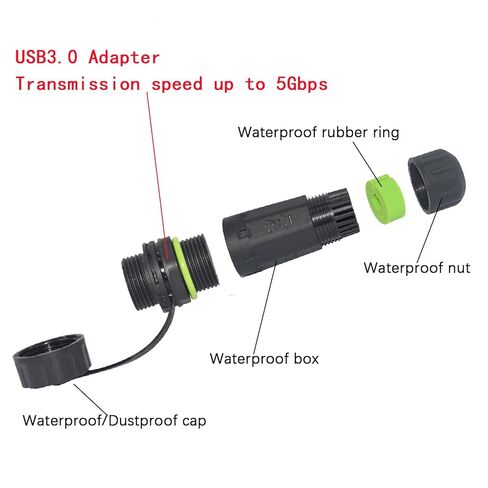

Material:
Shell: PA66
Socket contact pin: phosphor copper
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH

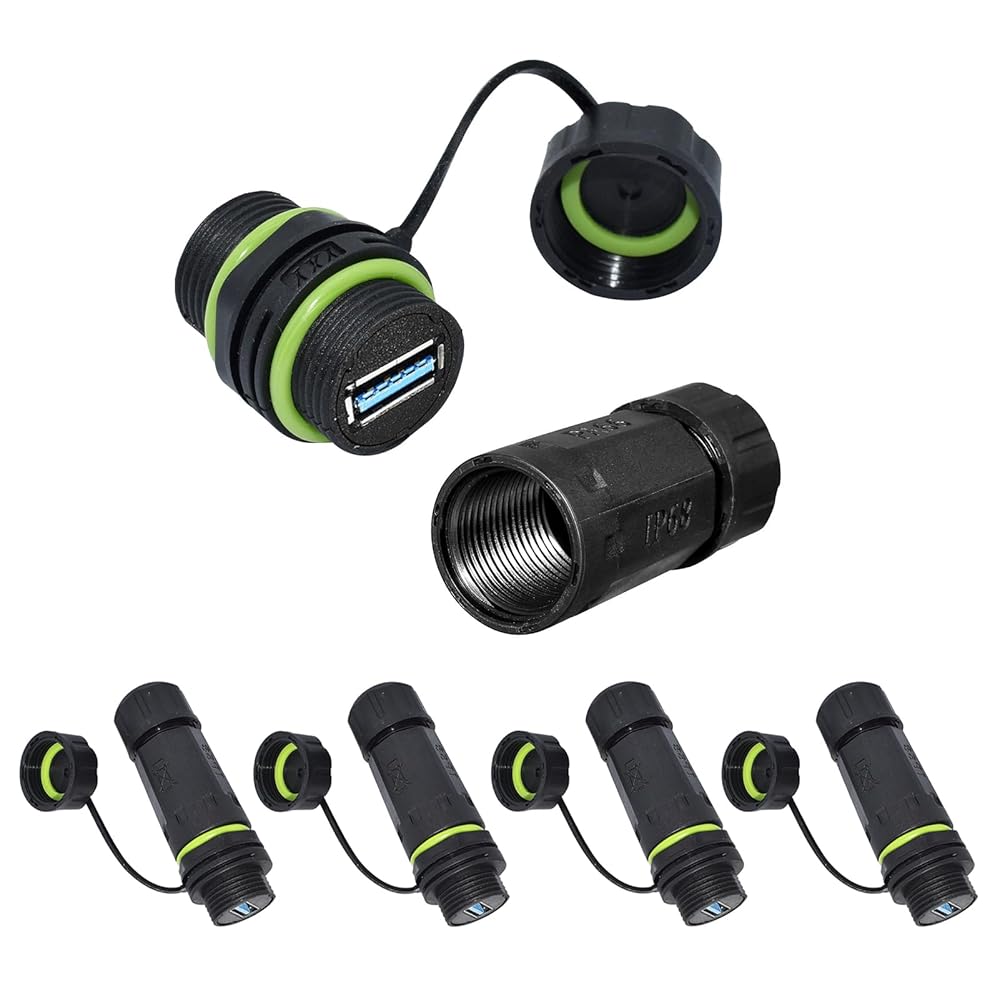

Package Included:
5x Waterproof Panel Mount USB3.0 Connector
5x Waterproof/Dust Cap Cover
