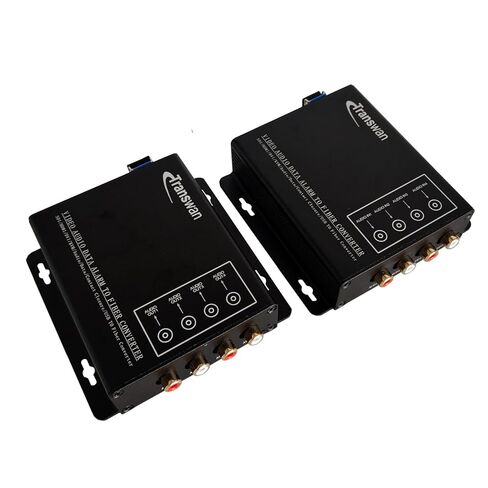

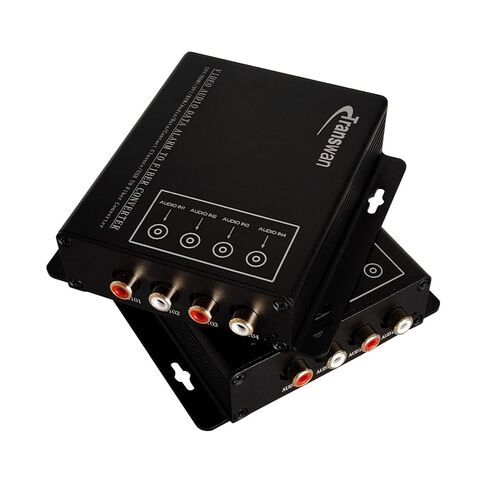

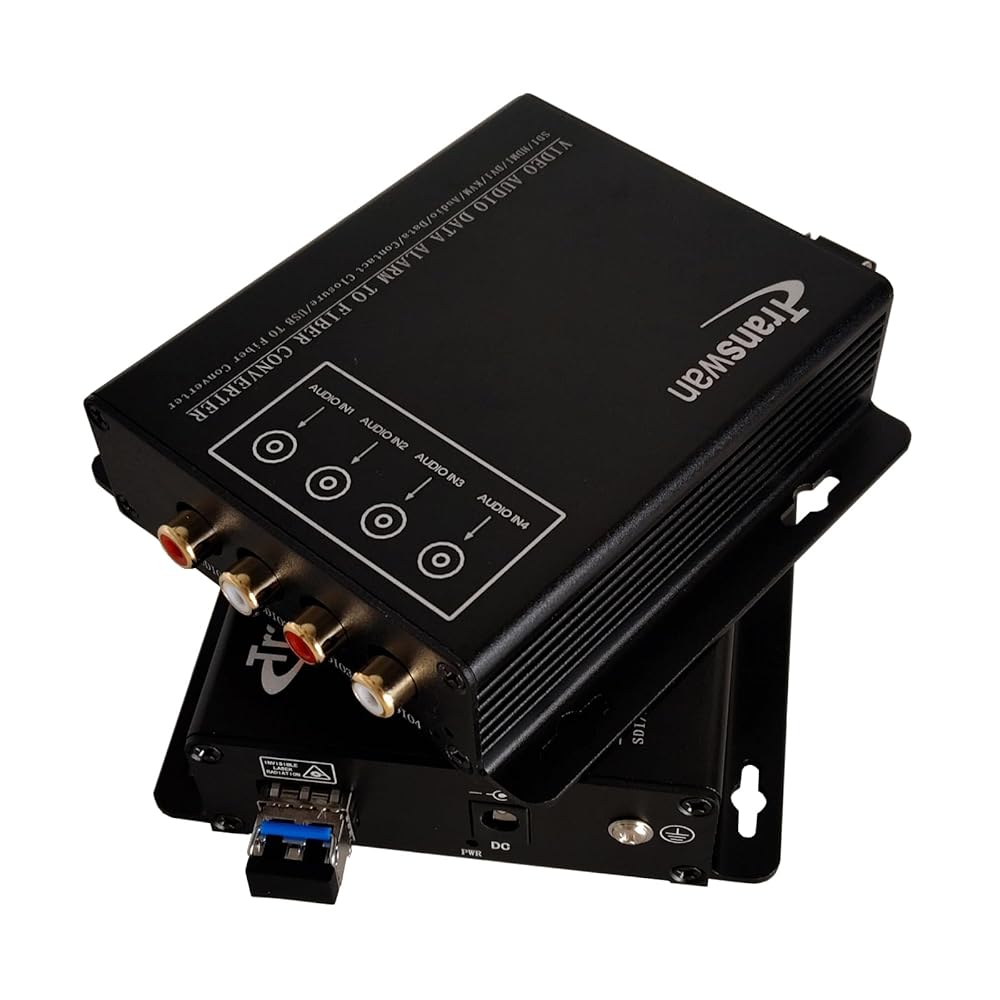

BY-RCA-324-LC support 4 channels Audio (RCA) over 1 Single Multi-mode / Single-mode optical fiber. the set includes optical transmitter and receiver.

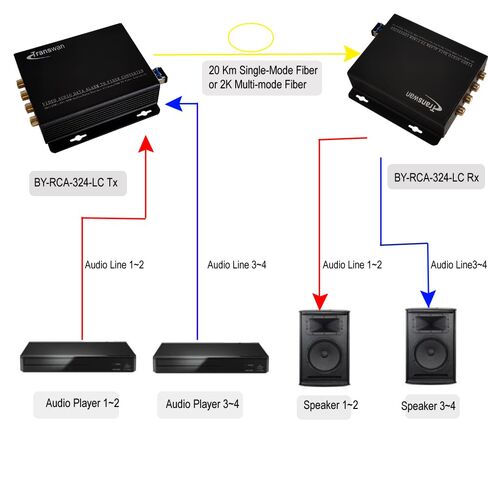

Applications: Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV etc
Audio:
Channels: 4 Ch
Input/output Impedance: 600ohm(unbalanced)
Max input/output voltage: 3.0Vp-p
Response: 10 Hz～29kHz @±3dB
SNR: > 70dB
Connector: RCA
Electrical & Mechanical:
Input Power Requirements: DC 5V@2A
Power Adapter: AC 900V~240V
Power Consumption:

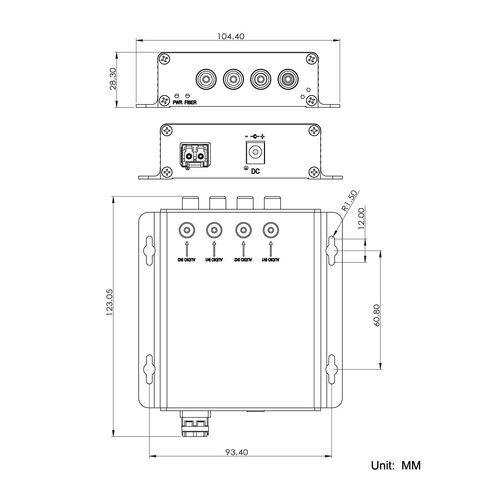

Stand-Alone Dimensions: 104 mm × 104 mm × 28 mm
Shipping Weight: (include Transmitter & Receiver ) 0.8kg
Environmental:
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours
Optical:
Wavelength: 1310nm
Supported Optical Fiber: Universal Single-mode Fiber / Multi-mode Fiber
Optical Connector: 1 x LC SFP
Max Distance: 20 Km (SMF), 2 Km (MMF)
Package:
1. 1 x transmitter with SFP module
2. 1 x receiver with SFP module.
3. 1 x Power Adapter DC 5~12V with US plug.
4. 1 x Manaul.
