Color: black

Cast photo/video/music/document from Android and iOS smartphone/Mac tablet PC to large screen TV/Projector.
Support multi-screen interactive features like DLNA/Miracast/Airpaly.
Steps for Usage:

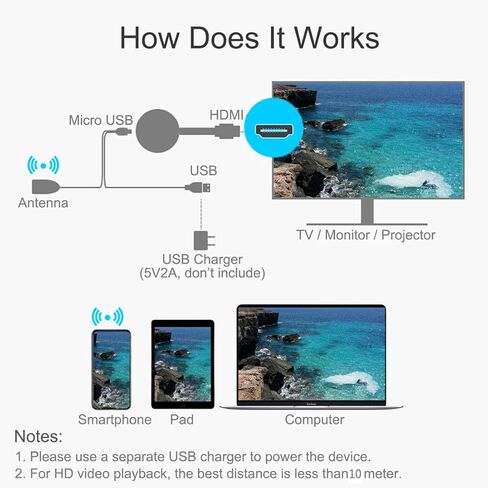

Before setting, please plug the Dongle in your TV. (Equipped with an HDMI extension cable and another USB cable for power needed)
First Way

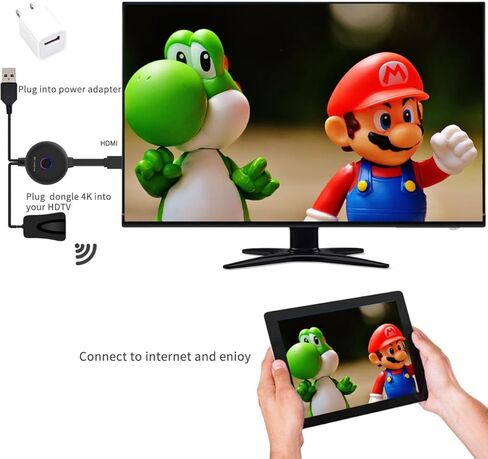

Step1: Please connect the Dongle to your TV first.
Step2: Turn on the WiFi of your smartphones or other devices and search the SSID of Dongle (SSID: Mirroring-xxxxxx, Password: 12345678)
Step3: Open the browser, visit IP address “192.168.49.1"> Choose “WiFi AP”> Select your WiFi of router, enter password> Connect.
After the Dongle connects to WiFi, please turn on the Airplay function of your device. Connect automatically.

Second Way
Step1: Find the dongle (SSID: Mirroring-xxxxxx, Password: 12345678). Select and connect.
Step2: Please turn on Miracast function directly, also called screen-sharing or screen-mirroring (Because different brands of smartphone or PC have their customized system, the name of wireless display will be different.)

After the first setting, next time when you open the function of wireless display, it will mirror automatically. No need to setup again.

Feature:
Main chip: 2-Coretex-A7 1.2GHZ
OS: Linux 3.0
SDRAM: DDR3-128M, Flash-128M
Transmission distance: Up to 15m to playback music, photo, and pdf files, up to 10m to playback video files
Network: WiFi 802.1b/g/n
Power Supply: DC 5V / 500mA

Compatible with:
* Android 4.3 model with 1GB RAM and above
* IOS 7 and above. Iphone 4+,ipad 2+, ipod 4+
* Windows 8.1 and above
* MAC 10.8 and above

Package Content:
1 X WiFi Display Receiver
1 X HDMI extension cable
1 X USB cable
1 X Manual
