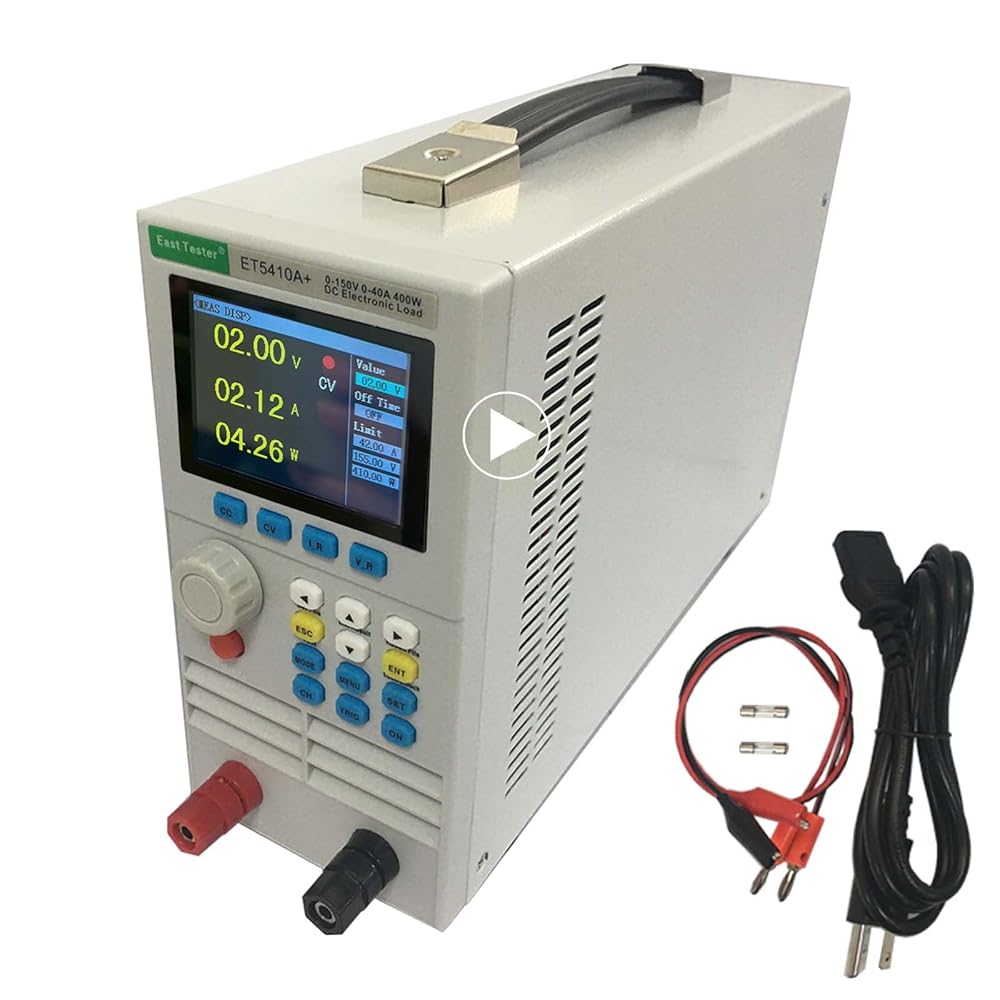

The ET5410A+ Programmable 400W DC Electronic Load Battery Load Tester is a high-performance testing solution designed for versatile applications in electronics, batteries, and power supplies.
Precise Measurement Specifications:
· Voltage Range: 0-150V, 1mV/10mV resolution, ±(0.05%+0.1%FS) accuracy
· Current Range: 0-40A, 1mA/10mA resolution, ±(0.05%+0.1%FS) accuracy
· Power Range: 400W, 10mW resolution, ±(0.1%+0.5%FS) accuracy
Key Features:

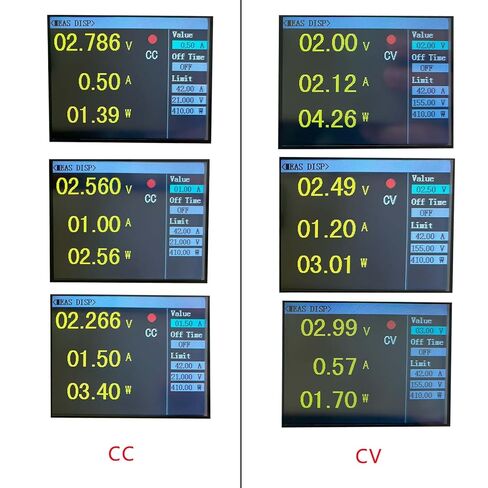

· 6 Modes of Operation: CC, CV, CR, CP, CC+CV, and CR+CV for accurate and flexible testing.
· Professional Battery Testing: Discharge mode (CC, CR) with a max discharge capacity of 999Ah for precise capacity evaluations.
· Dynamic and Scanning Tests: Assess power supply performance under varying conditions with Tran and Scan test modes.

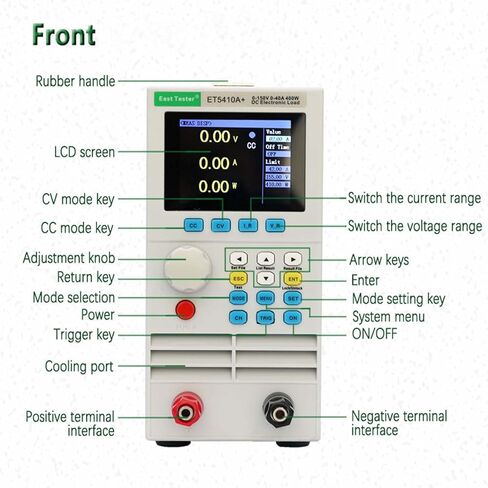

· User-Friendly Design: Rich display on a 2.8-inch TFT LCD, intuitive interface, and convenient operation with external keyboard support.
· Advanced Protection: Overcurrent, overvoltage, overpower, and over-temperature safeguards, intelligent fan speed control, and polarity reverse warning.
Ideal for production line testing, charger evaluation, switching/linear power supplies, and LED testing, the ET5410A+ ensures professional-grade precision and performance with safety and convenience.

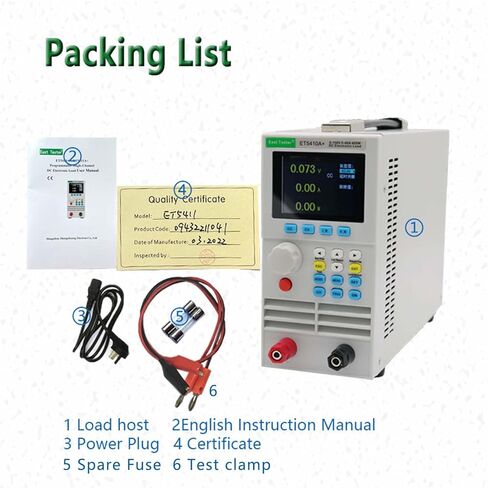

Package Includes:
· ET5410A+ Electronic Load Tester
· Test clip
· Power Cable
· Spare fuses X2
· User Manual
