Notes for Use: 1. Please make sure that your two computers or laptops have two DP output ports, one HDMI output port and one USB A output port; 2. Please make sure that two of your three monitors have a DP input port and one of them has an HDMI input port; 3. The KVM switch needs to use a cable that complies with the DP1.4 and HDMI2.1 standards and is no longer than 6 feet in length to ensure the transmission of video signals. KVM switches need to use DP1.4 and HDMI2.1 compliant cables that are no longer than 6 feet in length to ensure video signal transmission.
Product Connections:PC1 is connected to 2 DP ports and 1 HDMI port of the KVM switch PC1IN via 2 DP cables and 1 HDMI cable, and then connected to the USB3.0 port of PC1IN via a USBA cable; PC2 and PC3 are connected to PC2IN and PC3IN in the same way as PC1; The three monitors are connected to the OUTA, OUTB and OUTC ports of the KVM via DP cables and HDMI cables respectively; connect the power supply and you can use it; HDMI to DP converter cables and hubs are not available, and special note: it is not compatible with Macbook.

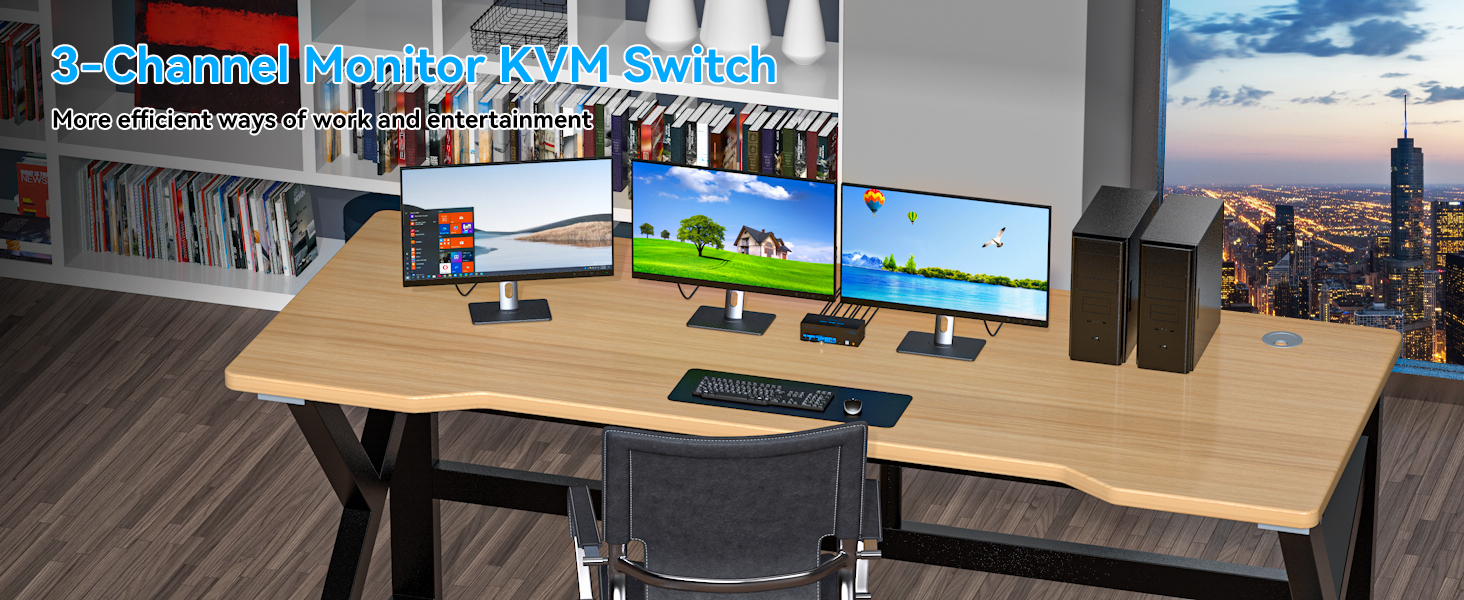

KVM Switch 3 Monitors 2 Computers:HDMI+Displayport Triple monitor KVM allows 2 PC or Laptops share 3 monitors and 1 set of keyboard, mouse, microphone and headphones(with USB-A male interface) like This eliminates the need to have separate input devices for each computer, saving space and streamlining the workflow. NOTE: Ensure that your computer has 2 DP ports + 1 HDMI port and is connected to the KVM switch with 2 DP cables and 1 HDMI cable for normal use of the 3 monitors.
HDMI 2.1+DP 1.4:The 3 monitors KVM switch meets HDMI 2.1 and DP 1.4 standards, supporting 8K@60Hz and 4K@120Hz visuals, bringing you immersive visual effects. It's also backward compatible with 4K@60Hz, 2K@144Hz, and 1080P. Note: Ensure your cables and monitors support 8K or 4K@120Hz for optimal performance. The KVM switch does not support the use of DP to HDMI or DP to DVI adapter cables.
USB 3.0 KVM Switcher:The USB 3.0 KVM switch comes with four USB 3.0 ports, offering a maximum transfer speed of 5Gbps, significantly enhancing data transfer speed. It supports the connection of USB devices such as keyboards, mice, printers, scanners, and USB drives. Additionally, it is backward compatible with USB 2.0 and USB 1.1 versions. Note: Using high-power USB devices requires support for a separate power supply, otherwise KVM may not be sufficient to drive them.

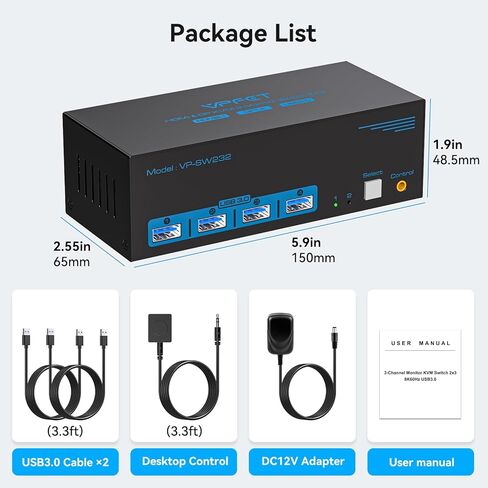

Two switching methods:Solution 1: The device's main panel features a built-in switch button, simply press it gently to switch between the two computers. Solution 2: It comes with a wired controller that allows you to hide the KVM switch and extend the controller to the desktop. With just a gentle touch, you can quickly switch. It saves you more space, keeps your desktop tidy, and improves work efficiency.
More stable work:The KVM switch is compatible with all major computer and monitor brands and supports computer systems such as Windows/XP/Linux. The 12V1A power adapter provides stronger driving force for the KVM, ensuring stable performance. Note: The after-sales service team can provide technical support and new replacement service if there is any problem within 24 months after purchase.
