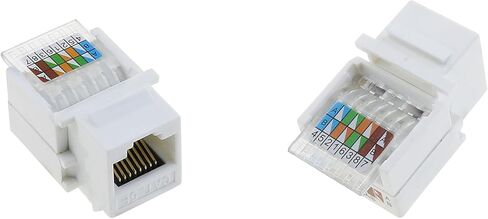

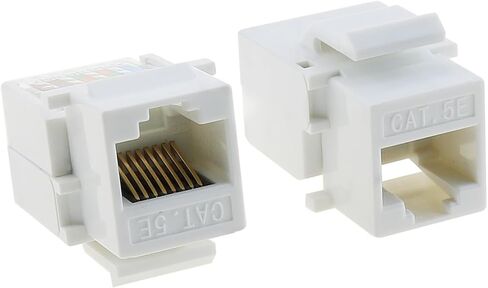

10PCS Cat5e Tool Free Keystone Jack Connector Adapters RJ45 Cable Network Information Panel

KWD 4.500
Brand
ZZHXSM
Weight
69 g
– 1 +

Special Features

  • For 5e category 5 cables, the RJ-45 modular plug is 8 bit 8 pin (8P8C) and is designed for computer networking.
  • Made of high impact transparent polycarbonate to withstand daily wear and tear.
  • The unique tool free design does not require the use of crimping tools. Simply insert the lead according to the color code and press down on the lid.

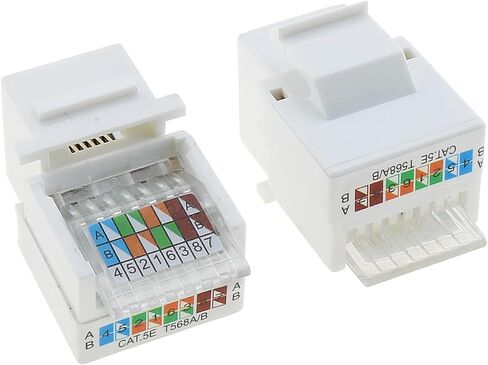

  • The 568A and 568B color wiring diagrams are integrated into the lid for easy installation.
  • Gold-plated contacts and easy to snap clamping ensure a safe and corrosion free connection. You can exclude error free data transfer.

Description

Specifications:
Dc resistance: less than 300 milliohm
Contact resistance less than 20 milliohm
Compressive strength: 1000V (AC750V) 1min no breakdown and flare
Insulation resistance: More than 1000 milliohm
IDC terminals: phosphor bronze, 22-26AWG conductor
Plugs and sockets were inserted more than 1000 times
Package contents:

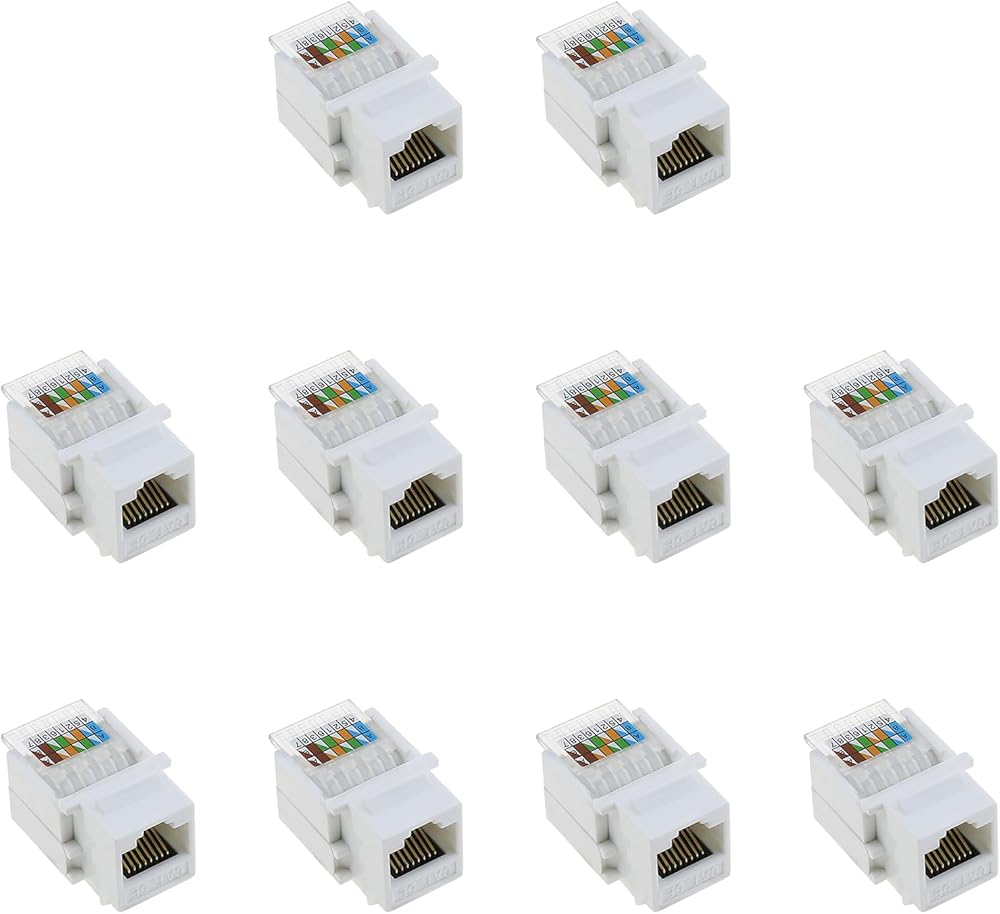

10pcs Cat5e RJ45 white Keystone jack
Installation instructions:
1.Peel off the cable sheath to expose about 3/4 inch of wire.
2.Insert two pairs of wires into the holes in the top cover.
3.Close the top cover to lock the plug firmly.
4.Remove the top cover and place the other two pairs of wires into the hole.
5.Close the top cover, firmly stuck in the plug.
Attention:
1.Please understand that the color may be different due to the different display.
2.Due to manual measurement, please allow 1 to 2mm error, please make sure you do not mind before bidding.
