PCIe to M.2 Adapter with PoE Function HAT+ (B) for Raspberry Pi 5 – Supports NVMe Drives (2230/2242/2260/2280) | IEEE 802.3af/at Power Over Ethernet | Gen2/Gen3 Mode | Bootable SSD Support

KWD 13.500
Brand
Iiunius
Weight
69 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【Pi 40PIN GPIO header】PCIe to M.2 adapter with PoE function for Raspberry Pi 5, based on the 16-pin PCIe interface. Includes a standard 40-pin GPIO header for stacking additional HATs, offering versatility in your projects.

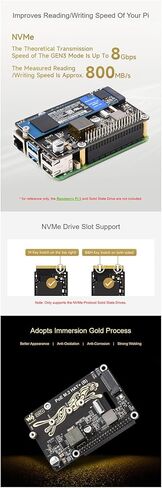

  • 【NVMe Drive Protocol Support】 Compatible with M.2 NVMe SSDs in sizes 2230, 2242, 2260, and 2280. Supports both Gen2 and Gen3 modes and allows you to boot Pi 5 directly from an M.2 SSD for faster performance.
  • 【Power Over Ethernet (PoE)】 Streamline your setup with both network connectivity and power delivered through a single Ethernet cable. Supports IEEE 802.3af/at standards for reliable power and data transmission.

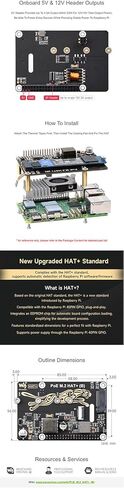

  • 【5V & 12V Power Outputs】 Onboard 5V and 12V header outputs – the 5V header provides up to 4.5A (max 25W total output) to power additional devices, ensuring stable operation of your Pi and peripherals.
  • 【Dual LED Indicators】 Easily monitor the operational status with onboard dual LED indicators. The adapter features Immersion Gold Process for durability and enhanced signal quality.

Description

Overview

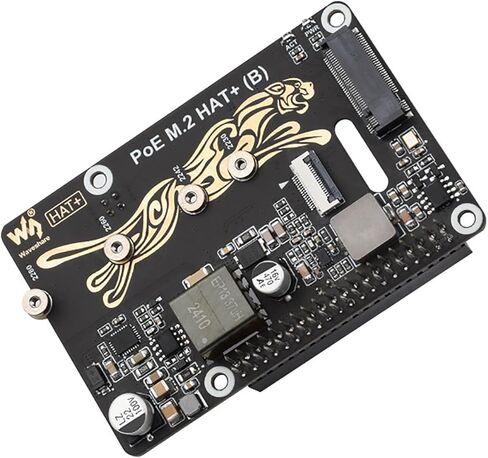

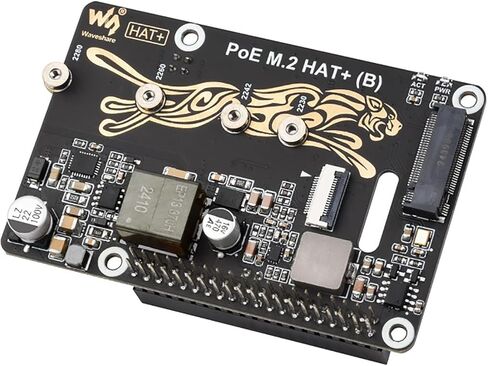

The PCIe to M.2 adapter for Raspberry Pi 5 with POE function, compatible with 2230 / 2242 / 2260 / 2280 size M.2 solid state drive. Onboard Dual LED Indicators, 5V & 12V header outputs, Pi 40PIN GPIO header, adopts Immersion Gold Process.

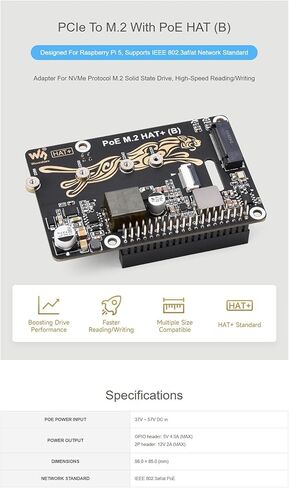

Specifications

PoE power input: 37V ~ 57V DC in
Power output: GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX)
Dimensions: 56.0 × 85.0 (mm)
Network standard: IEEE 802.3af/at PoE

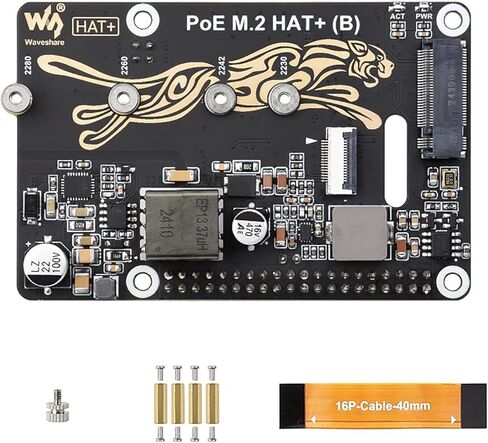

Packing List

PoE M.2 HAT+ (B) x1
16PIN PCIe cable x1
SSD mounting screw x1
Screws pack x1

Resources & Services
Wiki: www.waveshare.com/wiki/PoE_M.2_HAT+_(B)
