NOYITO Uno R3 Proto Shield Prototype Expansion Board with SYB-170 Mini Breadboard Based for UNO ProtoShield (Pack of 2)

KWD 3.500
Brand
NOYITO
Weight
64 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

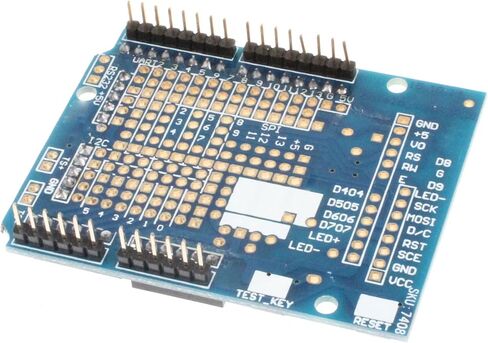

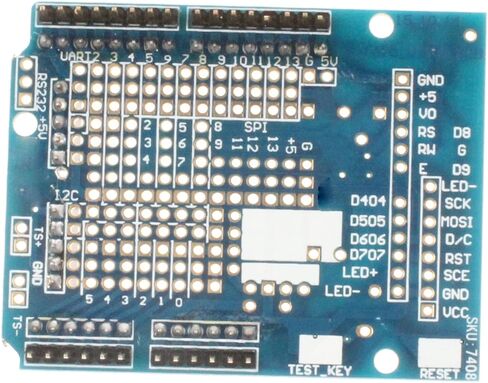

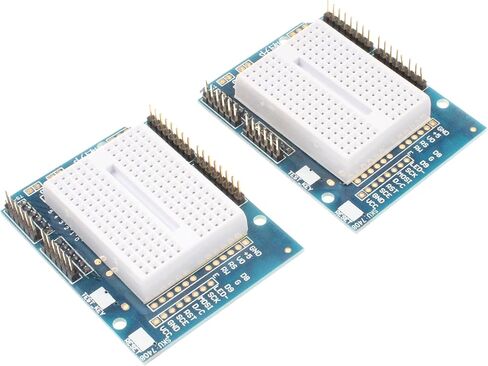

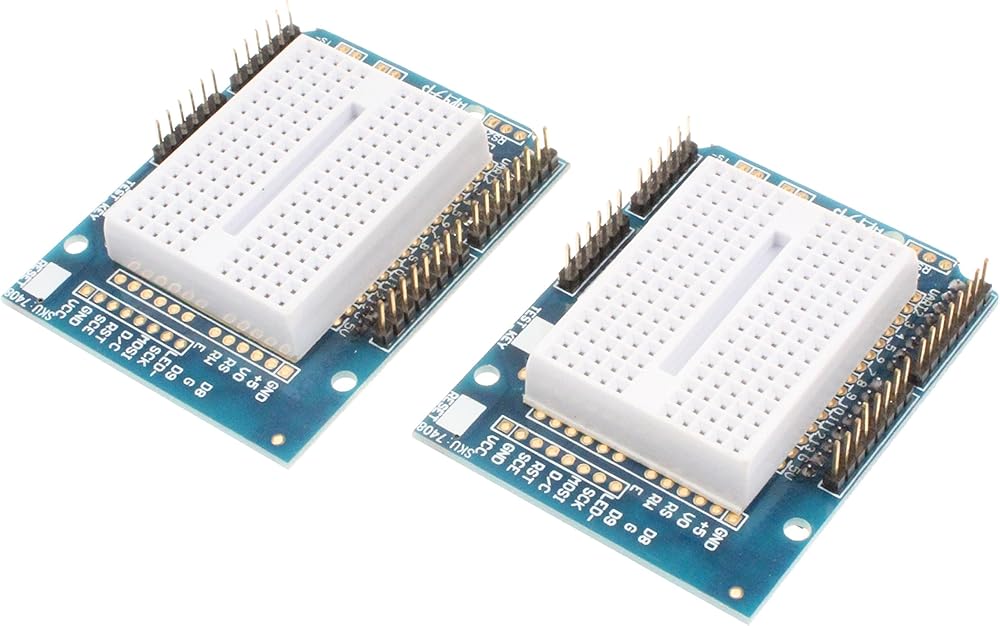

  • 2 Sets of UNO Proto Shield prototype expansion board with SYB-170 mini breadboard.SYB-170 Mini Breadboard Based Compatible with UNO R3.

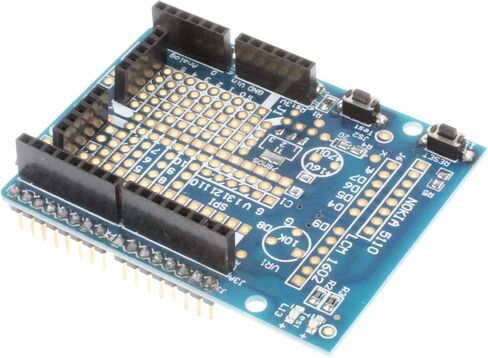

  • The ProtoShield Prototyping Board comes with two LEDs and two pushbutton circuits that are ready to use, with all pins and power supplies present.
  • Used in conjunction with the Duemilanove Proto Shield prototype expansion board, the circuit is used to build a prototype.

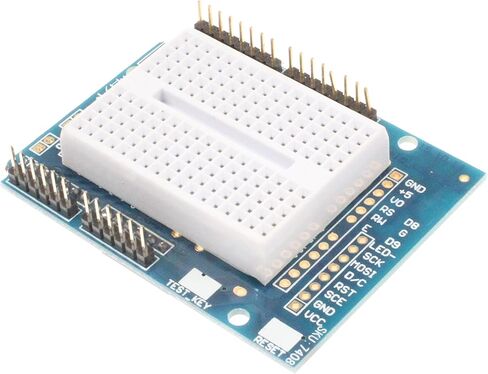

  • Components can be soldered directly on the board, or through the mini breadboard .
  • The breadboard is connected to the circuit board through a double-sided adhesive.

Description

Description Duemilanove used in conjunction with ProtoShieldprototype extension boards, used to build the circuit prototypes directly on the board welding components, mini bread plate above can also be connected to the circuit.Sided adhesive connection between the bread board and the board.
The ProtoShield prototype expansion board with two LEDs and two buttons circuit, can be used directly, pin and power have been elicited, very fit and For board with the build circuit prototype.

Features:
Small soldering area.
All pins are brought to the top level.
5V, GND, and Raw pins are exposed as well.
SOIC place for IC.
The mini breadboard has 170 tie points.
Prototype Size:7cm x 5.5cm x 2cm .
Mini breadboard size: 4.4 * 3.4 * 1cm .

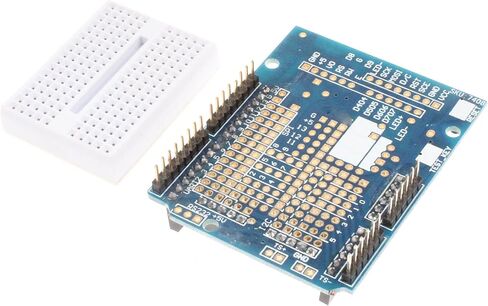

Package Included:
2pcsUno R3 Prototyping Shield Prototype Expansion Board
2pcsMini breadboard
