منظم محول الجهد الثقيل الجديد DC/DC DC 12V STEPT UP إلى DC 48V 15A 720W TRUCK TRACK TRACK TRAFFER (15A 720W)

KWD 41
ماركة
LIVISN
وزن
1.3 kg
مقاس15A 720W
– 1 +

مميزات خاصة

  • DC 12V to DC 48V 15A 720W booster truck voltage converter regulator.
  • Automatic recovery when the device returns to normal operation; High transfer efficiency of 95% max.
  • Protections: overload, overcurrent, over temperature, short circuit, overvoltage.
  • Die-cast aluminum housing, shockproof and moisture proof and has greater durability. It is widely used in buses, cmb, large trucks, engines, electricity to generate solar energy, bus and taxi display, car audio device
  • Note: It is recommended to use stable DC power for the input power supply. If using the pulsed DC power provided by the generator, filter with capacitor before connecting it to the converter. If you use the solar panel to supply directly, keep in mind that the open circuit voltage of the solar panel cannot exceed the maximum supported voltage of the converter. The supply voltage must be within the nominal voltage and always leave a certain margin.

وصف

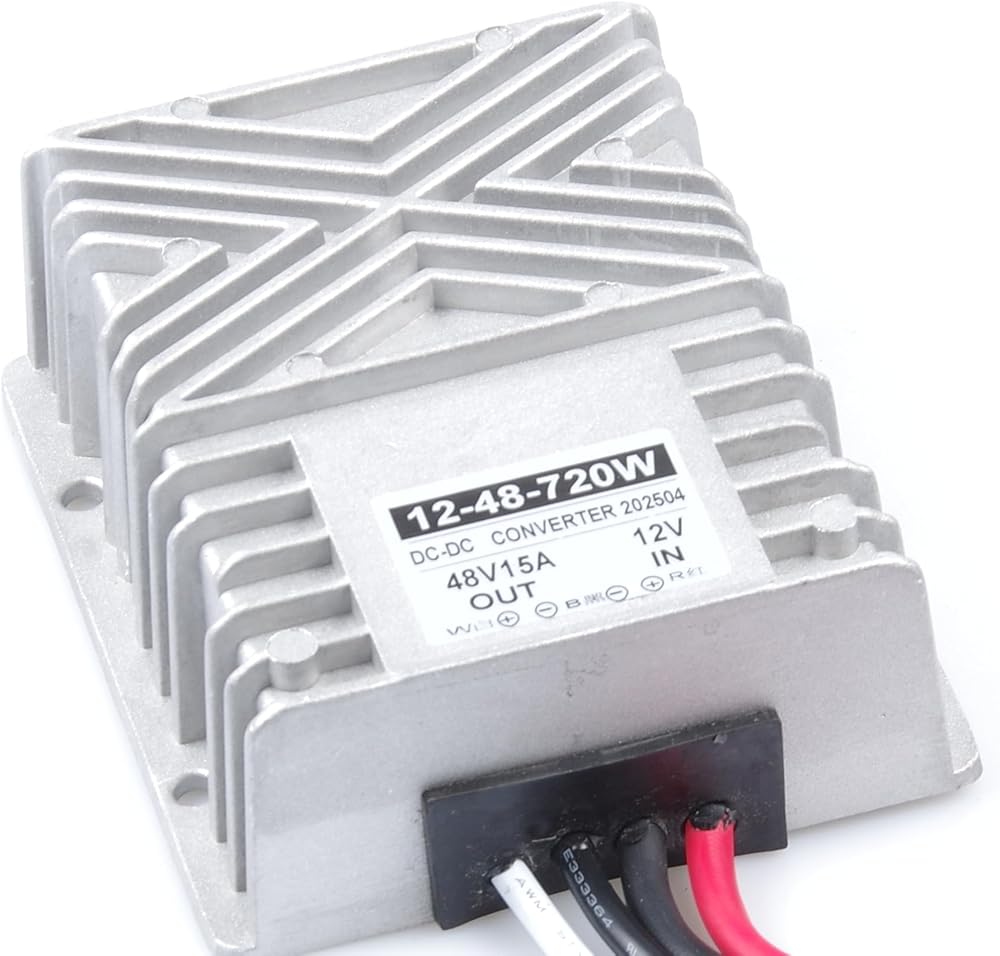

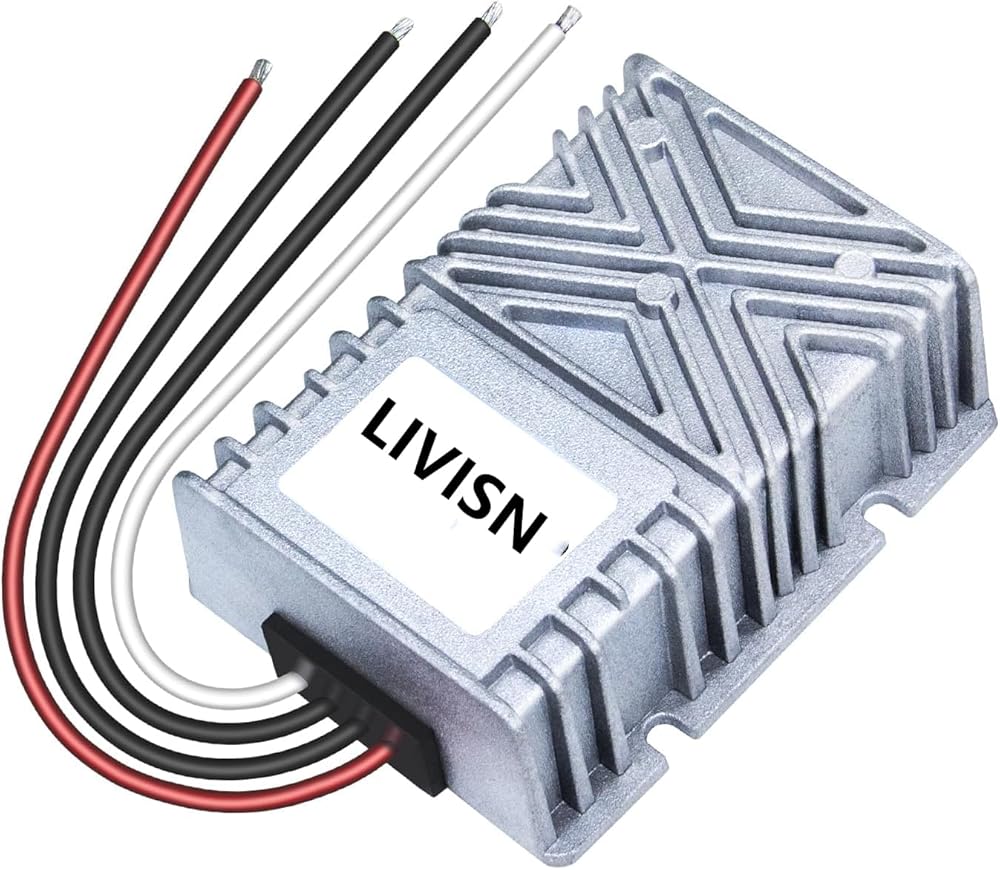

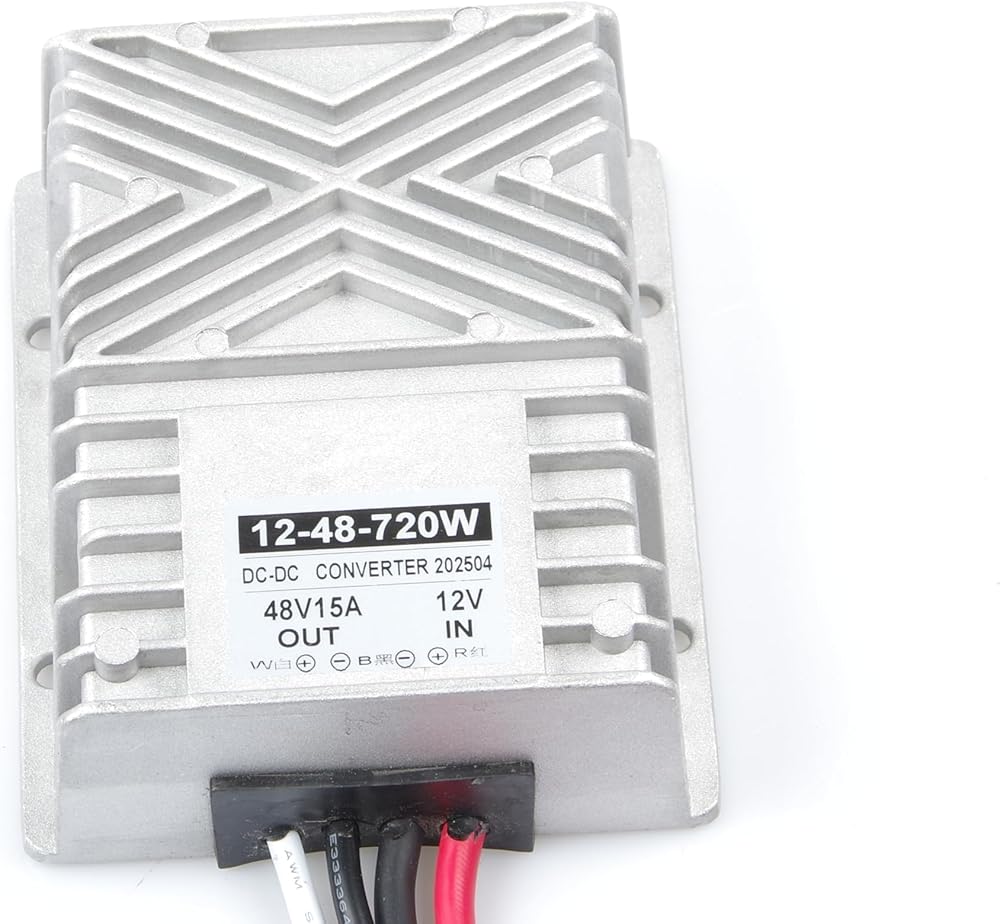

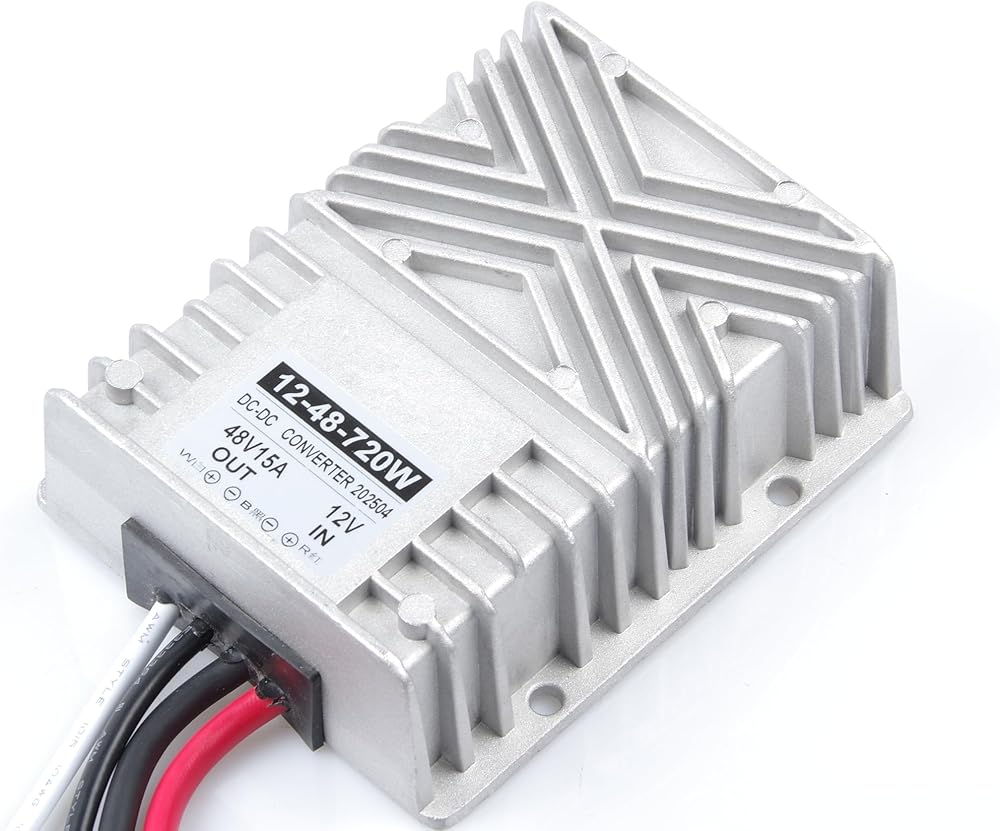

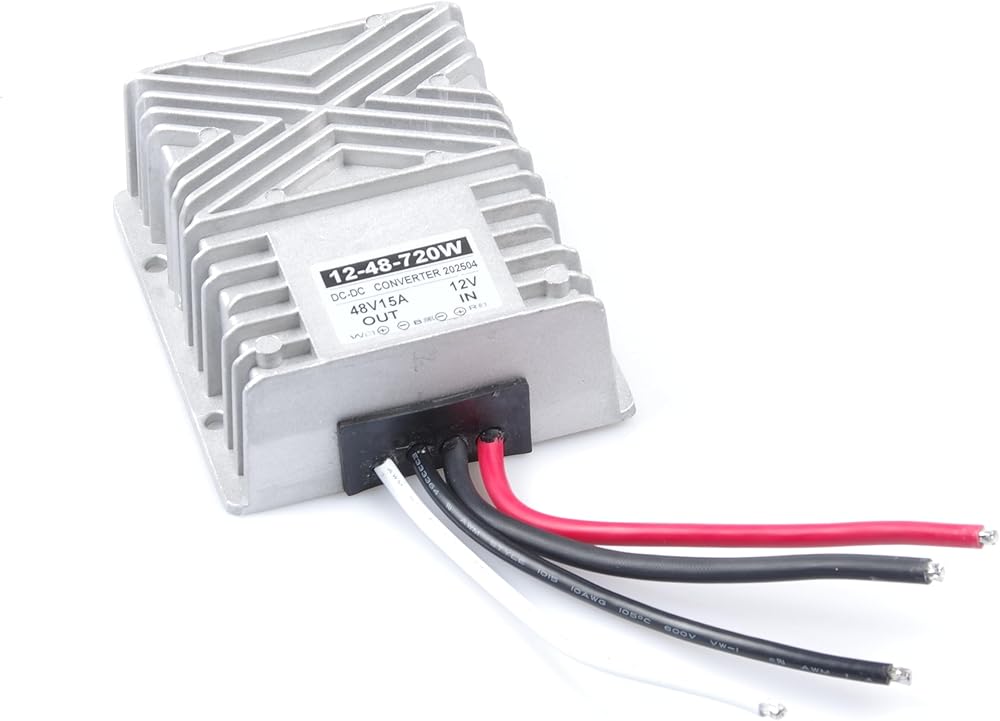

Product Name: Car Truck Voltage Converter Regulator DC 12V to DC 48V 15A 720W
Features:
1. 100% full power and stable current output, non-isolated module.

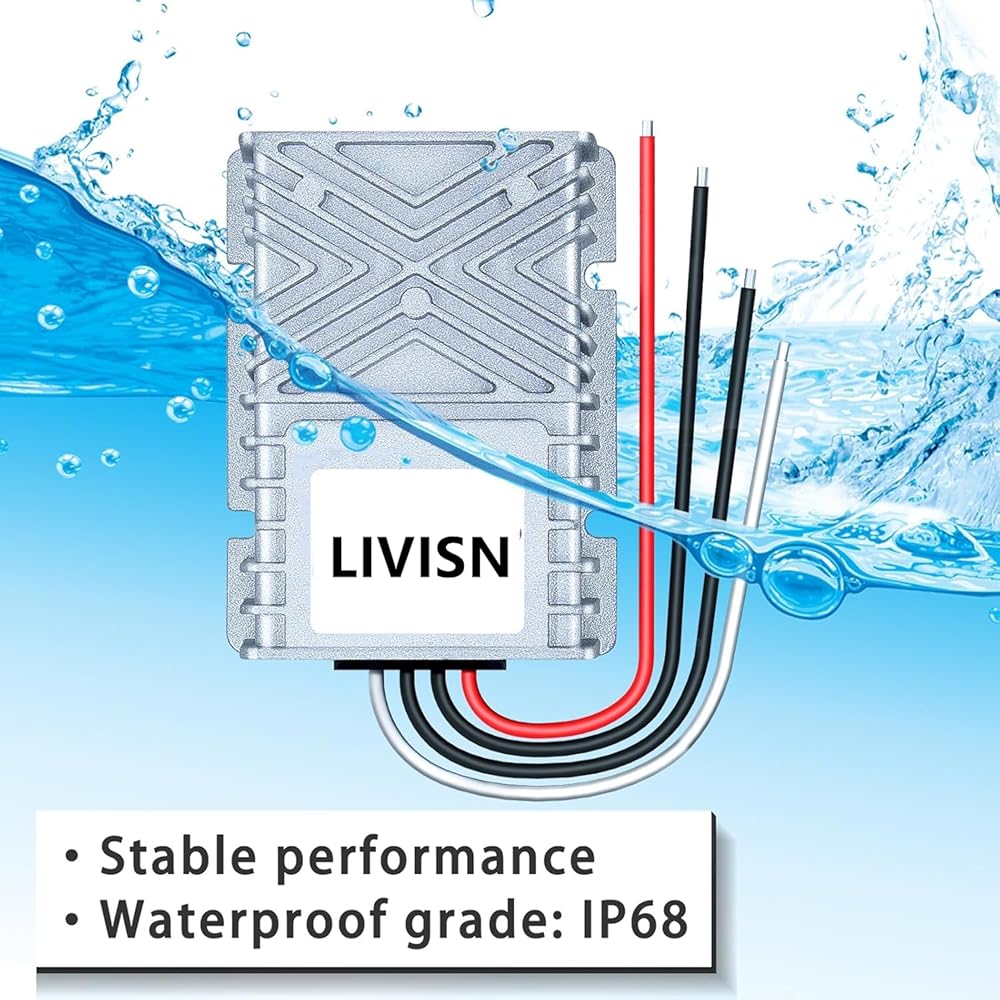

2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC12V to DC 48V step-up converter, efficiency up to 95%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.

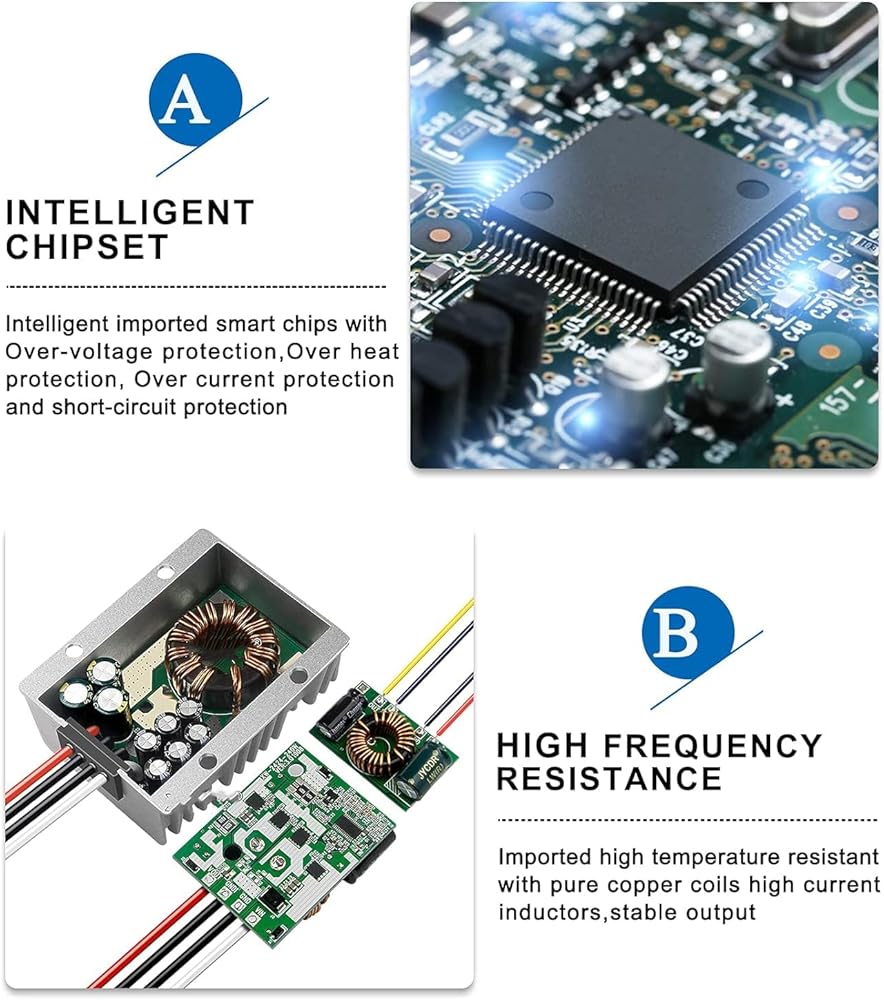

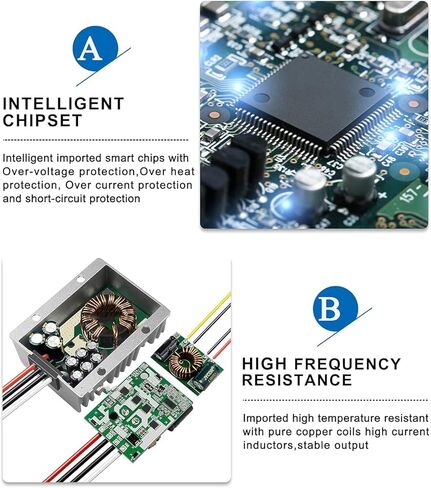

5. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.

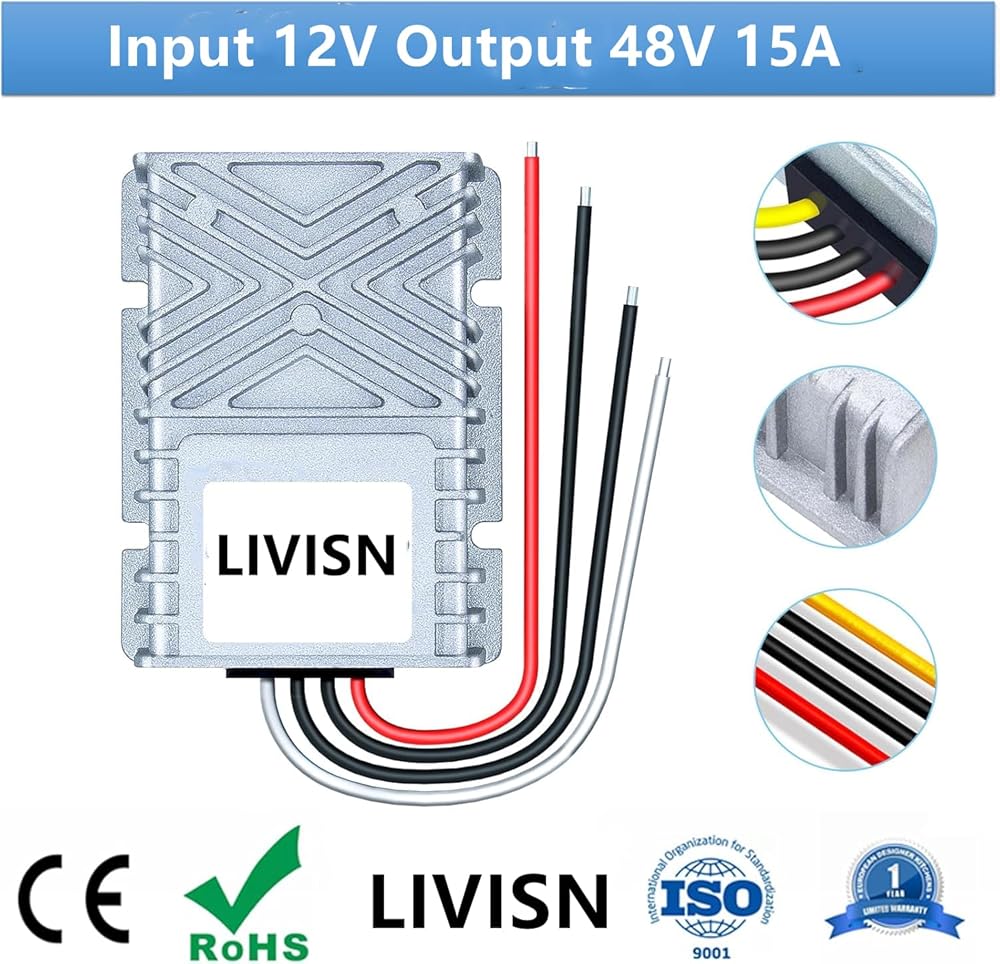

6. Certificates: CE/RoHS, 1 year , lifetime up to 100,000 hours.
Specifications:
* Input Rated Voltage: DC 12V
* Input Voltage Range: 11-25V DC
* Output voltage: DC48V 15A
* Output Rated Power: 720W
* Efficiency: 97% (half load); 95% (full load)
* Output Peak Power: 600W
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 180mV
* No-load Current: 30mA
* Total Size: 180*127*63mm(L*W*H)
* Weight: 1620g
Package included:
1 x DC 12V to DC 48V 15A Voltage Converter
