مميزات خاصة

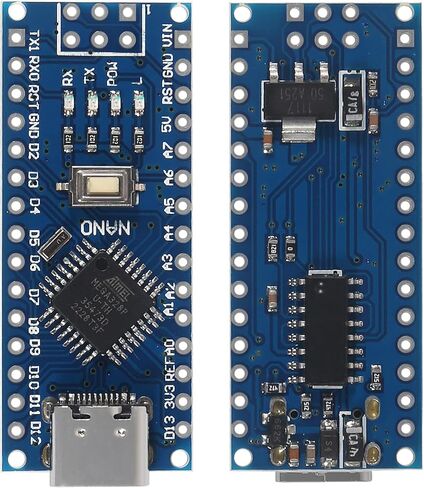

❃❃The Nano board has 14 digital I/O pins (6 of which can be used as PWM outputs), 6 analogue inputs, a 16MHz quartz oscillator, a USB C power socket, an ICSP port and a reset button.
❃❃The Nano can be powered via a USB C power connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
❃❃The Nano is using the chips ATmega328P and CH340,(USB C Port); It is designed for beginners to get started with microcontrollers. This board especially is breadboard friendly is easy to handle the connections.
❃❃The Nano board has numerous possibilities for communication with a PC or other microcontrollers and is fully compatible with the operating systems Windows, Mac and Linux.is the perfect choice for beginners and experts alike
❃❃You will get 3PCS Nano V3.0 Board with 3 Cable (USB C Port)

وصف

Specifications：
Microcontroller: ATmega328P
USB to Serial Chip: CH340
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limit): 6-20V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40 mA
Flash Memory: 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM: 2 KB (ATmega328)
EEPROM: 1 KB (ATmega328)
Clock Speed: 16 MHz
USB Connector: Type-C
Features:
CH340G Replace FT232RL
8 analog inputs ports: A0 to A7
6 PWM ports: D3, D5, D6, D9, D10, D11
Using Atmel Atmega328P-AU MCU
14 Digital input / output ports: RX, D2 to D13
1 pairs of TTL level serial transceiver ports RX
Support USB download and Power.
Support power supply by 9V battery.
Product Packaging：

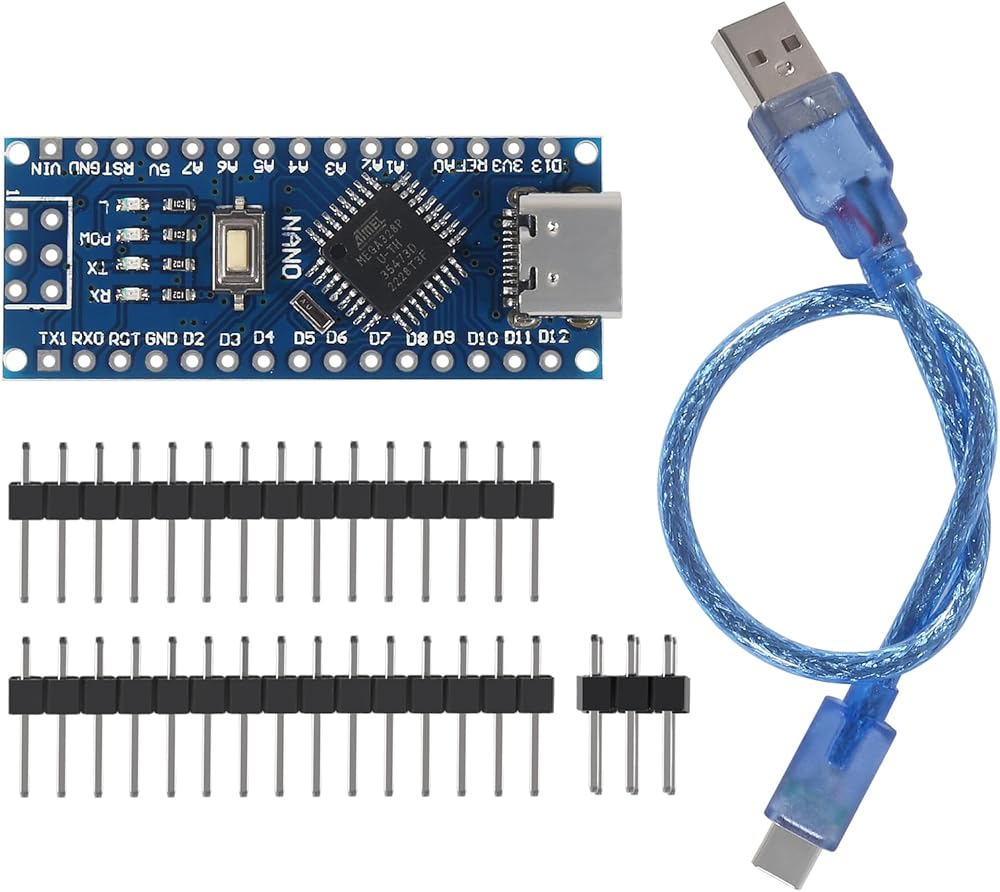

3 X Type-C Nano V3.0 Board
3X Type-C Cable
