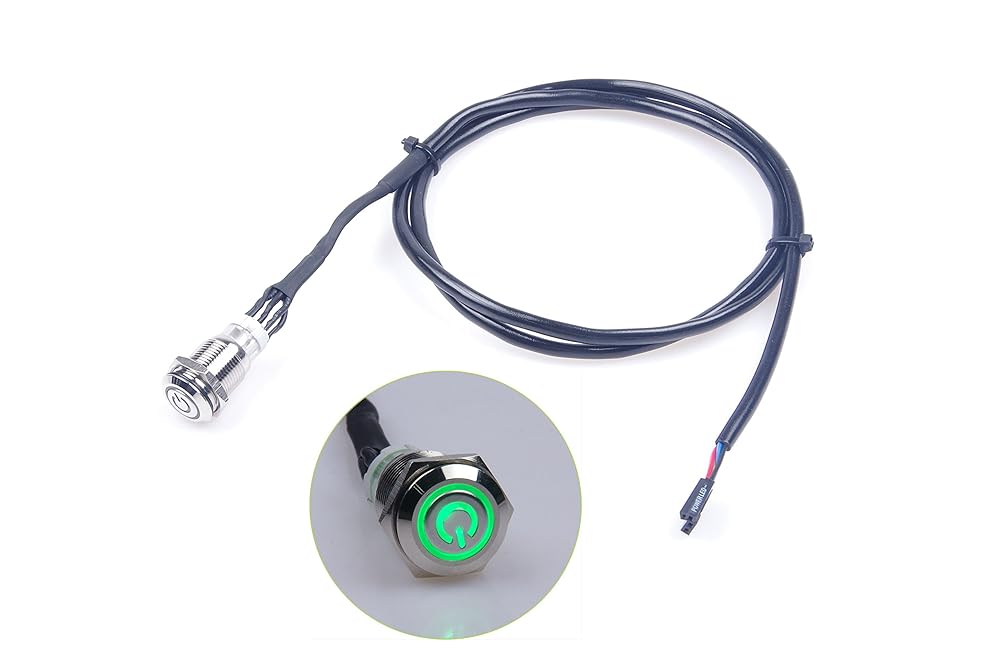

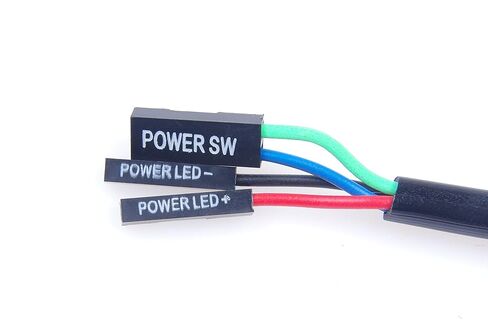

16mm Chassis Switch Metal Button Switch with 200CM 6.6FT Extension Cable Green Switch Symbol Suitable for DIY Computer Switch and Restart Button

KWD 5
Brand
KNACRO
Weight
5 g
– 1 +

Special Features

  • This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount latching switch with an illuminated Blue LED ring.
  • It is a SPDT with 16mm threading and 1mm pitch. This button is perfect for basic On/Off functions with cable length 60cm / 23.6in.
  • These latched buttons are rated up to 5A and 250V AC while the LED is rated for 3.5-5V.
  • The Latching Switch: Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and "unlatches".
  • The Latching Switch Used for: Most often latching switches are used for various additional electric equipment inside & outside the car.(Such as critical lights, chassis lamp, fog lamps, dome light)

Description

Specifications:
Head diameter: 19mm/0.75in
Button diameter:12mm /0.47in
Mounting hole size: 16mm /0.63in
Switch combination: 1NO1NC
Operation types: Latching
Switch rating: 5A/250VAC, 5A/30VDC
LED rating: 15mA, DC 3-6V
LED color : Blue / Red / Green
Head shape : High flush
Enclosure material : Stainless steel
Protection level: IP67,IK10

Note:
These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water.
The project and application you are going to be used for,don't let current go above 5 amps.Or the switch will get warm and to be burned out.
