Overview
POE M.2 HAT+ is an expansion board that combines Power over Ethernet (PoE) and PCIe to M.2 functions for Raspberry Pi 5, supporting the IEEE 802.3af/at network standard. It also supports M.2 NVME hard drives of 2230 and 2242 sizes, and SSD booting of Raspberry Pi.

Feature
--NVMe Drive Slot support, only supports the NVMe Protocol Solid State Drives
--Based on 16PIN PCIe interface of Raspberry Pi 5, suitable for Raspberry Pi 5 (not suitable for PI4B and PI3B), connecting to PI5 via 16PIN cable
--Standard Rasp Pi 40PIN GPIO stackable header, allows connecting other HATs
--NVMe Drive Protocol Support, compatible with 2230/2242 size M.2 Solid State Drive
--Supports Gen2 and Gen3 modes, supports booting PI5 from Solid State Drive

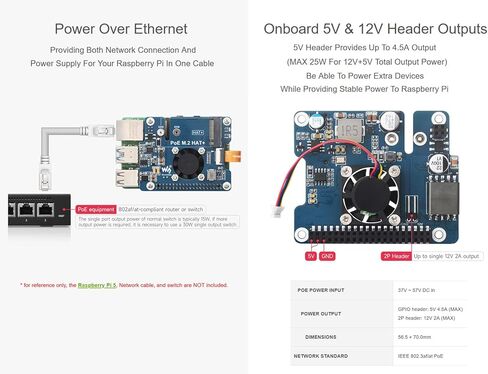

--Power Over Ethernet, providing both network connection and power supply for Raspberry Pi in one cable
--Onboard 5V & 12V header outputs, 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power) be able to power extra devices while providing stable power to Raspberry Pi

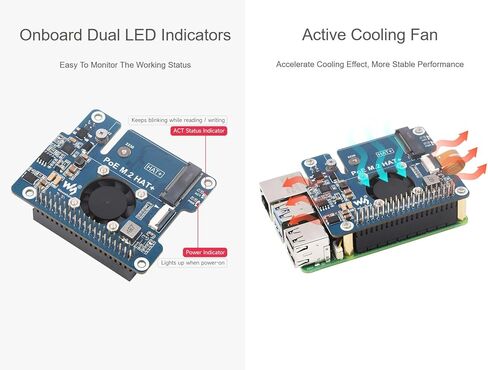

--Active Cooling fan, Accelerate Cooling Effect, More Stable Performance
--Onboard Dual LED Indicators, Easy to monitor the Working Status

POE Specifications
PoE power input: 37V ~ 57V DC in
Power output
GPIO header: 5V 4.5A (MAX)
2P header: 12V 2A (MAX)

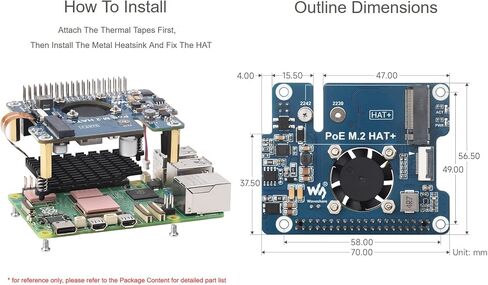

Dimensions: 56.5 × 70.0mm
Network standard: IEEE 802.3af/at PoE

Package Content
PoE M.2 HAT+ x1
Metal heatsink x1
16P-Cable-40mm x1
Thermal tape (3PCS) x1
Screws pack x1
NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
