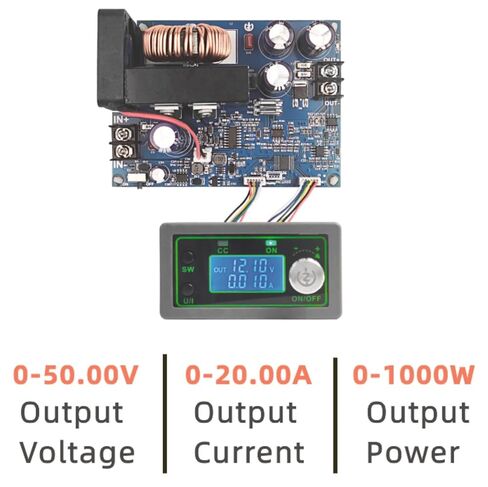

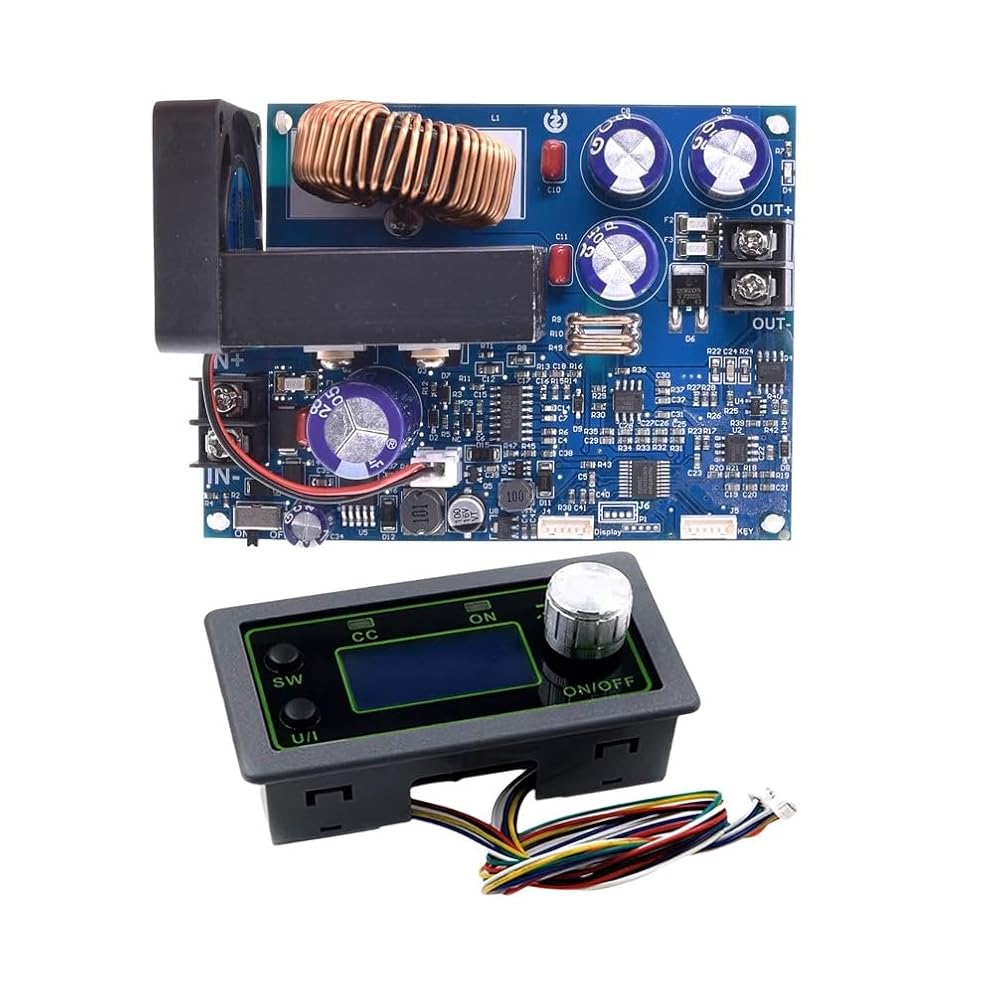

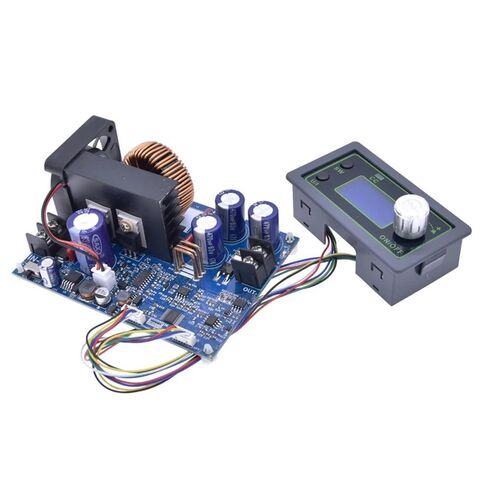

CNC DC to DC Buck Converter, 1000W 20A 50V Adjustable Power Supply Module, 6.0-55.00V to 0.0-50.00V Step Down DC Voltage Regulator, with LCD Display Meter

KWD 10.500
Brand
KZU
Weight
241 g
– 1 +

Special Features

  • High Efficiency: Buck converter utilizes synchronous rectification technology to achieve over 90% conversion efficiency

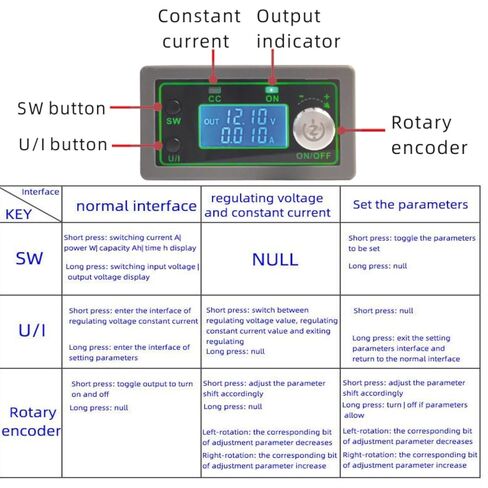

  • Precise Digital Control: Voltage regulator features digital controls for accurate and quick adjustments of output voltage (0 to 50.00V) and current (0 to 20.00A)

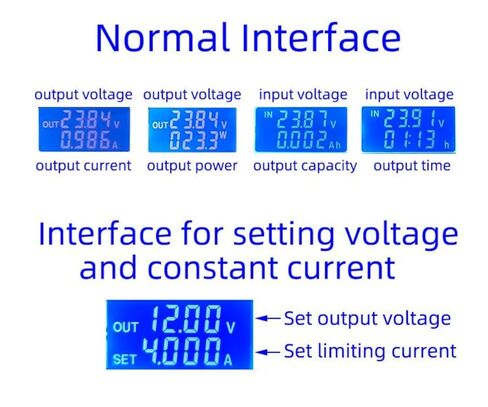

  • Comprehensive LCD Display: LCD screen shows input/output voltage, output current, power, capacity, and time for easy monitoring
  • Reverse Current Protection: Output terminal is safeguarded against reverse current to ensure durability and safety
  • Configurable Default Settings: DC buck converter allows users to set module defaults to either be enabled or disabled based on their needs

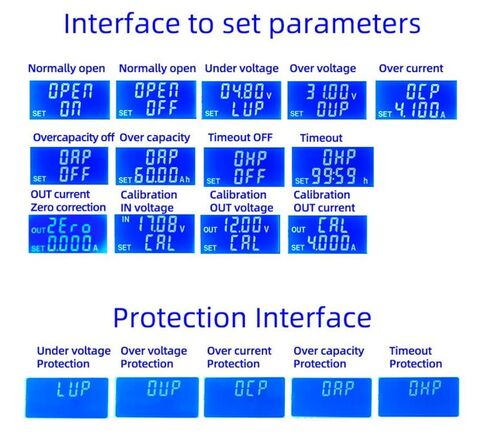

  • Advanced Protection Mechanisms: DC voltage regulator includes multiple software protection mechanisms with adjustable thresholds that automatically shut off the output if parameters exceed limits

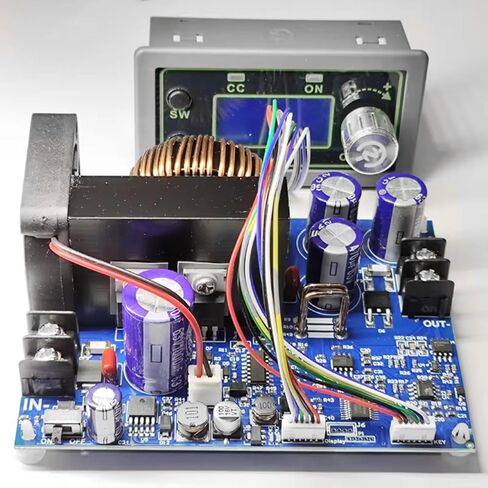

  • Enhanced Cooling: DC-DC buck converter equipped with an enlarged heat sink and fan for effective heat dissipation
  • Note: This buck converter module is designed for step-down voltage only and cannot boost voltage. It requires a minimum input voltage of 14V to achieve an output of 12V, with a maximum input voltage of 55V. Ensure only DC input is used, as AC input is not compatible

Description

SPECIFICATION
Input Voltage: 6.0V-55.00V
Output Voltage: 0.0-50.00V
Output Current: 0.0-20.00A
Output Power: 0-1000W
Output voltage accuracy: ±(0.3%+5 digits)
Typical Output Ripple: 150mv VPP
Capacity measurement range: 0-999.9AH
Input voltage resolution: 0.01V
Output voltage resolution: 0.01V
Output current resolution: 0.01A
Input voltage accuracy: ±(1%+5 digits)
Output current accuracy: ±(0.5%+5 digits)
Operating temperature: -10°C to 40°C
Step-down working mode: dropout > 0.05% + 1V
Soft start: Yes
Input undervoltage protection: adjustable from 5.8V to 50V, default 5.8V
Output overvoltage protection: 0-51V, default 51V
Output overcurrent protection: 0-20.10A, default 20.10A
Timeout protection: adjustable from 0-100 hours, default disabled
Overcapacity protection: adjustable from 0 to 999.9AH, default disabled
PACKAGE
1 x Buck Converter
1 x Meter
