Product parameters:
Input voltage: 2.5V~15V
Output voltage: 3.3V
Output current: 0.6A
Conversion efficiency: 75%
Output ripple: Output accuracy: ± 0.1V
Working temperature: -20 ° C~+85 ° C
Relative humidity: 20-90%

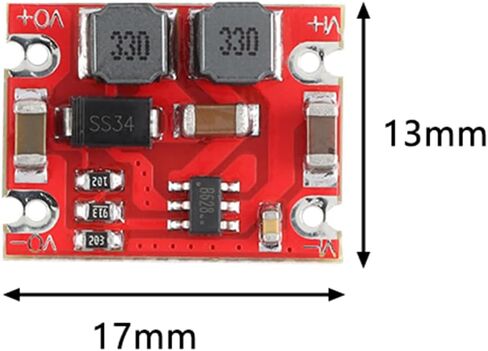

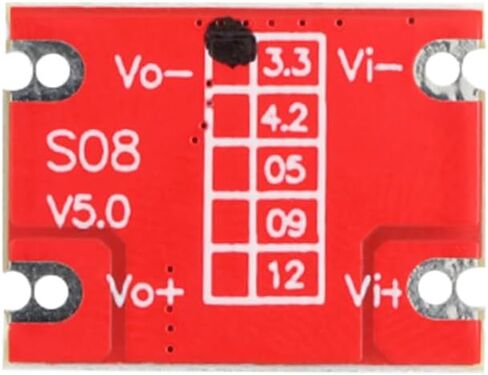

pin definition
Vo+: positive output power supply
Vo-: negative output power supply, usually GND
Vi+: positive input power supply, input range 2.5-15W
Vi-: Negative input power supply, generally GND
Module Features.

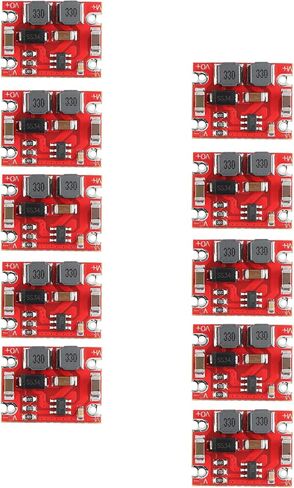

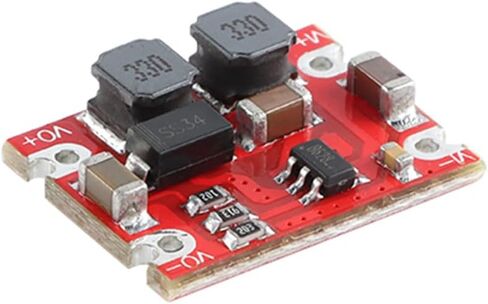

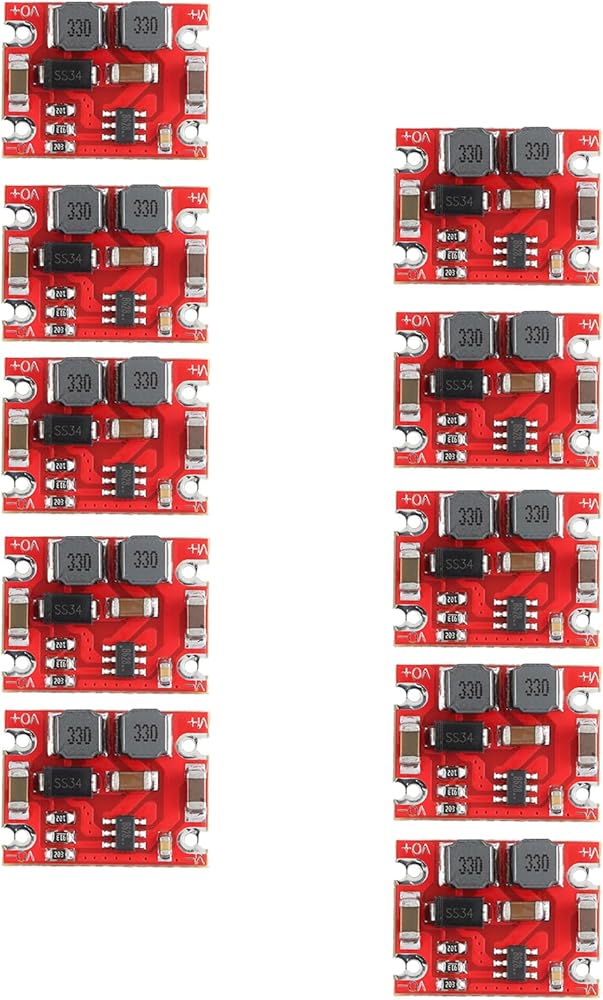

S08 adopts wide voltage and low power consumption program, automatic voltage rise and fall DC-DC power supply module,
the highest input voltage 15VDC, quiescent current is less than 200uA, fixed output 5V, maximum output current 600mA.
Designed to work as high as 1.2MHZ frequency, high stability, cost-effective,
industrial-grade components, long-time voltage drift-free, suitable for demanding applications,
has been mass-produced, you can rest assured that the use.
Applications.
Widely used in communication equipment, digital transmission radio,
industrial control motherboards, toys, aeromodels, microcontroller motherboards,
home appliances, vehicle power supply, security monitoring, field collection, street lights.
