ATX Transfer Board HU-M28 24 Pin Benchtop Power Board, USB Port Desktop PC Power Module Breakout,Compatible with ATX (Some BTX) Support 3.3V/5V/12V/-12V(2Pcs)

KWD 4.500
Brand
DAOKAI
Weight
160 g
– 1 +

Special Features

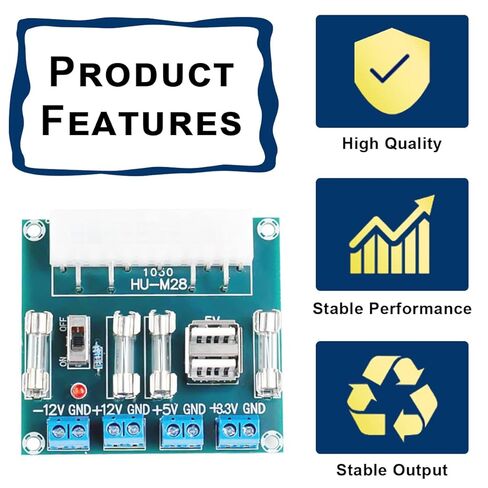

  • Product introduction: The 24-pin or 20-pin plug line of the desktop chassis power supply corresponds to the socket on the ATX power module board, transfers the voltage and current to each protection fuse line, and then allocates four groups corresponding to the four road outputs.

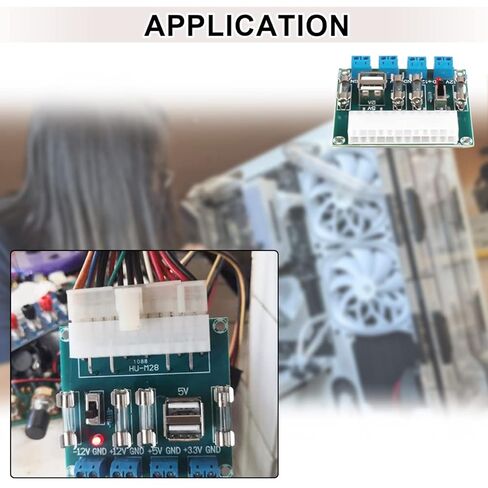

  • Power board function: Including power indicator light, main switch for turning on and off the power, low-voltage power supply suitable for developing physical computing projects (embedded systems).
  • With replaceable glass fuses: Each output channel has replaceable glass fuses and corresponding ground binding posts for easy connection.
  • Compatible port: ATX (compatible with some BTX), 4 groups of output voltage: 3.3V, 5V, 12V and -12V, each group of output current should be used within 20A, and the maximum current cannot exceed 20A.

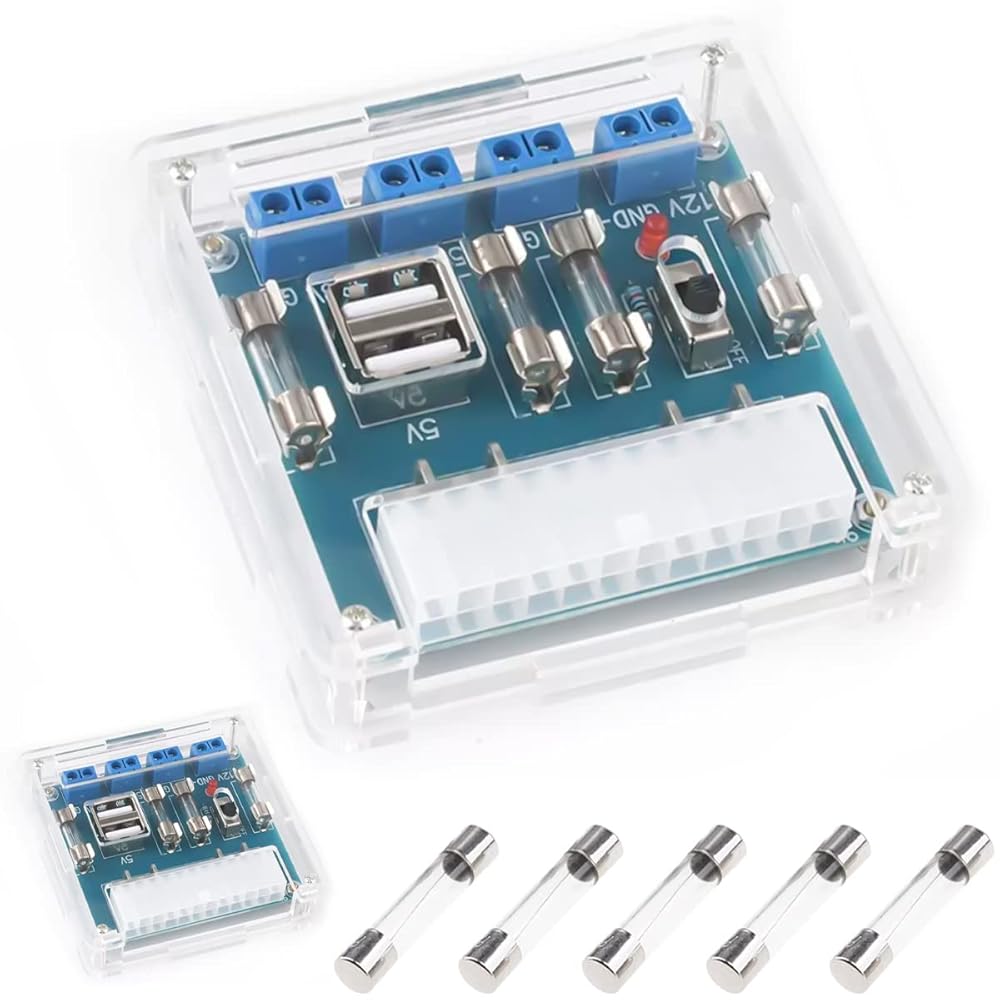

  • Package includes: You will get 2 x HU-M28 Desktop Chassis Power ATX Adapter Board With shell, 5 x glass fuse.Reminder: This product is a loose piece, the shell needs to be assembled by yourself.

Description

Product parameters:
Name: ATX power supply board
Model: HU-M28
Compatible port: ATX (compatible with some BTX types)
Number of PINs: 24PIN
switch: yes
Number of output groups: four groups of different voltages: 3.3V, 5V, 12V and -12V.
Output current: refer to the parameters of the desktop power supply box (the maximum current of each group cannot exceed 20A)
Dimensions: 69x64mm/2.71x2.52in
Hole spacing: 63x57mm/2.48x1.63in

Description:
24-pin port:

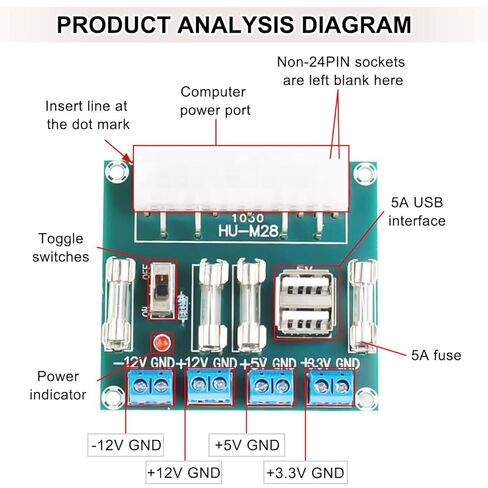

To power the computer motherboard in the computer case, the typical configuration is to use this port in conjunction with others. If your power supply has a 20-pin port or a non-standard 24-pin port, how should you connect the wires? Connect the plug from the marked origin on the circuit board and exercise caution when using it.

Notice:
The output current of each group should be used within 20A, and the maximum current cannot exceed 20A. Please use it in a standard manner, otherwise the module will be directly damaged.

Reminder: This product is a loose piece, the shell needs to be assembled by yourself

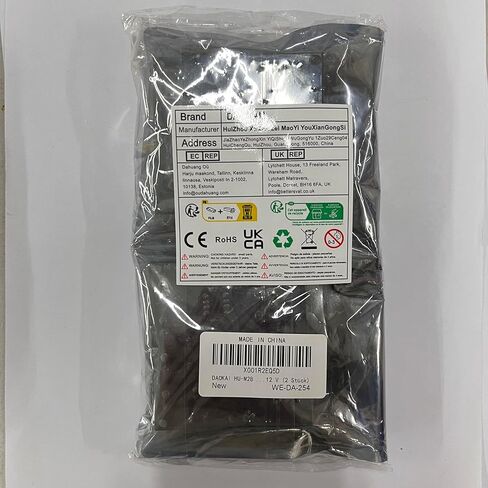

Package includes:
2 x HU-M28 Desktop Chassis Power ATX Adapter Board With shell
5 x glass fuse
