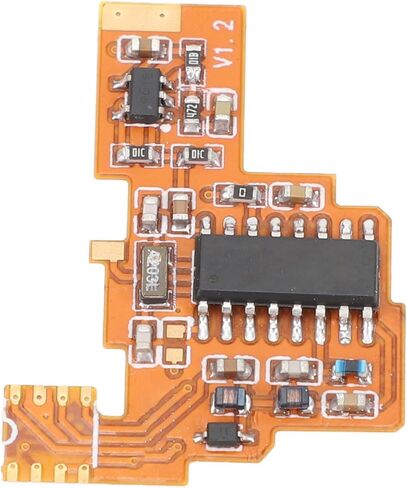

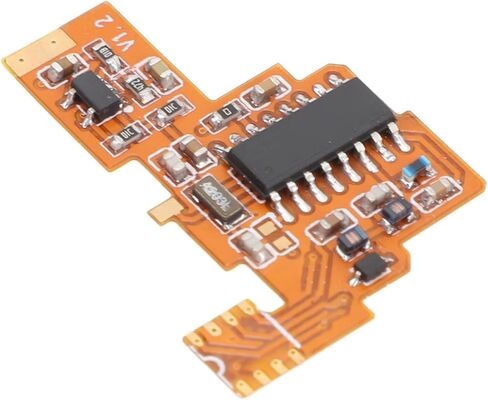

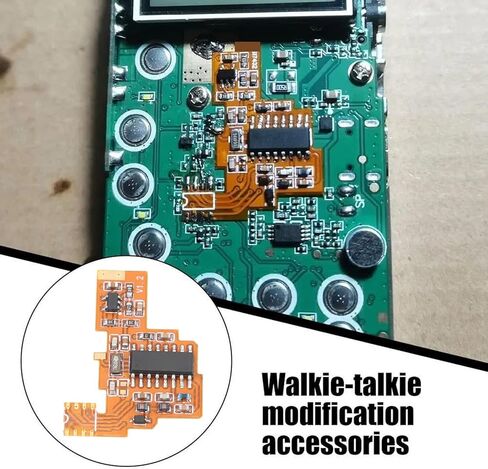

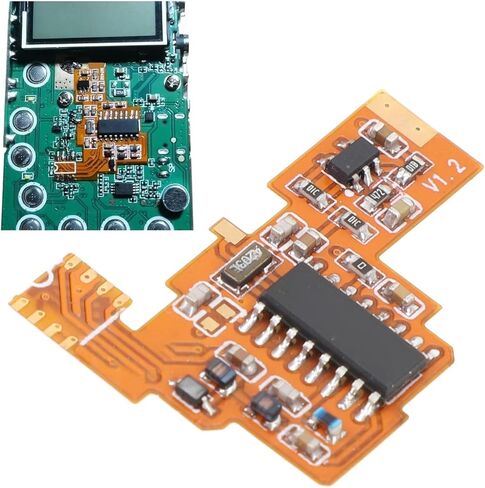

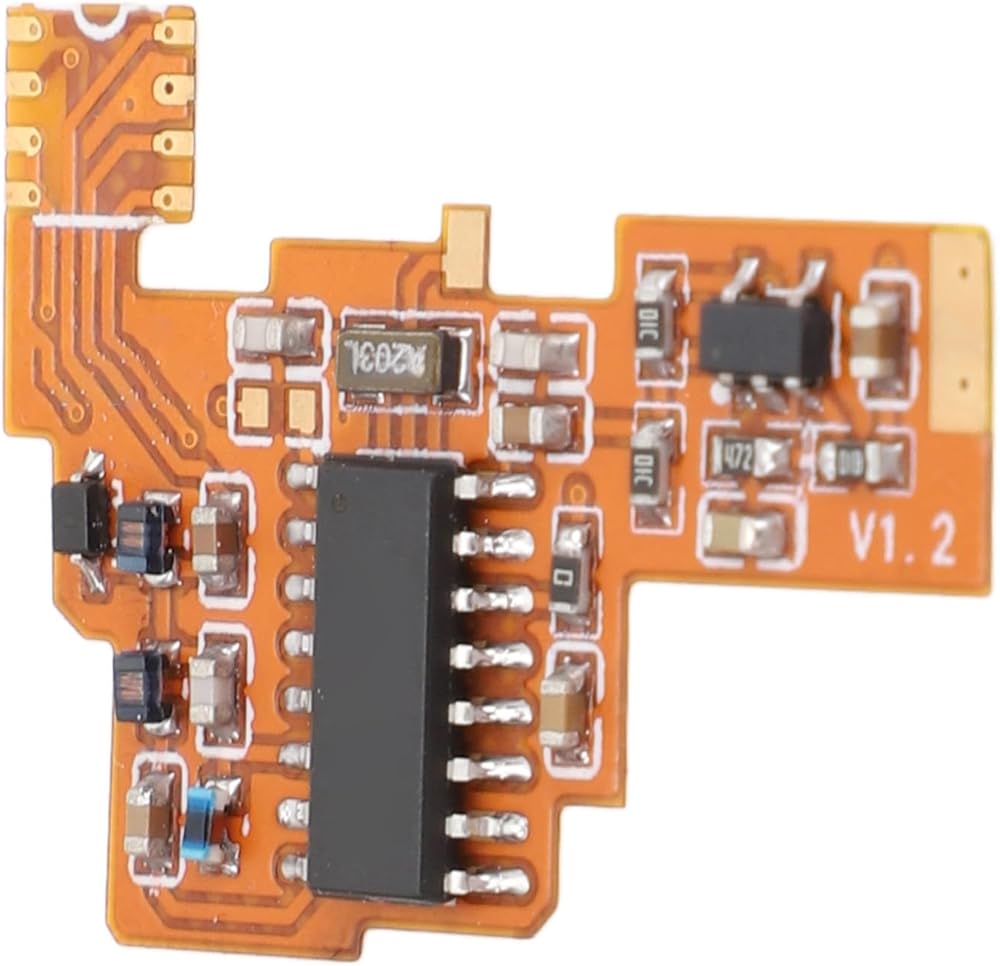

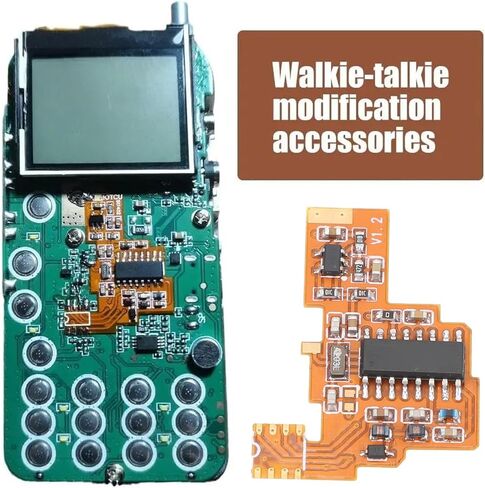

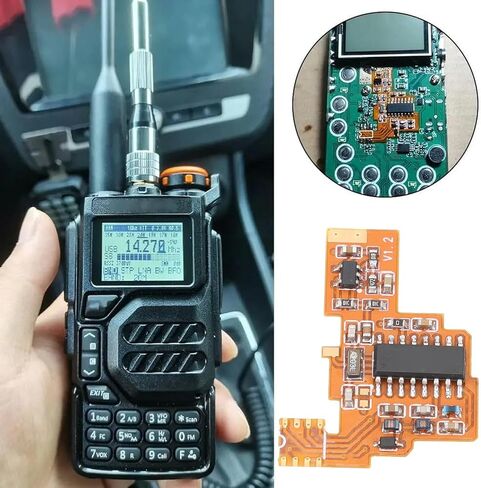

Radio Modification Module, for Quansheng K6 K5 Single Dual Antennae, SI4732 Chip with Memory for 2 Way Radio, HF Bandpass Filter Sound Amplifier, Antennae Upgrade

KWD 9
Brand
ASHATA
Weight
11 g
– 1 +

Special Features

  • Compatible Devices: Radio modification module specially designed for Quansheng K6 K5, with memory chip, add the SI4732 softboard FPC for the 2 way radio, modified HF short wave full band reception, single sideband reception, for single antennae, dual antennae.
  • Sound Performance Improvement: This radio modification module adds sound amplifier to effectively solve the problem of low volume of SSB single sideband reception and significantly improve the sound quality.
  • Enhanced Bandpass Filters: 2 way radio modification module, FM and HF bandpass filters have been redesigned to optimize signal filtering and reception quality in different frequency bands.
  • Electrostatic Guard: Integrated ESD tubes at the inputs ensure strong guard against electrostatic and strong signals when transmitting with dual antennaes in the section.

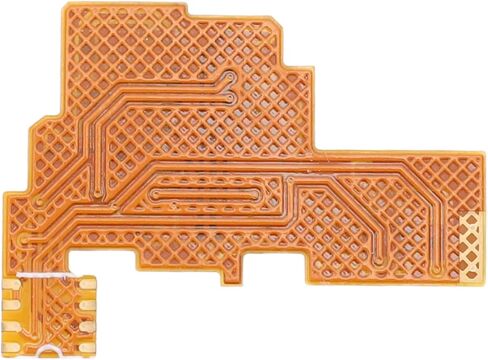

  • FPC Soft Board Utilization: Use 0.12mm thick FPC soft board to ensure safety and reliability, prevent short circuit, and support the installation without speaker, FPC soft board with double sided disk, more convenient to connect with the original machine.

Description

Spec:
Item Type: Radio Modification Module
Material: PCB
Chip: SI4732
Application: For Quansheng K6 K5 Radio Single Antennae and Dual Antennae
Upgrade Content:
1. Add sound amplifier to solve the problem of extremely low volume in SSB modulation, with significant effect
2. Redesign FM and HF bandpass filters
3. Add ESD tube at the input end for static guard and strong signal guard when transmitting in the band with dual antennaes
4. Dual antennae solution, additional first level bandpass filter at the antennae input end, use feeder and SMA head to form an independent HF antennae with LED, without affecting the original performance of the machine
5. With memory chip

How to Use:
Take out the product and use it.

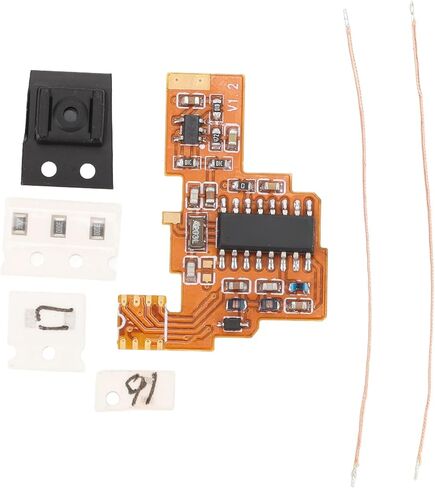

PackageList:
1 x Radio Modification Module
3 x Resistors
1 x Memory Chip
2 x Wires
