The DCP series UPS is simple to install and allows you to power various devices during a power outage. With multiple-voltage DC outputs, this UPS can power both your Router and ONU (Optical Network Unit) so you can continue browsing the web, working online, or Streaming. CCTV cameras and VoIP phones can also be connected and powered via the Power Over Ethernet (PoE) port. Charge mobile devices such as cell phones and tablets via USB. Featuring high-capacity Battery with safety protocols such as over-charge, over-discharge and short circuit protection.
★★★Please confirm the size input port of your devices before you order, if it is not DC 5.5X2.1mm port, you need to buy the proper chord or adapter sperately.
FEATURES
Power your Router and ONU (Optical Network Unit) during power outages.
Keep your mobile devices charged with USB ports.
Power your CCTV cameras and VoIP phones with POE.
Compatible with a wide range of routers.
Intelligent protective design with over-charge, over-discharge, over-load and short circuit protection
Easy wall mounting with wall mounted accessories

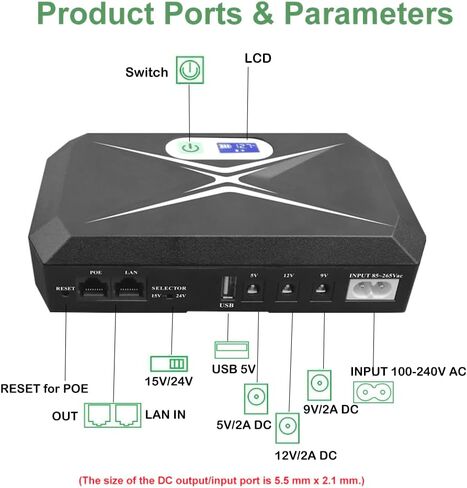

Product Parameters
Material:PC flame retardant shell
Battery capacity:4X2600mAh
Battery type: Li-ion

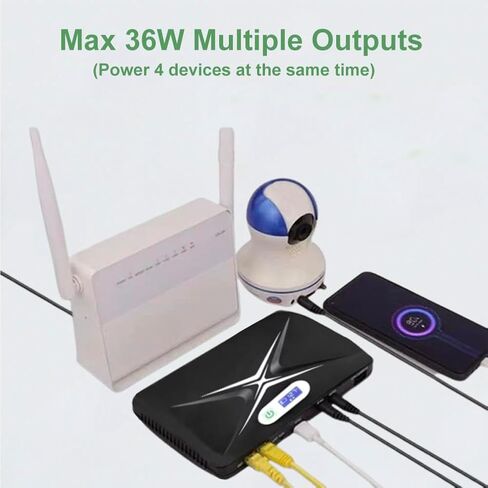

Power output：36W
Unit dimension：180mm *106mm *40mm
Net Weight：0.43kg
Input:100 ~ 240Vac 50/60Hz
OUTPUT：USB 5V/1.7A,DC 5V/2A,DC 9V/2A,DC 12V/2A,POE 15V/1A,POE 24V/1A

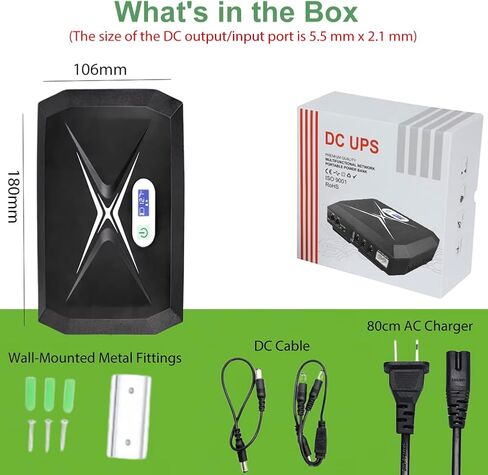

What's in the box
1) 1 × DCP-UPS.
2) 1 × 80cm AC power cable.
3) 1 × 30cm One-to-One 5.5*2.5 male to 5.5*2.5 male DC Power Cables.
4) 1 × 30cm One-to-Two 5.5*2.5 male to 5.5*2.5 male DC Power Cables.
5) 1 × Wall-mounted metal fittings
6) 1 × fixing screws
7) User's Manual

HOW TO USE
1. When using the UPS for the first time or when it has been idle for a long time, please connect it to the AC power to charge the UPS to prevent the UPS from being unable to start up normally because the battery is too low and has entered an over-discharge protection state.
2. When the UPS is power-off or at a loss of power, the UPS will automatically turn on and charge the battery when connected to the charging power supply; when the UPS is power off and the battery voltage is normal, press and hold the switch button for 3 seconds to turn on the UPS.
3. For best performance, fully charge the battery before connecting to the load.
4. Before connecting to the load, the operating voltage, current and polarity of the load equipment must be confirmed before connecting to the corresponding output connector of the UPS, otherwise there is a risk of burning out the load.
5. The maximum load power of the UPS is limited by the sum of the output power of each port, the total power of the load connected to all output ports must not exceed the maximum output power of the UPS, if the output is overloaded, the UPS will enter the overload protection state, after a short prompt the UPS will shut down the output of all ports and turn off, it needs to be unloaded and restarted before the UPS can resume normal.
6. The UPS supports LCD display,The screen will display the current operating status of the device in real time, the battery icon can display the percentage of current power, the small icon at the bottom of the screen can display the current working mode and alarm signal; short press the switch button to switch the display information, you can cycle through the display of battery voltage, output power, load specific gravity. During the charging process, the battery icon will gradually light up and flash to remind the current charging level.When the charging power is disconnected, the mains icon will go out and the lithium battery will start to supply power to the load, the battery icon will go out one by one, when the last cell flashes, it means the battery power is about to run out, when the battery power is exhausted, the equipment will enter the over discharge protection state and shut down, it needs to be reconnected to the AC power to charge the UPS before it can be turned on normally.
7. For wall mounting, remove the supplied wall kit, drill a hole in the right place and place the adhesive pellets, then use a screwdriver to fix the metal wall parts to the wall with screw fittings and finally embed the UPS mainframe into the metal pendant.
8. If this device is not used for a long time, keep it fully charged and in a cool place, or charge it first if it is left idle for too long to turn on (refer to step 1).
9. It is recommended to recharge the device's battery at least once a month to prolong the life of the battery.
