Mini PCIE to USB Riser Card for WWAN Test Adapter Card 3G/4G Module with SIM Card Add USB 4-Wire Input Hole Plate to Directly Weld USB Cable.

KWD 4.500
Brand
ASHATA
Category
Internal Cards
Weight
11 g
– 1 +

Special Features

  • Increase the locking of the fixed module, so that the user can install easily and improve the reliability and stability of the module work.

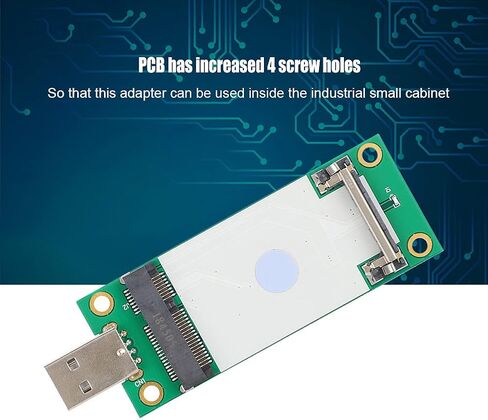

  • For PCB has increased 4 screw holes, so that this adapter can be used inside the industrial small cabinet.
  • Increase the distance between the SIM card holder and the rear panel components, so that the user can disassemble the SIM card more conveniently.
  • This product uses high quality materials and fine craft. It is and
  • This product is suitable for 3G modules of many brands, such as for , for ZTE and other brands 3G Card. The card is used for flashing, debugging, testing and unlocking of the 3G module through the USB port, and can also be tested by USB for the module (USB bus) of the USB bus and the Mini PCI-E interface card (USB bus).

Description

Specification:
Product Size : Approx. 85x31mm/3.3x1.2inch
PCI-E: Mini PCI-E design conforms to the industry standard of 1.30 version
USB: USB design conforms to USB 2.0 industry specifications and is backward compatible with 1.1 specification
Applicable Module: This adapter card is suitable for full-height (30x50-51mm/1.2x1.9-2.0inch) 4G/3G modules (USB bus)
LED: Working status LED real-time display
Driver: The product does not require any software drivers

Package List:
1 x Riser Card

Note:
This product is suitable for many brands of 3G 4G modules.
For Huawei Modules: MU609 PCIE, MU709S-2 PCIE, MU509-B PCIE, MC509-A PCIE, EM770 770J 770W, EM820U 820W, ME909u-521, ME909s-821, ME909S-120, etc.
For ZTE Modules: MF210, ME3760V2C, ME3760V2D, ME3760 private network, MF210V2/AD3812/MC2716/ME3620/ME3630, etc.
For Grid/Meg Module: SLM630/SLM630B
For Longshang Module: U8300/U8300W/U8300C/C5300V/U7500E/U6300V
For Domain Module: CLM920N/CLM920CN3/CLM920 full range of PCIE modules
For Quectel Module: UC20 full range of PCIE, for EC20 full range of PCIE modules
For SIMCOM Module: SIMCOM7100 full range of PCIE modules
For Usr module: USR-G402tf PCIE module
Supports sierrawireless,Telit, cinterion, Ericsson, , Huayu, Datang and other brand 3G 4G cards for Internet access and module brushing, debugging, testing and unlocking via USB port.
