Introduction :

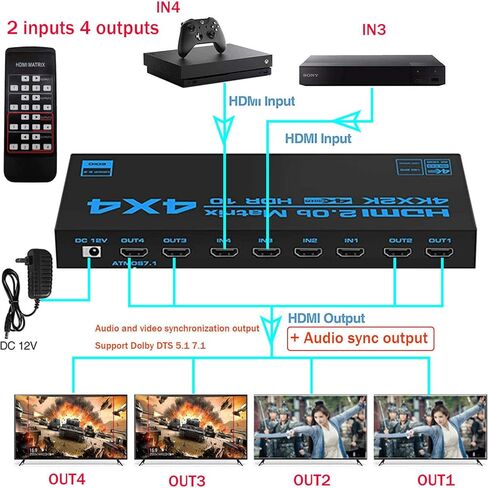

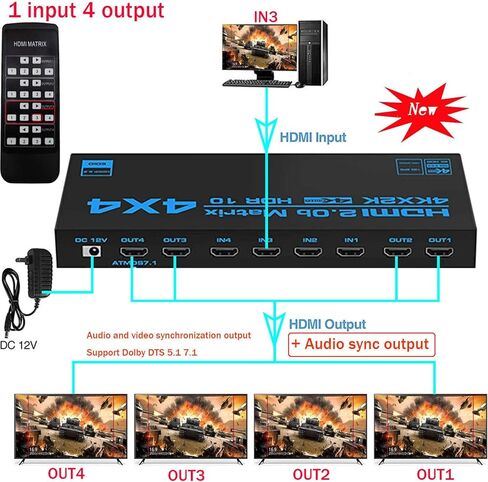

HDMI2.0b matrix 4 inputs and 4 outputs with IR remote control can connect 4 HD signal sources to 4 HD displays. Each HDMI output can share the same or the different picture, and can allows you switch or split easily to 4 HDMI compatible monitors or projectors without flash screen or any loss in quality.
-It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments etc.
Specification
- Support HDMI 2.0b HDCP 2.2
- Support 3D video format
- Support highest resolution up to 3840*2160/60Hz YUV4:4:4
- Support 18Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24bit
- Input cable distance: - Power Supply: DC 12V.
- Dimension (LxWxH): 230*90*25mm

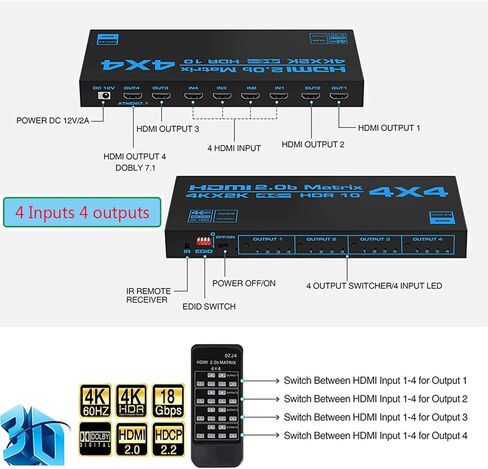

Instruction of Buttons and LED
1. Instruction of LED: IN1-IN2 IN3-IN4 indicator is the corresponding input sources out from OUT1 or OUT2 or OUT3 or OUT4
2. Operation of Buttons: OUT1 or OUT2 or OUT3 or OUT4. is used to switched the corresponding input source out from OUT1 or OUT2 or OUT3 or OUT4
NOTE :
1：Please connect four input sources, then you will get four different pictures.
2：Please hold the power adaptor head and do not pull the power cord when cut off from the socket.
3：Please use the original factory power adaptor and turn the power off when the 4x4 matrix switch is not used for long tim
4：This 4k@60hz HDMI matrix 4x4 switcher splitter box with adjustable EDID management, and has 16 EDID modes, which can recognize the display device parameter and make it match to the equipment, can get better compatibility.
5：After you had set the EDID, Please restart your HDMI Matrix Switch.

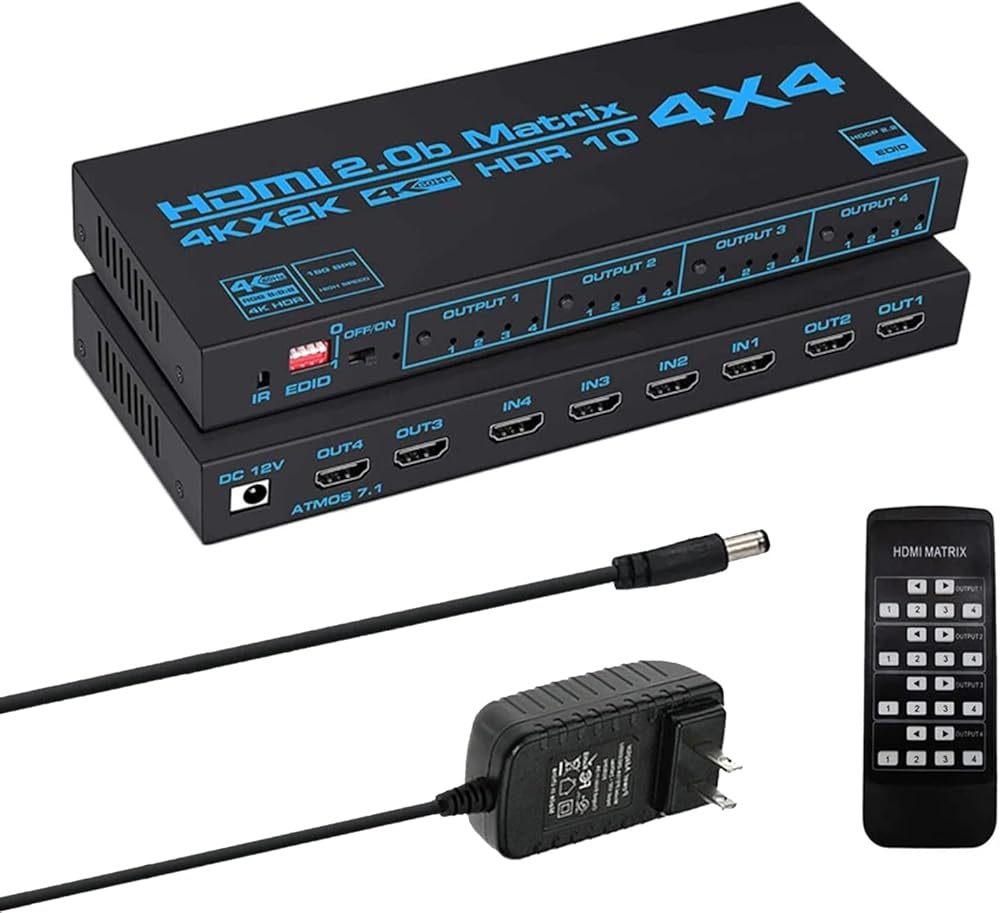

Package contents
- 1x HDMI Matrix 4X4
- 1x 12V power adapter
- 1x IR Remote Control
- 1x User Manual
