Opticis M1-201SA-TR Four Fiber Detachable Optical DVI Module (Small Form Factor), Auto-power Switching, Extends All VESA Resolution Up to WUXGA (1920x1200) 60Hz DVI Data Up to 500 Meters (1640 feet)
The detachable DVI extender, M1-201SA-TR offers easy connection to your existing system with minimum efforts and no modification, since it is designed compactly enough and compatible with all industry standard connectors. For better installation flexibility, it features patent pending Self-EDID management, reading and restoring by just plugging transmitter module to the display.
Key FeaturesEasy and simple installation
Reads and restores the targeted EDID in the transmitter (Self-EDID) Provides Power, Status (Signal transmission in the transmitter and signal detection in the receiver) LED indicators
Auto-power switching
Supports bit rate up to 1.65Gbps/ch
Extends all VESA resolution up to WUXGA (1920x1200) 60Hz DVI data up to 500 meters (1,640 feet)

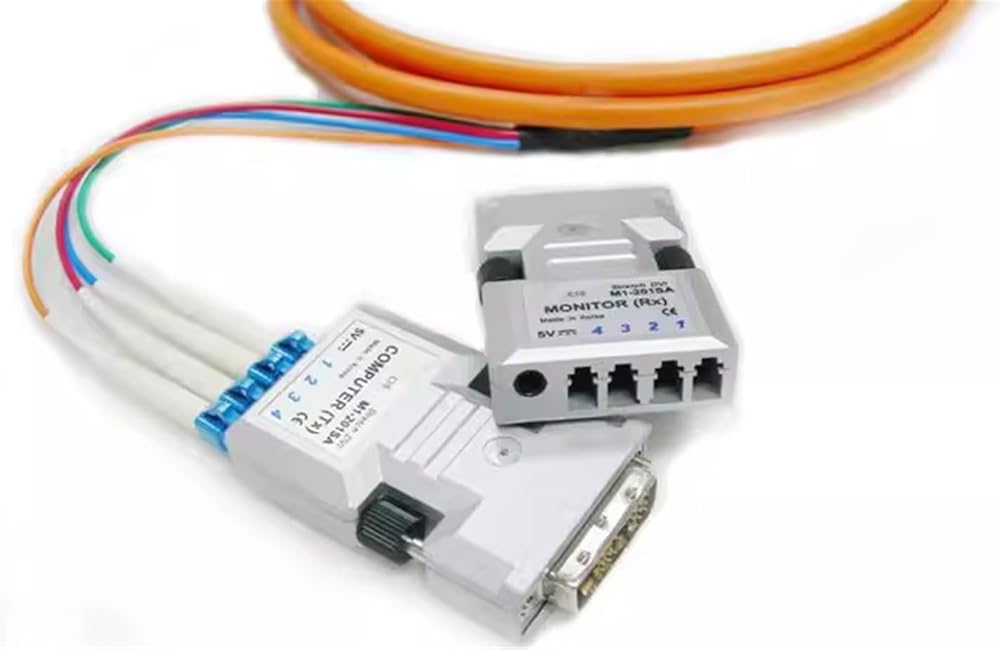

Detachable feature with a pair of duplex LC multi-mode fibers
Offers self-EDID programming feature, detecting from a display and restoring to an EEPROM in the transmitter just by plugging to the display without any physical DDC connection
Includes two (2) +5V DC power adapters for the transmitter and receiver
Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present
SpecificationsOperating temperature: 0 ~ 50°C
Storage temperature: -30 ~ 70°C
Power Input: AC 100-240V, 50/60Hz
Power Output: +5 V, 1A SMPS DC-power Adapter
Cord DC Jack: Core is 5 V and outer is GND
Dimensions (WxDxH): 39 x 59 x 15mm
Certifications: CE/FCC, UL/EN 60601-1, 60601-1-2, Class 1 Laser Eye Safety
