10PCS DB25 Female to RJ45 Modular Adapter, 25 Pin Serial Port to RJ45 Female Ethernet LAN Extend Modular Converter

KWD 6
KWD 6.500
– 1 +

Special Features

  • Easy to use: plug and play design, simple installation, no need for welding.No external power needed, draw power from the connected devices, convenient for portable setups.
  • RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White.

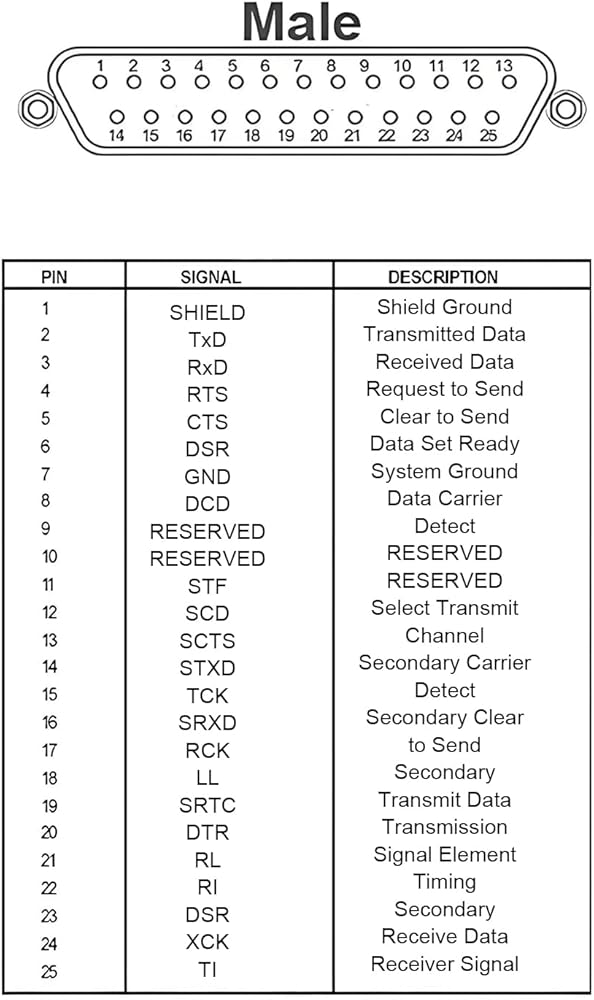

  • DB25 Pin Definition: 1.SHIELD(Shield Ground); 2.TxD(Transmitted Data); 3.RxD(Received Data); 4. RTS(Request to Send); 5. CTS(Clear to Send); 6.DSR(Data Set Ready); 7.GND(System Ground); 8.DCD(Data Carrier Detect); 9.RESERVED; 10.RESERVED; 11.STF(Select Transmit Channel); 12.SCD(Secondary Carrier Detect); 13.SCTS(Secondary Clear to Send); 14.STXD(Secondary Transmit Data); 15.TCK(Transmission Signal Element Timing); 16.SRXD(Secondary Receive Data); 17.RCK(Receiver Signal Element Timing); 18.LL(Local Loop Control; 19.SRTC(Secondary Request to Send); 20.DTR(Data Terminal Ready); 21.RL(Remote Loop Control); 22.RI(Ring Indicator); 23.DSR(Data Signal Rate Selector); 24.XCK; 25.TI.

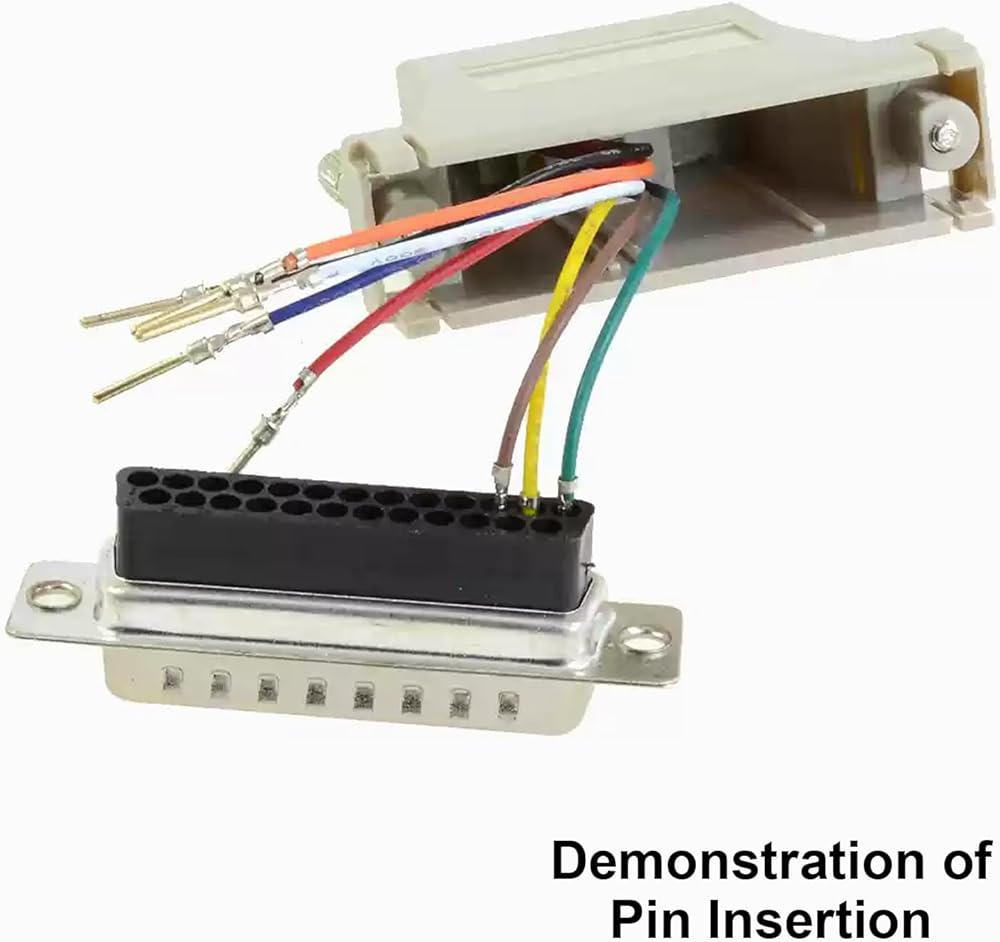

  • These modular adapters can be converted from DB25 to RJ45 sockets (female). The pins can be configured by the user to meet any of your needs. The lead wire is a "flying wire" that provides you with more flexibility when inserting pins. Use this console cable to access and configure the router.

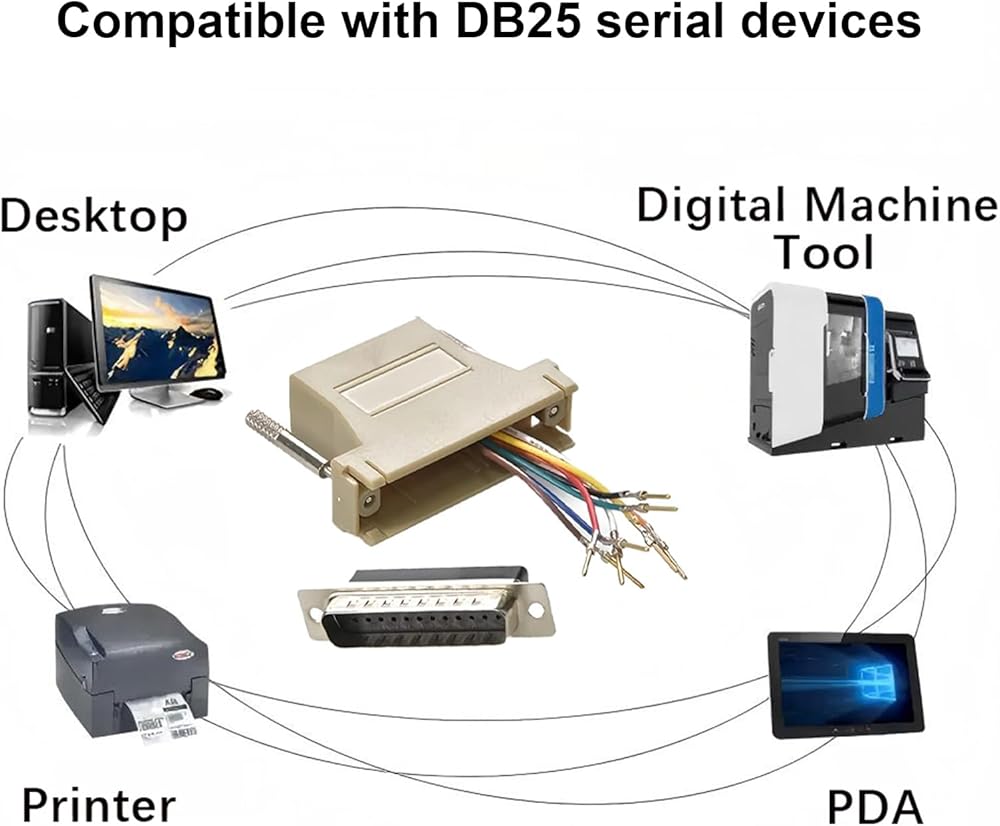

  • Widely Compatibility: You can use these systems for computer-related equipment such as printers, mice, keyboards, networks, and modems.

Description

Specifications:

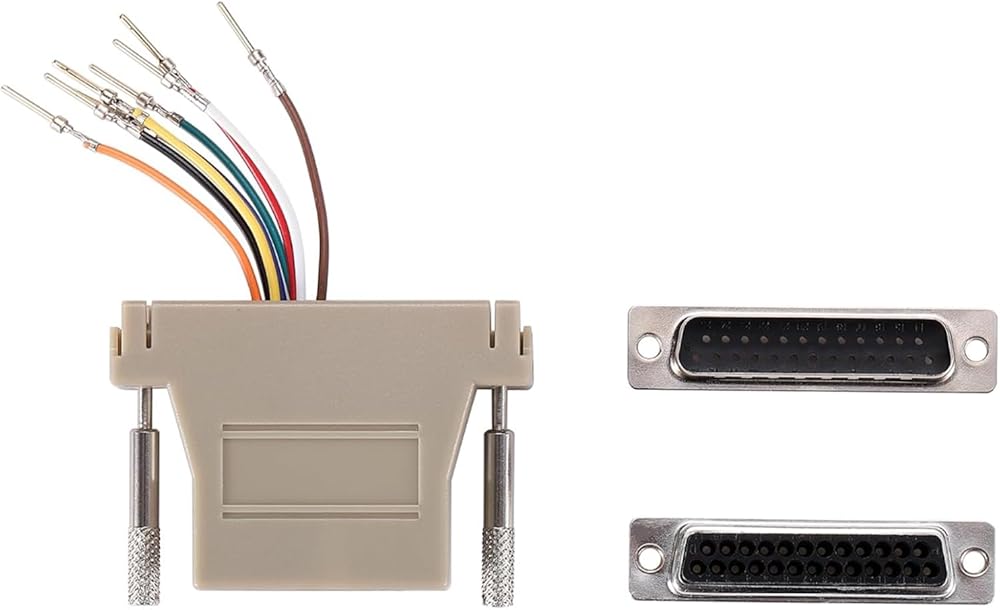

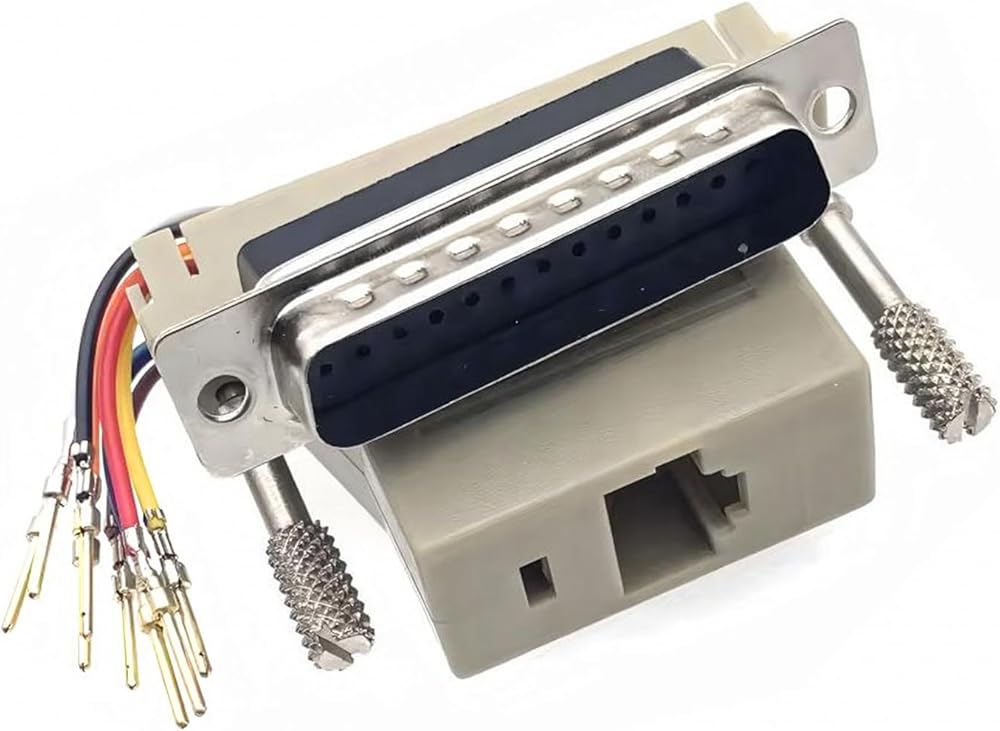

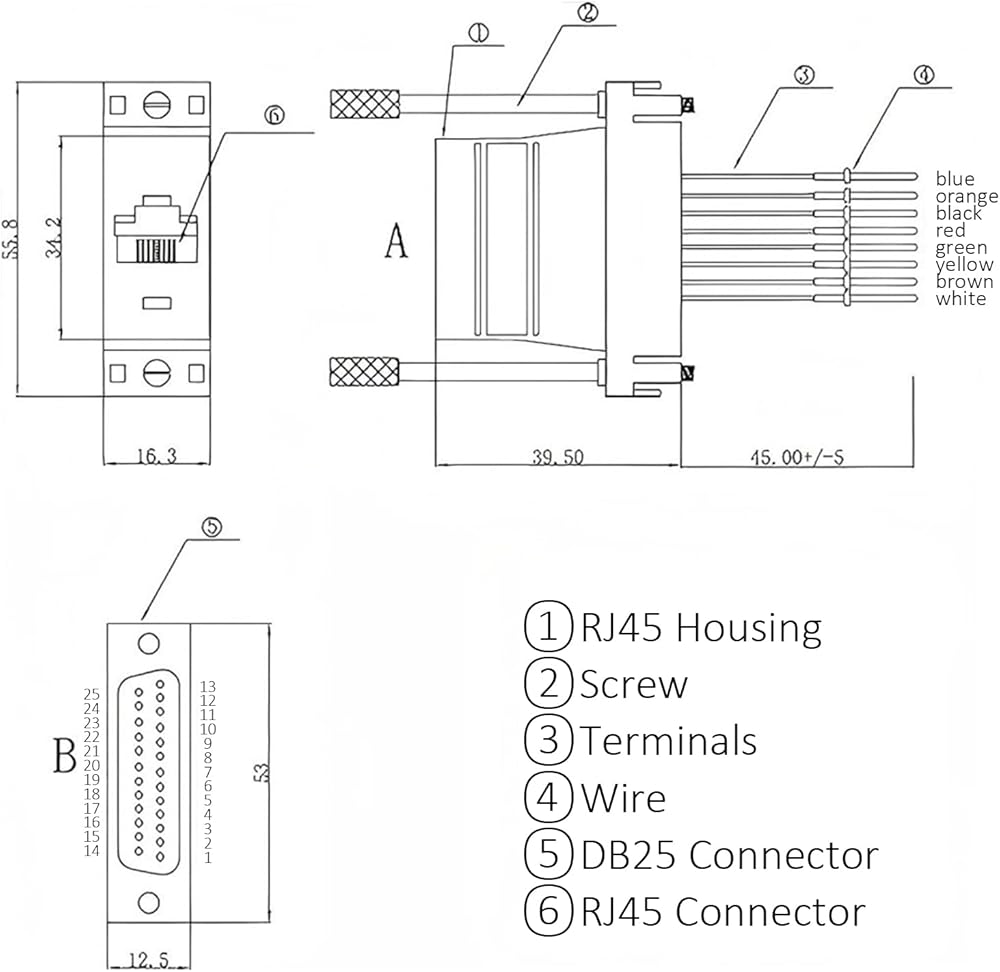

Product name: DB25 male to RJ45 female module
Shell material: ABS
Wire: 1007 # 26 tinned copper wire
RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White
DB25 Pin Definition: 1.SHIELD(Shield Ground); 2.TxD(Transmitted Data); 3.RxD(Received Data); 4. RTS(Request to Send); 5. CTS(Clear to Send); 6.DSR(Data Set Ready); 7.GND(System Ground); 8.DCD(Data Carrier Detect); 9.RESERVED; 10.RESERVED; 11.STF(Select Transmit Channel); 12.SCD(Secondary Carrier Detect); 13.SCTS(Secondary Clear to Send); 14.STXD(Secondary Transmit Data); 15.TCK(Transmission Signal Element Timing); 16.SRXD(Secondary Receive Data); 17.RCK(Receiver Signal Element Timing); 18.LL(Local Loop Control; 19.SRTC(Secondary Request to Send); 20.DTR(Data Terminal Ready); 21.RL(Remote Loop Control); 22.RI(Ring Indicator); 23.DSR(Data Signal Rate Selector); 24.XCK(Transmit Signal Element Timing); 25.TI(Test Indicator)
Package includes:
10 x DB25 Male to RJ45 Modular Adapter
