【Technical Parameter】
Operation speed: 0.05mm-50cm/sec*1
Electrical life：Above 500,000 times
Operating frequency Electiacal: 20 operations/min.
Contact resistance: 15mΩ max. (initial value)
Insulation resistance: 100mΩ above(at 500VDC)
Vibration Action:10 to 55Hz,1.5 mm pairs swing
Ambient operating Humidity：35- 95% RH
Ambient operating temperature：-10~+80℃/14℉~176℉ (With no icing)
Shock: Mechanical durable: 1,000m/Sec²(about 100g's); Malfunction: 100m/Sec² (about 10g's)
【Operating Characteristics】
Operating Force=OF(Max): 2.744N
Release Force=RF(Max): 0.98N
Pre-travel=PT(Max): 6.5mm
Over-travel=OT(Min): 2.0mm
Movement Differential=MD(Max): 1.5mm

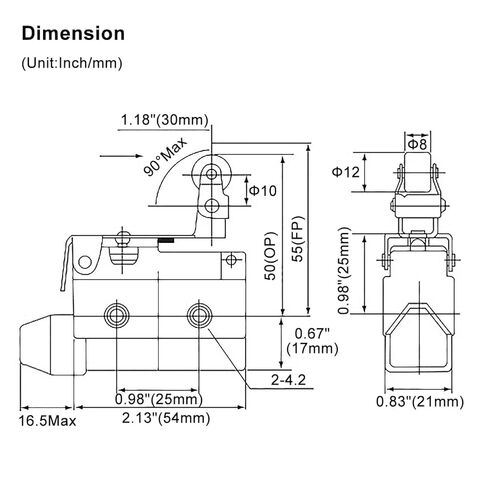

Operational Postition=OP: 50±1.2mm; FP: 56mm;

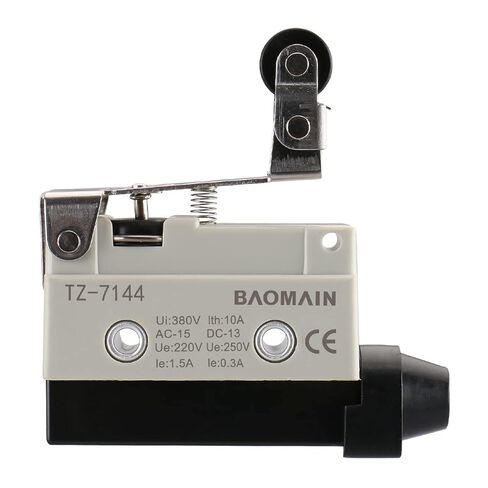

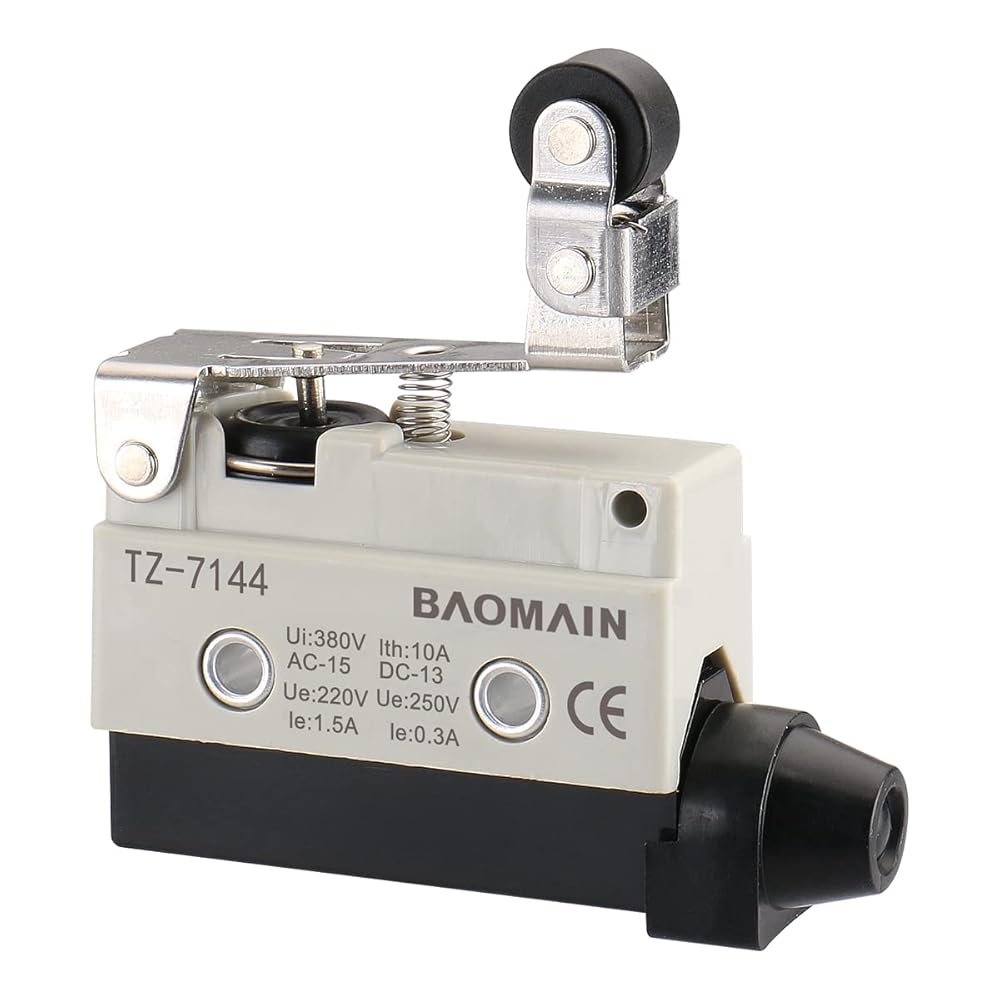

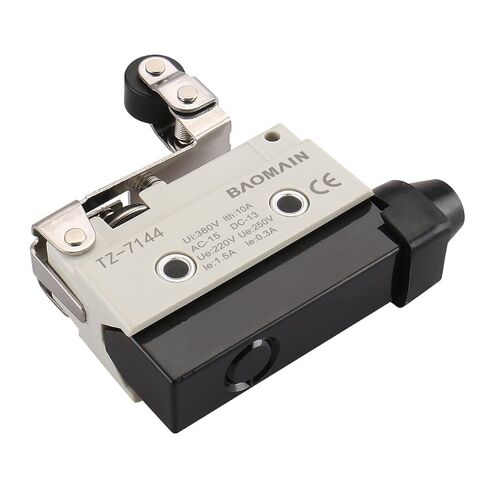

Enclosed Switches with Built-in Basic Switches for High Repeatability and Durability.
The Limit Switch is widely used in various mechanical to monitor the position of moving parts of machines and plant.
The Short Push Plunger Limit Switch also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.
Suitable for applications demanding higher mechanical strength, dustproof and drip-proof properties than those on basic switches.
