HIGH QUALITY HEAT SHRINK BUTT CONNECTORS - Industry Standard Polyolefin Terminals for Electrical Wiring
Color Coded Crimp & Heat Connectors for Quick Assembly, Excellent for Marine, Automotive, Weather Proof Environment

Packaged bag of 100 pcs.
Wire Combinations: #12 thru 10 AWG

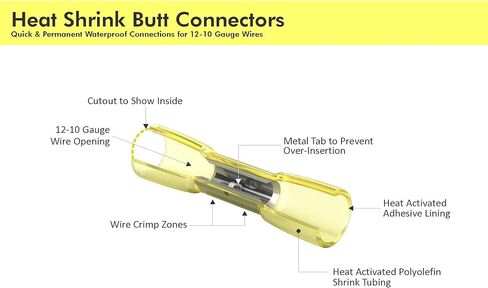

PRODUCT FEATURES:

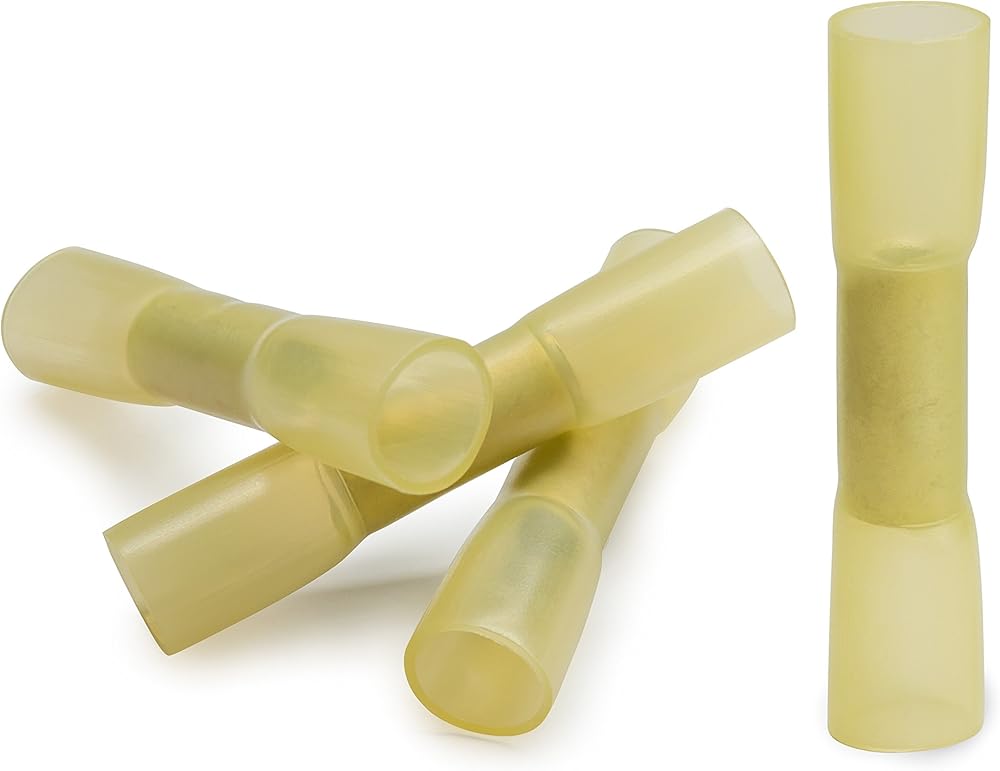

Yellow Butt Connectors with Internal Tin Plated Brass Tubing
Heat shrink polyolefin sheath with heat activated adhesive lining ensures waterproof connection with your wires
Translucent outer shell lets you view the wire and its exposed strands as you're inserting to ensure that it is positioned properly for crimping
Metal "stop tab" in center prevents over-insertion

VOLTAGE RATING: 600V Max. Pure Copper Core; Tube Shrinkage Ratio 3:1

Compliant with ROHS, ISO 9001:2008, SGS and CE Standards

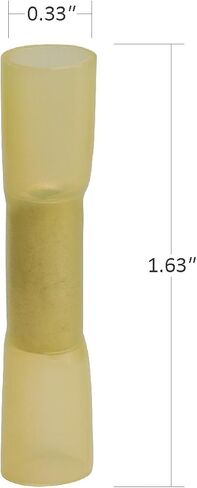

Overall Dimensions: 1-5/8" L x 3/8" D

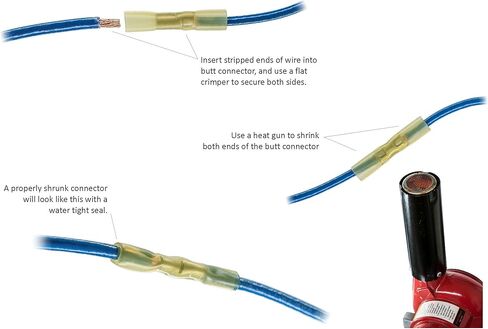

INSTALLATION INSTRUCTIONS:
  1. Turn off power before installing or removing connectors
  2. Strip wires 3/8" (1cm)
  3. Pre-twist for easy insertion into connector
  4. Push wires into connector(s)
  5. Crimp ferrule (metal tube) onto wires
  6. Use a heat-gun to shrink tubing and seal wire - be sure not to apply too much heat to ensure the wire jacket does not also melt! Helpful videos can be found online.
