Sterling Seal & Supply SSS 9000IR1316PTFE2500X6 Green Band with White Stripe 316SS/PTFE Spiral Wound Gasket with 316SS Inner Ring, -150 to 500 degrees F Temperature Range, 1.06" ID, 3.38" OD, for 1" Pipe Size (Pack of 6)

KWD 20

Brand
Lamons: Category
Seals & O-Rings: Weight
273 g

Special Features

ASME B16.20 Gaskets for ASME B16.5 Flanges/Class 2500/Inner ring protects sealing element from process media attack

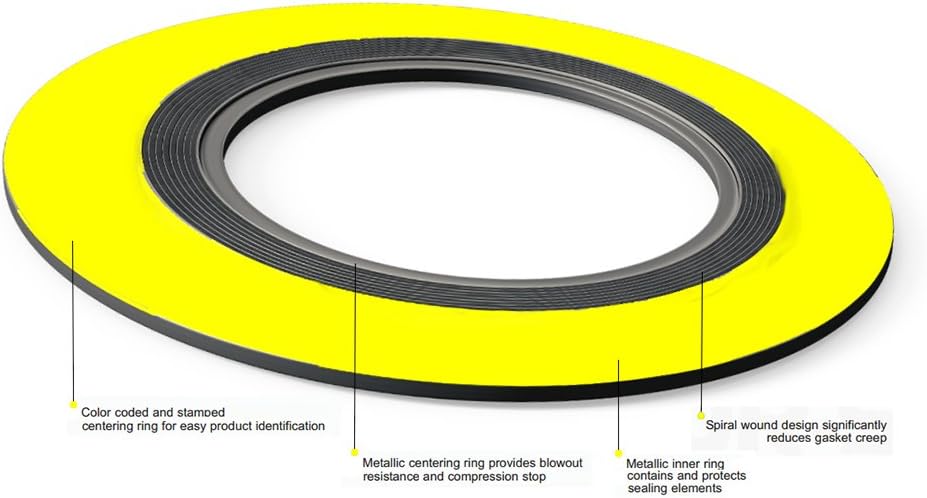

Centering ring accurately locates the gasket on the flange face, provides additional radial strength, and acts as a compression limiter
Spiral winding (sealing element) consists of metal and soft filler material
Temperature range (F) : -150 to 500 Degrees
Durable; easy installation and removal

Description

For applications with high temperature variations (thermal cycling), and/or pressure variations (6 per/pack)
