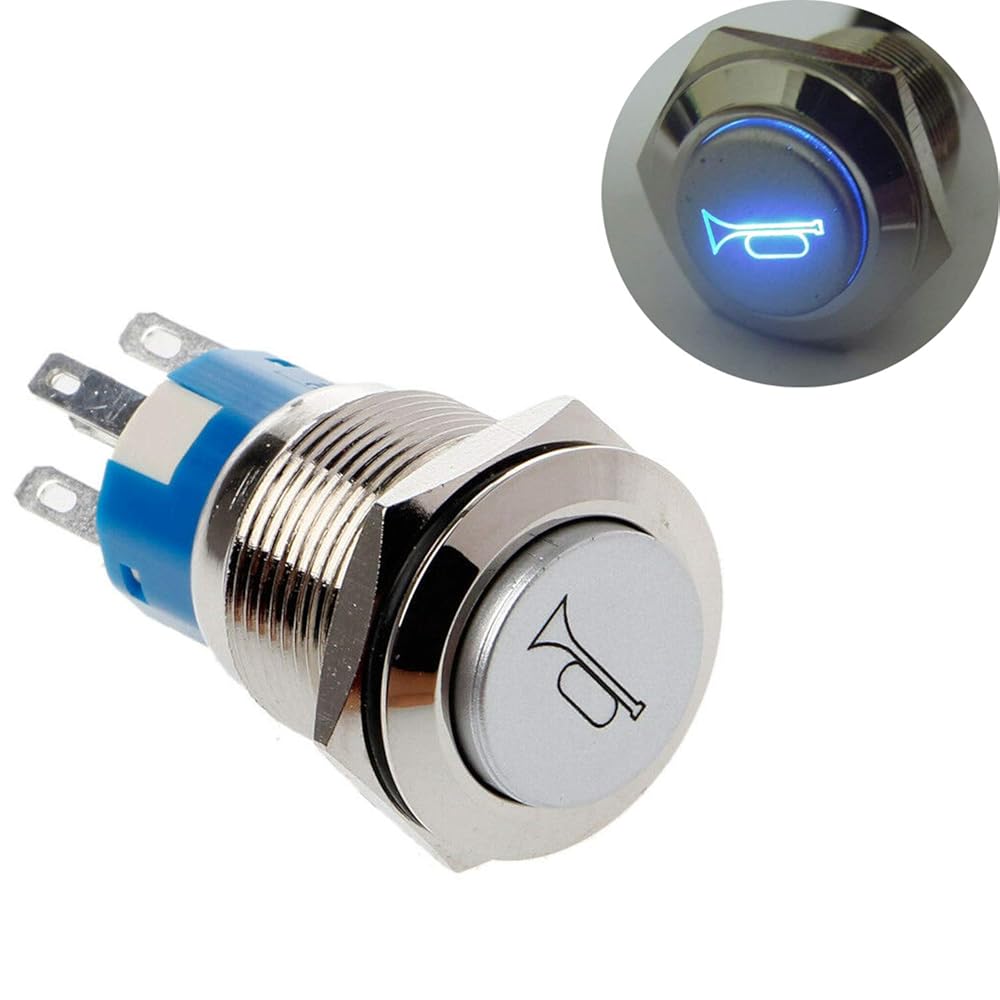

جديد 12V 5A 12V 19MM زرقاء LED لحظة الضغط الزر المعدني مفتاح مكبرات الصوت القارب أجراس القرن

KWD 3.500
اللونأزرق
– 1 +

مميزات خاصة

  • Material: Plastic, metal; Action Type: Momentary Action
  • Switch Rating:5A/250VAC ;LED voltage: 12V only； Hole size required：19mm
  • Contact Configuration: 1NO 1NC.
  • It has a wide range of functions. For example, it can be applied as the switches for the additional electronical equipment inside&outside the car. (such as bells , speakers)

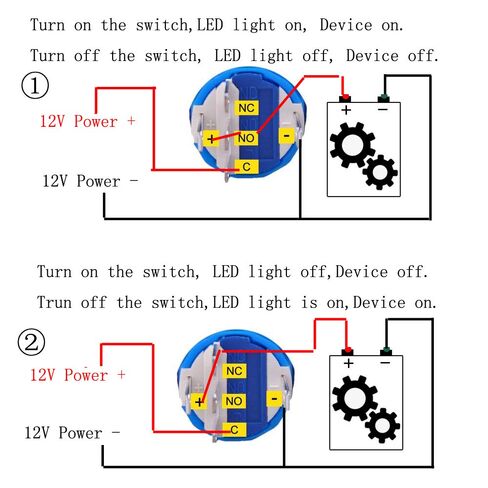

  • Operation Type: push it-- on, Release -- off.you can find the Wiring Diagram in the picture

وصف

Description:
1.It has a wide range of functions. For example, it can be applied as the switches for the additional electronical equipment inside&outside the car. (such as bells , speakers)
2. For load under 5 Amp, you do not need a relay with this switch. For load above 5 Amps, we advice you to use of Automotive Relay.
3. Easy setup. All you need is a 0.74" hole and the switch will sit in nicely.

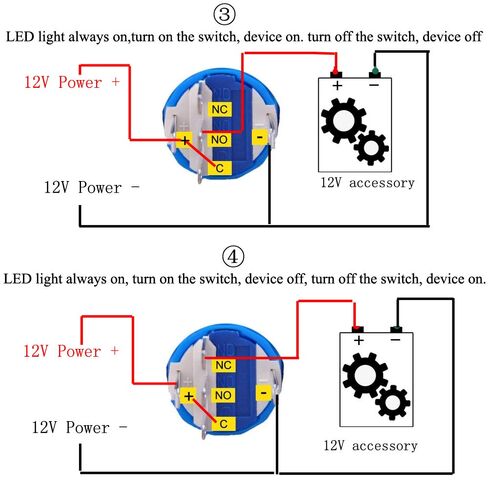

4. LED on all the time or only when switch is on(depending how you wire it)

Features:
Head Diameter:22mm
Button Diameter: 13mm
Hole size required: 0.74''/19mm
Depth inc contacts: 40mm
Contact Configuration: 1NO 1NC
Operation Type:Latching
Operation Type: push it-- on, Release -- off

Package Include:
1 X Red LED Momentary Push Switch
