Little Giant 10ECH-CIA-RF 115-Volt, 1/2 HP, 3600 GPH Automatic Submersible Cast Iron High Head Effluent Pump with Piggyback Float Switch and 20-Ft. Cord, Blue, 511621

KWD 200.500
Brand
Little Giant
Category
Rough Plumbing
– 1 +

Special Features

  • HIGH HEAD EFFLUENT PUMP: designed to handle higher-head flow for transferring gray water from deep effluent systems and sump systems; 3/4" solids handling; 60' shut-off
  • HIGH EFFICIENCY MOTOR: Permanent Split Capacitor (PSC) thermally protected motor runs on 9 Amps, 1030 Watts and is cCSAus listed; rated for continuous duty
  • BUILT TO LAST: Epoxy-coated cast iron motor housing, and volute; Nitrile carbon/ceramic shaft seal; thermoplastic elastomer non-clog impeller; steel shaft; upper and lower ball bearings
  • AUTOMATIC EFFLUENT PUMP: includes integral float switch; activates when water reaches 8" - 11"; shuts off when water level falls between 3" and 6"; 20' 115-volt cord with 3-prong plug included
  • SPECIFICATIONS: 115-volts, 1/2 hp, 60 Hz, 9 running Amps, 1030 Watts, 3600 GPH at 5' lift; 60' shut-off; 26 PSI; 1-1/2" FNPT discharge; rated for 140 °F liquid temperature; 20' cord; 38 lbs.

Description

With a 60' shut-off the 10-ECH series is built to handle higher-head flow in residential wastewater removal, dewatering, and water transfer applications, the 10ECH series of effluent pump is a homeowner's trusted companion. Constructed of heavy cast iron with an epoxy-coated finish and stainless steel fasteners, the 10ECH series of effluent pumps will provide years of reliability. Ideally suited for effluent septic systems with deep tanks. This 1/2 HP pump delivers up to 3600 GPH and comes with a 20' cord, 3-prong plug and integral float switch.

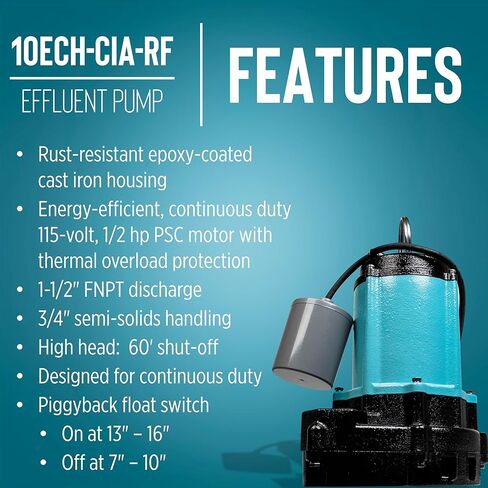

Features & Benefits:

- 1/2 hp Permanent Split Capacitor (PSC) motor

- Designed for continuous duty

- Energy-saving low amp draw

- 1-1/2" FNPT discharge

3/4" solids handling
