مميزات خاصة

【Dimension】KCD4 Rocker Switch:34mm x 25.3mm x 34.5mm/ 1.33inch x 0.99inch x 1.35inch(L x W x H); Terminal Wire Length: 120mm/4.72inch; Gauge: 20AWG;Reed Inner diameter: 6.3mm/0.25inch; Sheath Inner diameter: 6.3mm/0.25inch.

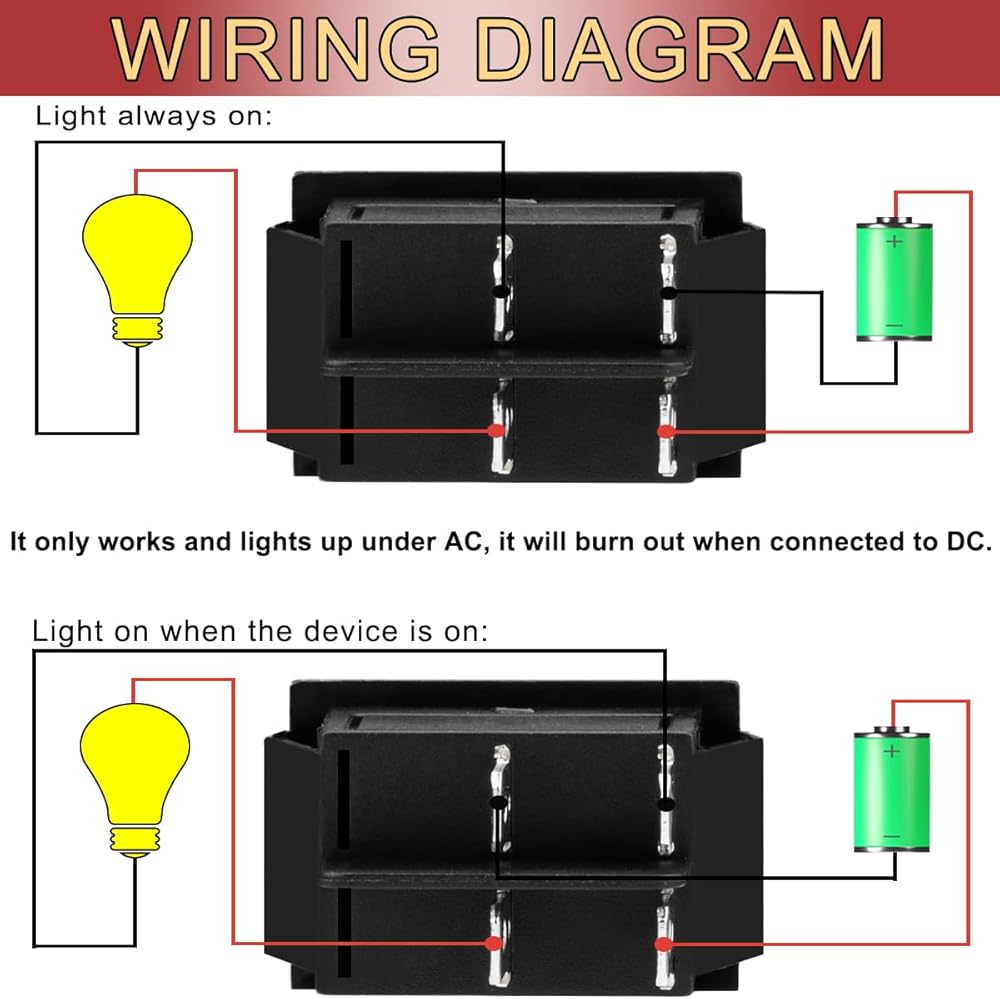

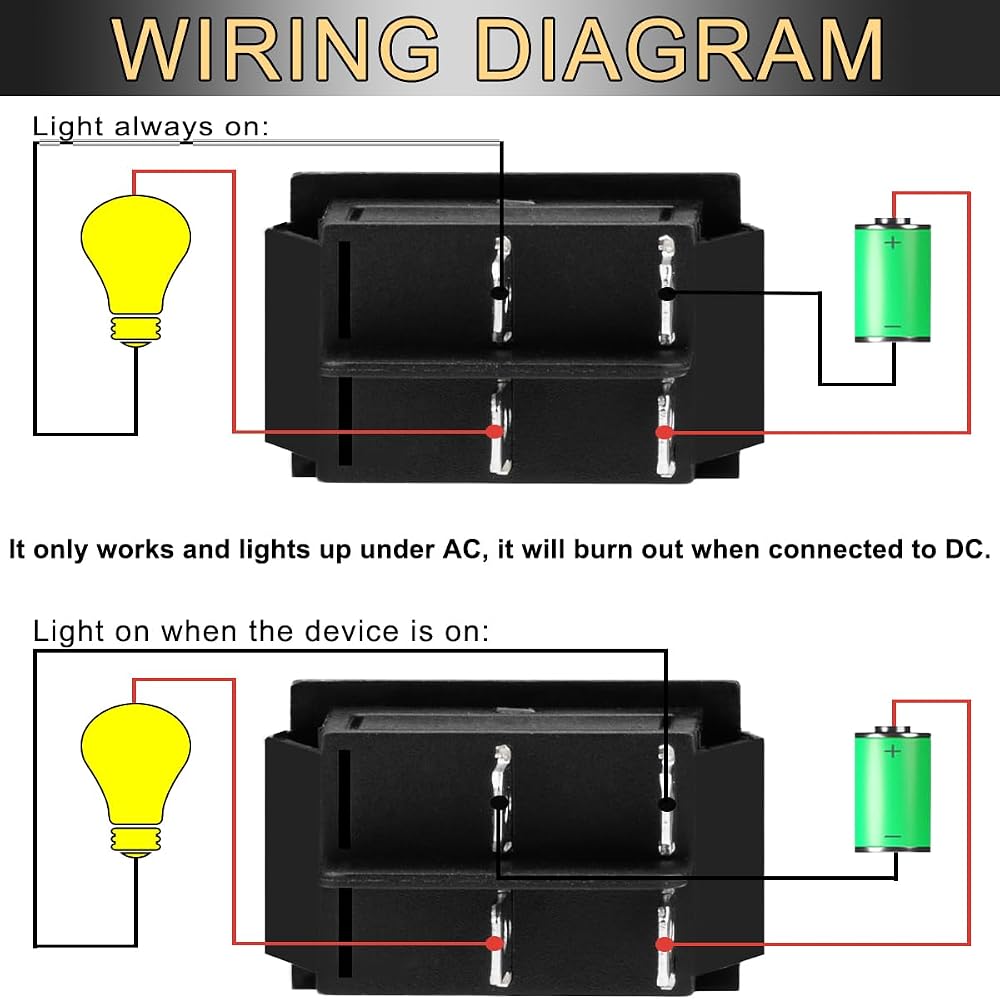

【16A 250V AC】Rocker switches are rated for 16 amps (A) and 250 volts (V) in alternating current (AC) circuits. This means the switch can safely operate up to these parameters. It only works and lights up under AC, it will burn out when connected to DC!
【20A 125V AC】Rocker switches are rated for 20 amps in AC circuits, but the voltage rating is reduced to 125 volts. This configuration is suitable for applications where higher current is required but lower voltage is required.When the switch is on, the switch light will illuminate to indicate the device's operating status.
【Wide Application】KCD4 Rocker Switch is suitable for cars, boats,yacht, lights, water dispensers, treadmills, coffee pots, speakers, electric cars, motorcycles, massage machines, remote control toys, monitoring equipment, medical equipment, industrial equipment, testing equipment,household appliance, etc.
【No Polarity Involved】The four pins of the KCD4 rocker switch do not involve polarity, because the rocker switch is a mechanical switch used to control the on and off of the circuit. Its four pins are mainly used to fix the circuit board or casing and are not directly involved in controlling the flow of current.
【Contact Material】KCD4 Rocker Switch uses materials with high conductivity to reduce energy loss and heat generation. Not only does it have excellent conductivity, it also has good wear resistance and arc resistance, ensuring that the switch maintains stable electrical performance during frequent opening and closing.

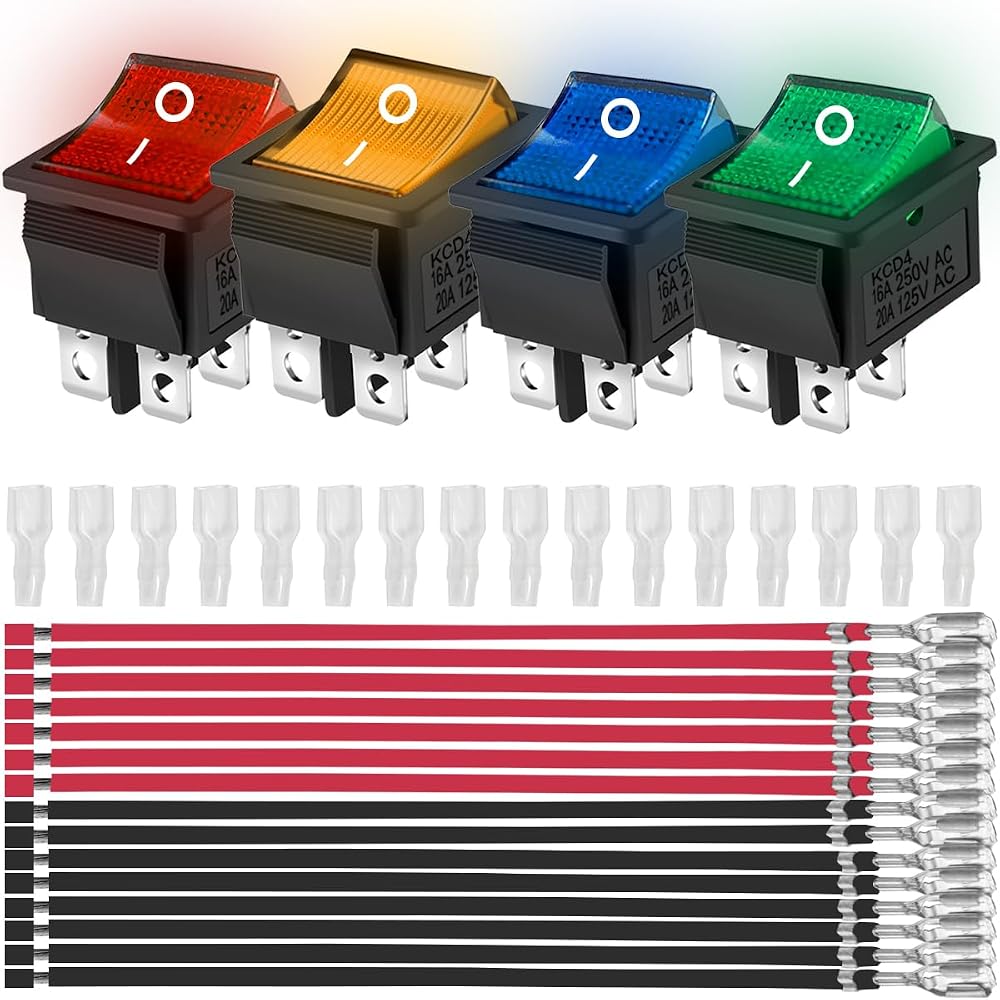

【Package Include】3 Yellow KCD4 Rocker Switch 6 Red Terminal Wire with Reed 6 Black Terminal Wire with Reed 12 Transparent Sheath.

وصف

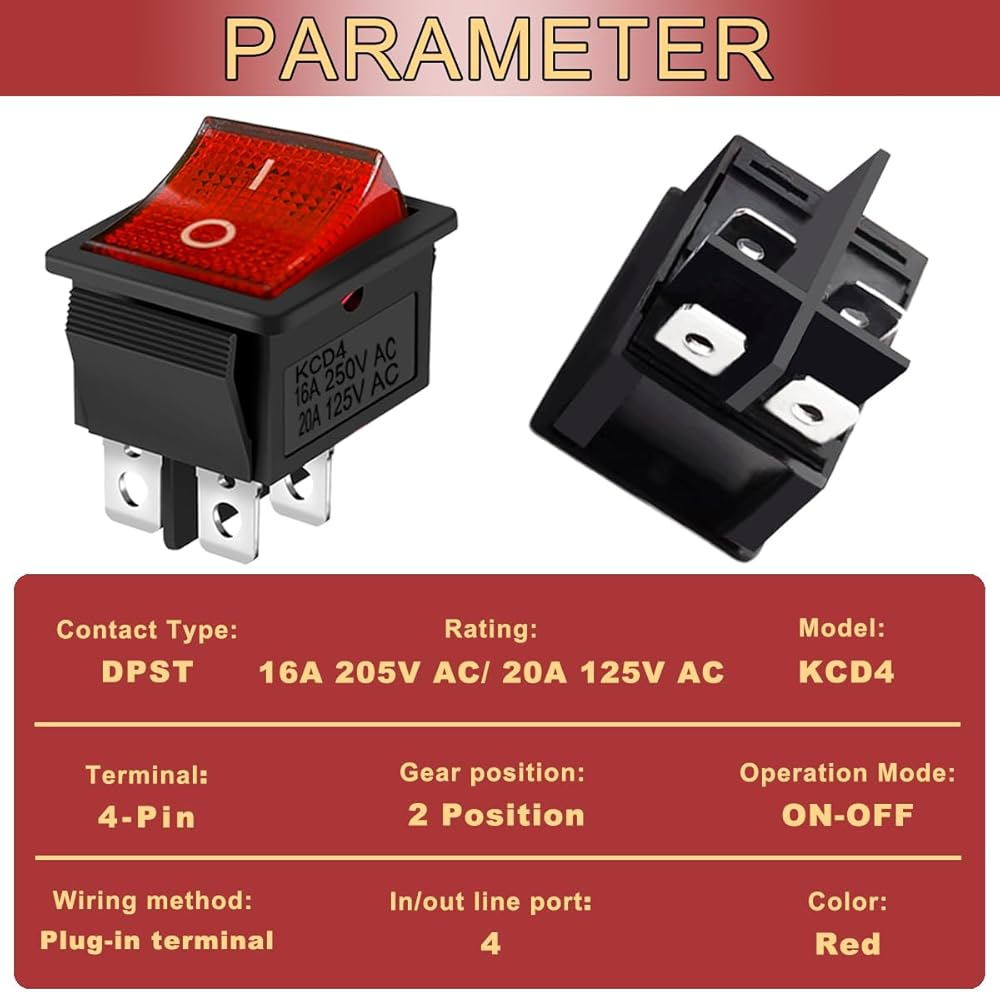

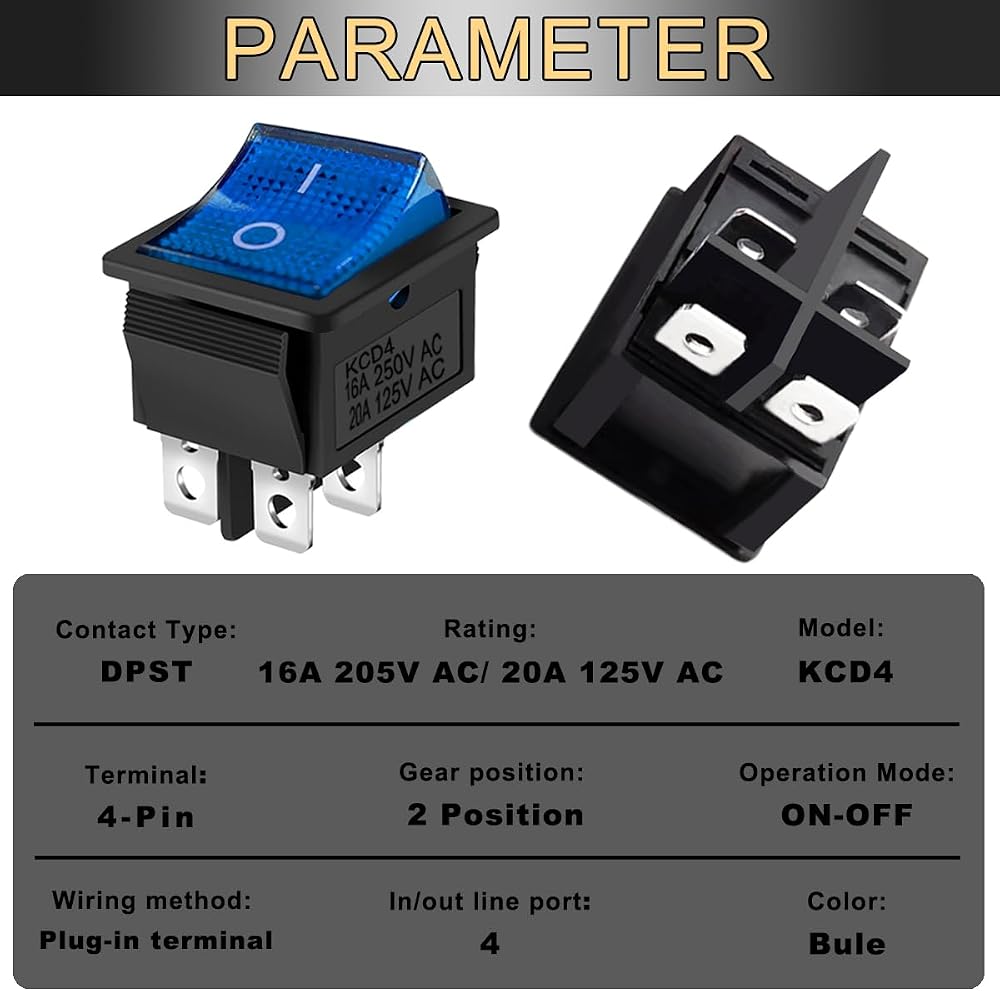

Detail:
Product name: Boat Rocker Switch
Model number: KCD4
Gear position: 2 Position
Foot position: 4 Pin
Rating:16A 250V AC/20A 125V AC

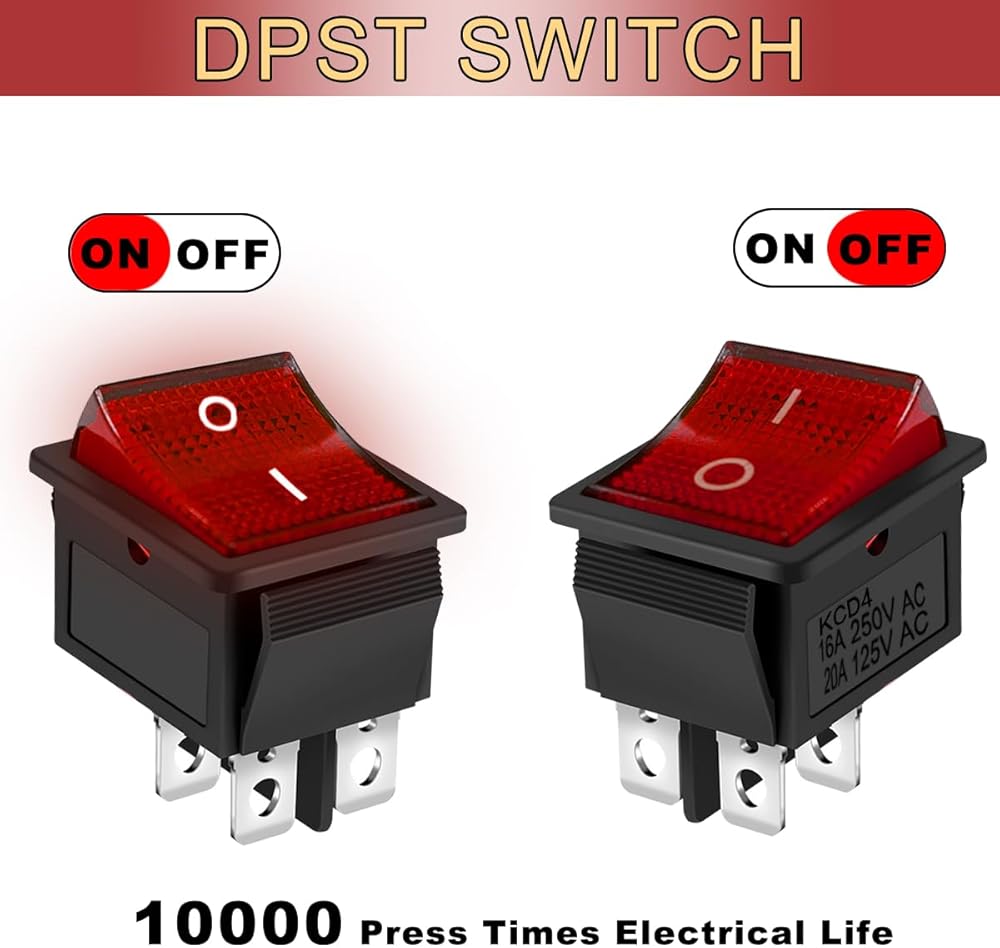

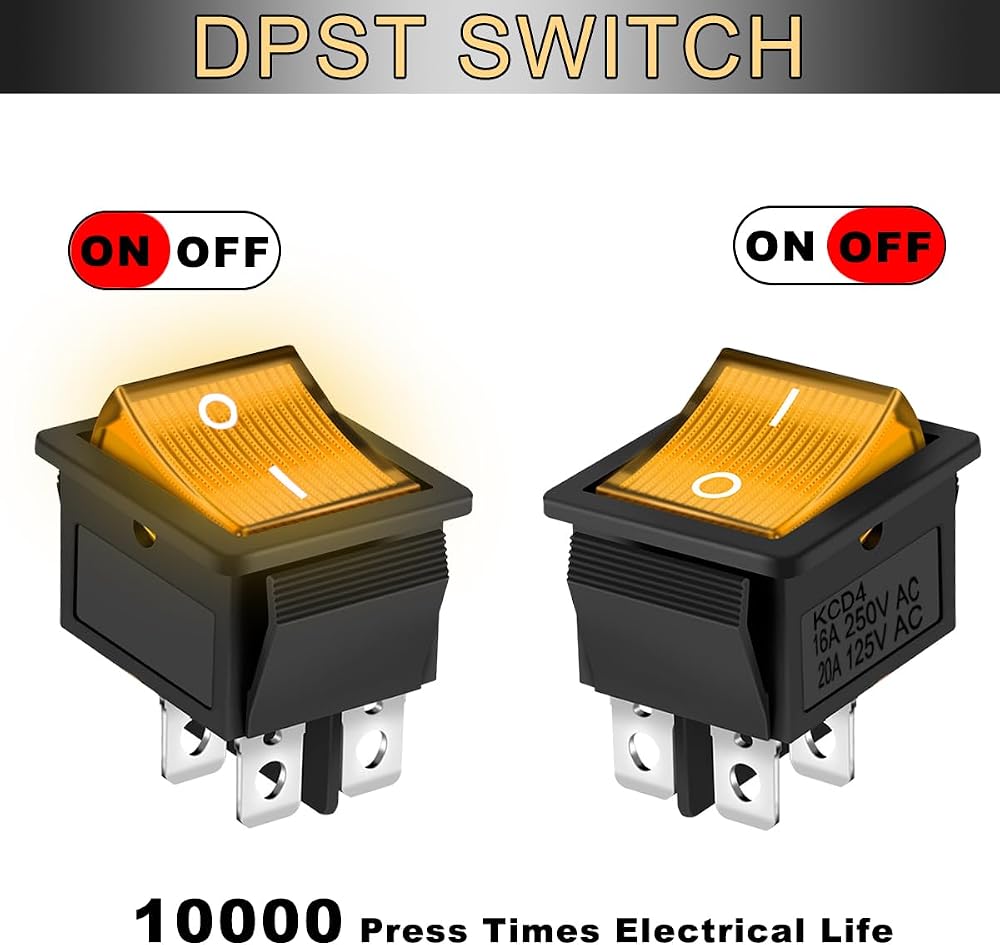

Circuit:ON-OFF
Operation type: Self-locking
Wiring method: Plug-in terminal/welding

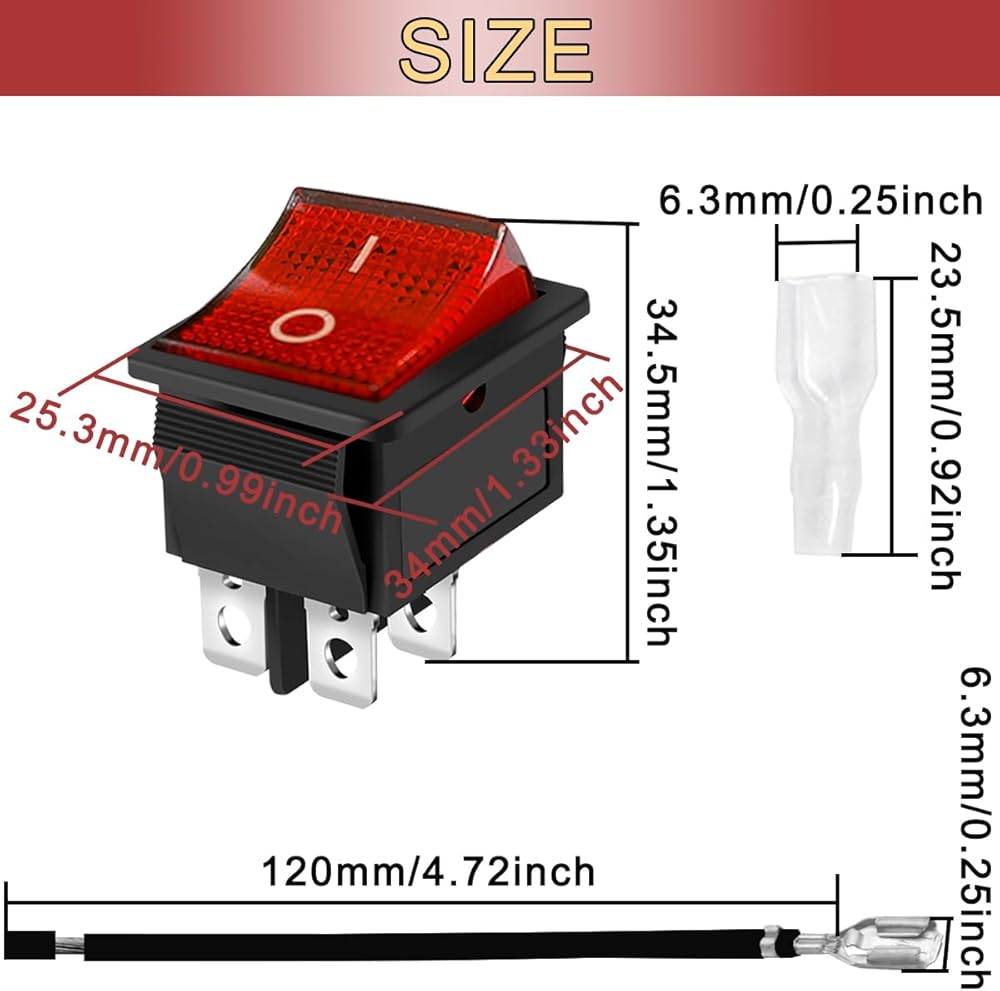

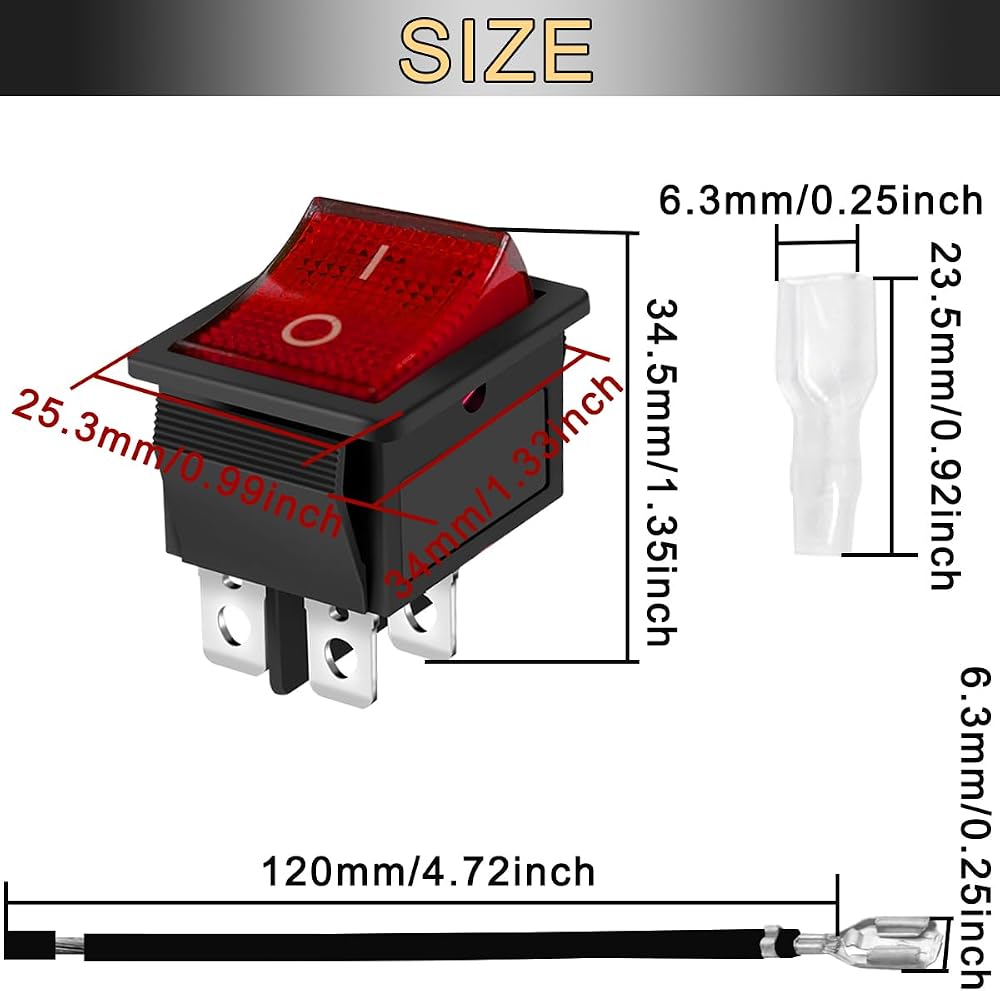

Size: 34mm x 25.3mm x 34.5mm/ 1.33inch x 0.99inch x 1.35inch(L x W x H)

Product name: Terminal Wire with Reed
Terminal Wire Length: 120mm/4.72inch
Reed length: 1.95mm/0.07inch
Reed Inner diameter: 6.3mm/0.25inch
Reed Outer diameter: 7.1mm/0.28inch
Wire Gauge:20AWG

Product name:Transparent Sheath
Inner diameter: 6.3mm/0.25inch

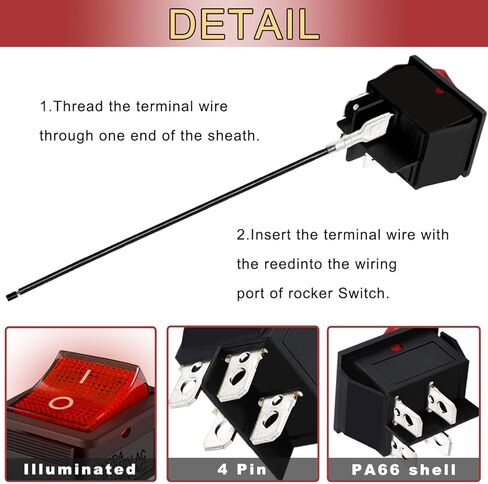

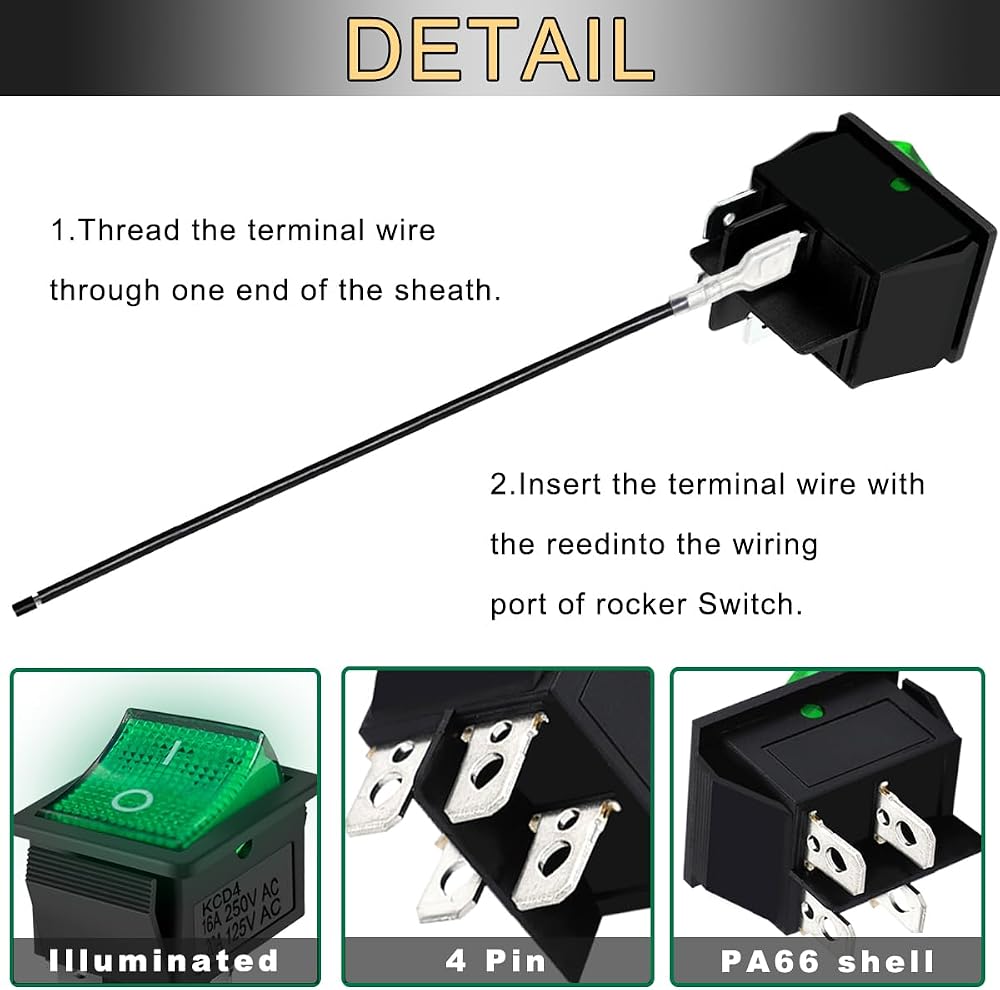

Installation steps:
1. Pass the terminal wire through one end of the sheath, making sure the sheath can completely cover the terminal and part of the insulation layer.
2. Insert the terminal wire with reed the head into the wiring port of the rocker switch.
3. Turn on the power and test whether the switch function is normal.

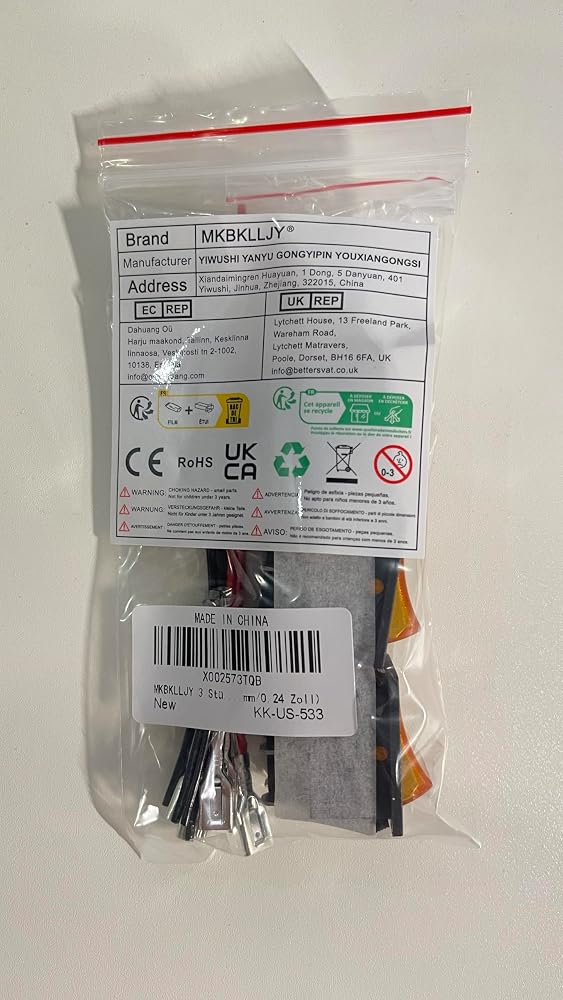

Package Include:
3 Yellow Boat Rocker Switch
6 Red Terminal Wire with Reed
6 Black Terminal Wire with Reed
12 Transparent Sheath
