✔ Specification:
Item Type: Water Switch
Model: FS-04 6-Point (G3/4) double male thread proximity switch
Working Voltage: 0-48(VDC)
Rated Current: 0.5(A)
Rated Power: 70W
Working Temperature: -40 ~ 120(℃)
Applicable Medium: Water / oil
Installation: Horizontal / vertical
Material: 304 stainless steel
Size: > 1.2L / Min
Thread Size: Double male thread G3/4in
Water Inlet and Outlet Diameter: φ11mm

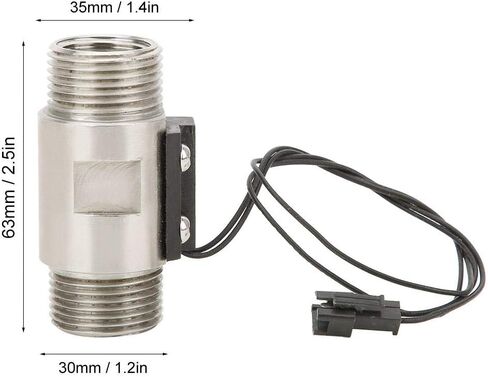

Size: Approx. 63 x 35 x 30mm / 2.5 x 1.4 x 1.2in

✔ Package List:
1 x Water Switch

✔ The working principle of the water switch is that an upward lifting force a magnetic valve core close to and drives a reed switch to generate a when the water flows.
✔ The advantage of the water switch is that the water pressure is low. When the magnetic ring inside the piston is pushed to the position of the reed switch, the reed switch generates a .
✔ Reed switch water switch has stable working performance and is widely used in various equipment. And some piston water switches can adjust the reed switch operating point to change the , so it is the first choice for various types of equipment.
