Description

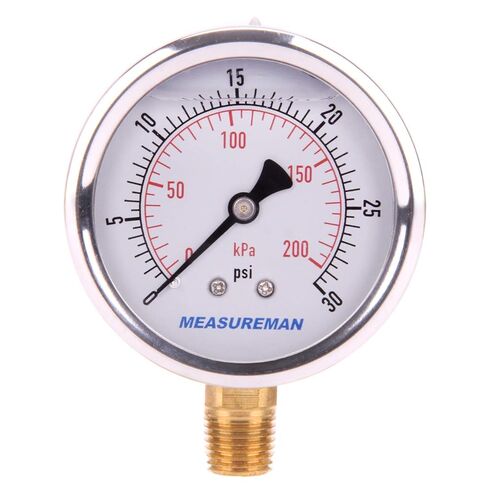

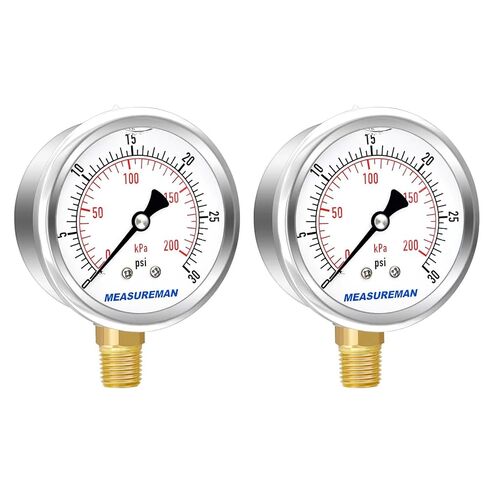

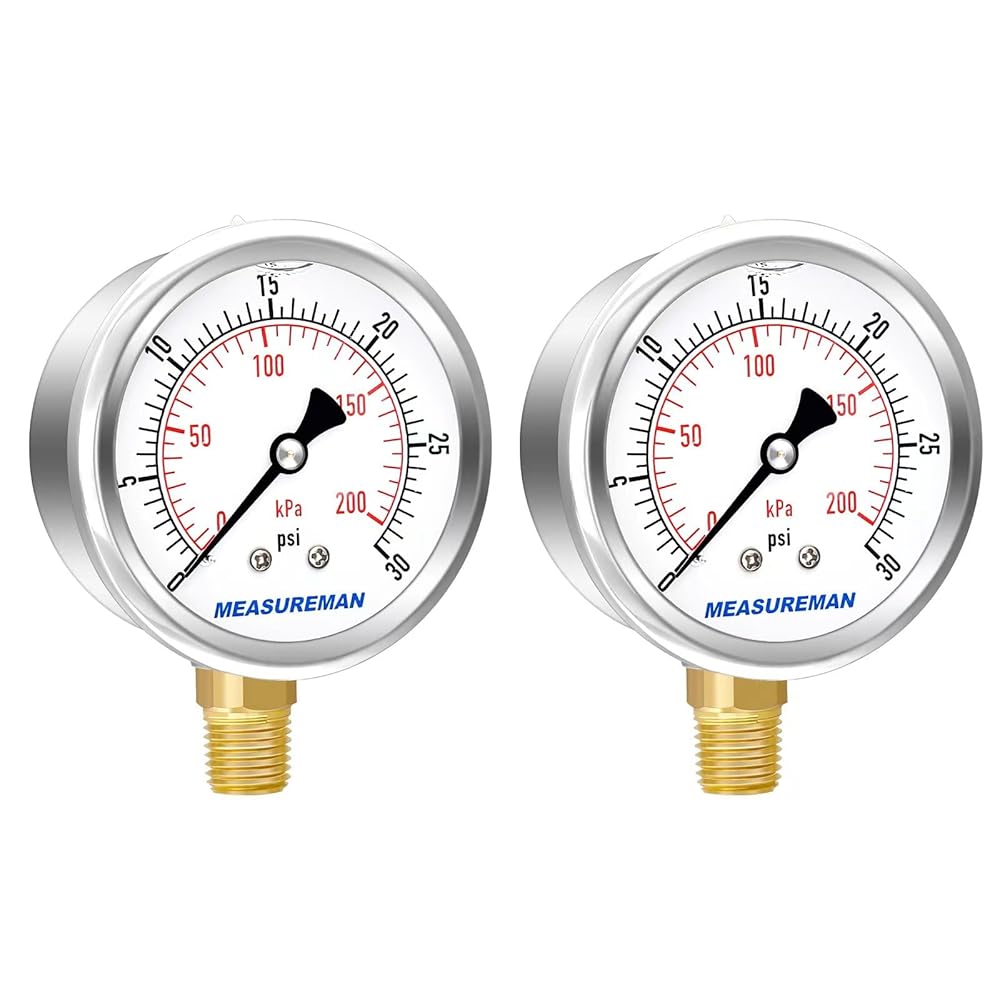

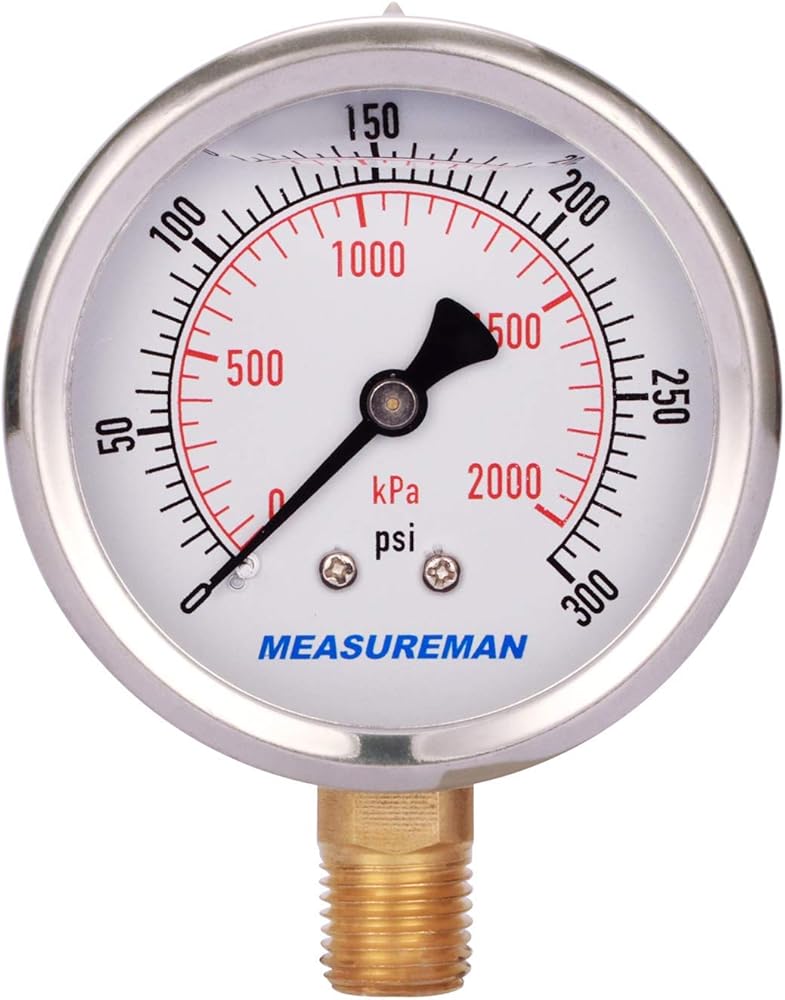

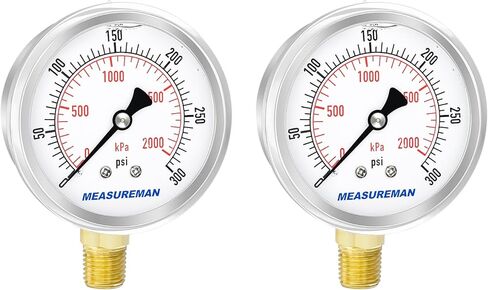

This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.

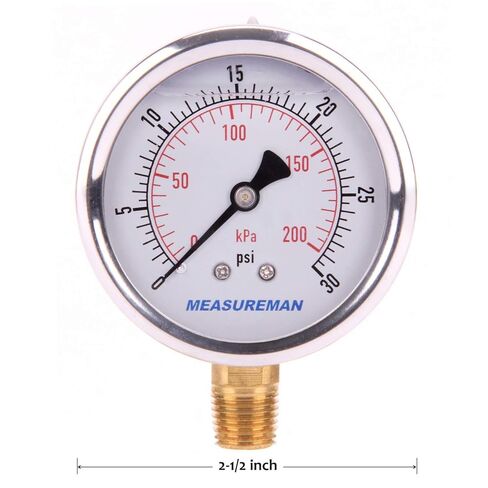

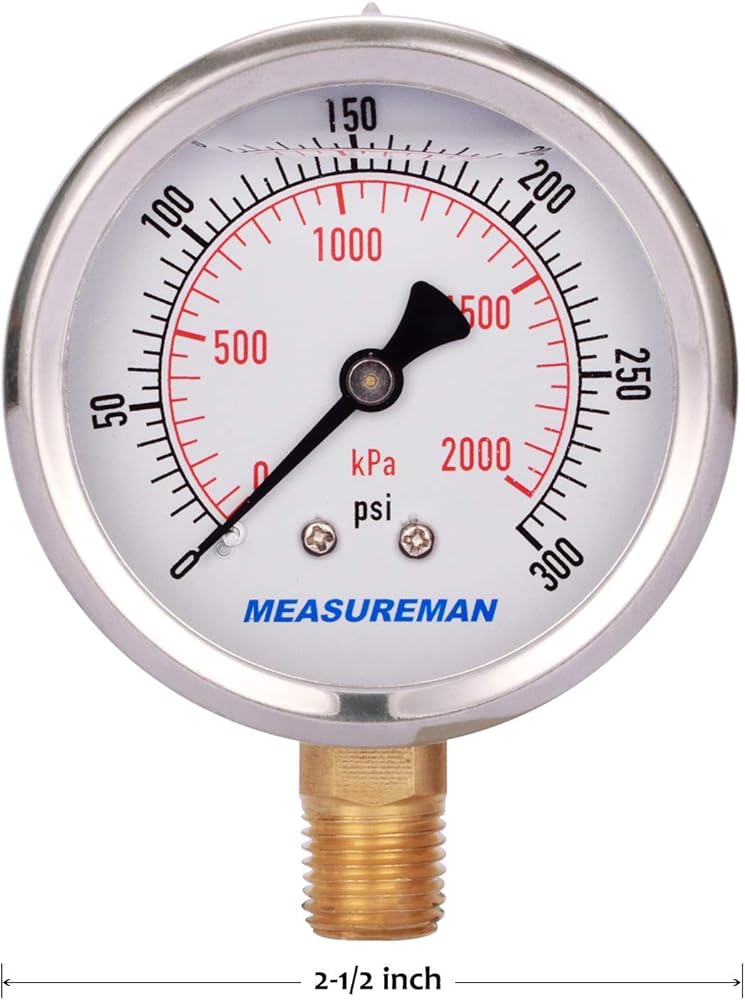

Dial size: 2-1/2"

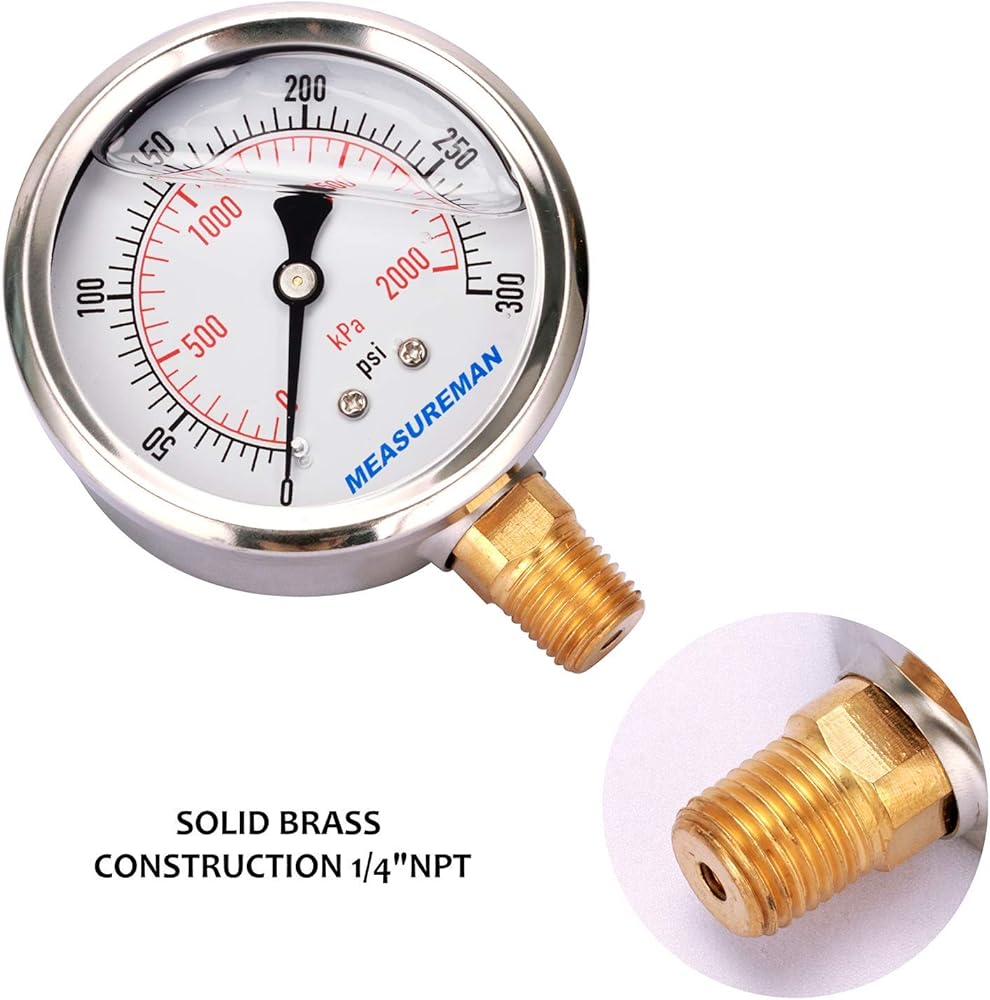

Process connection: 1/4"NPT lower mount

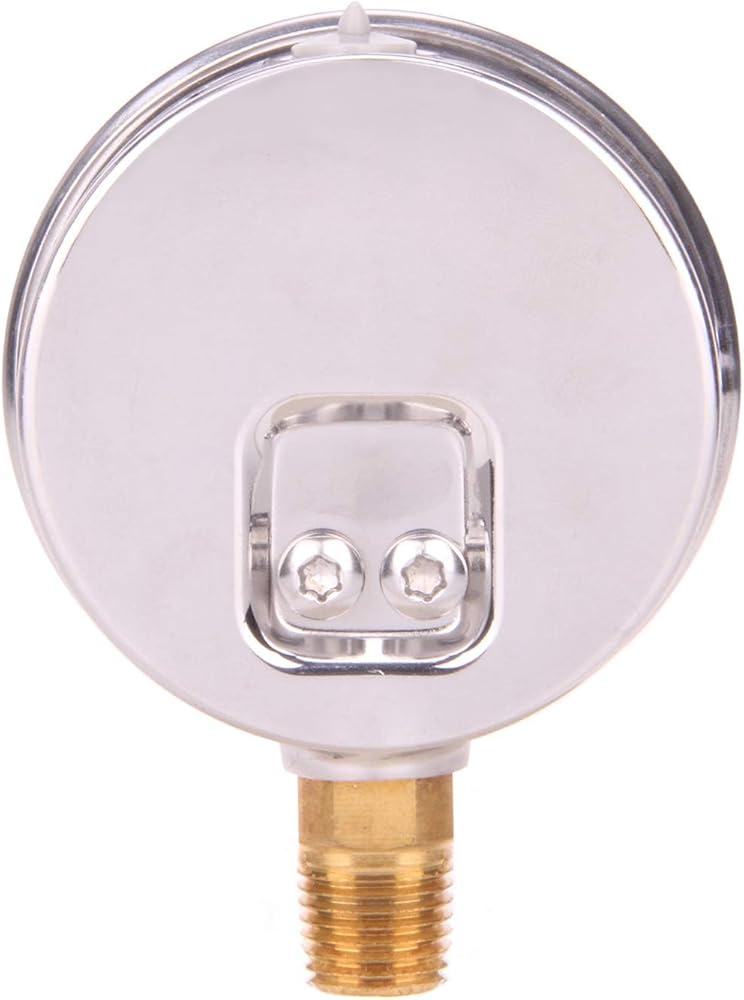

Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Boudon tube: Copper alloy
Movement: Brass

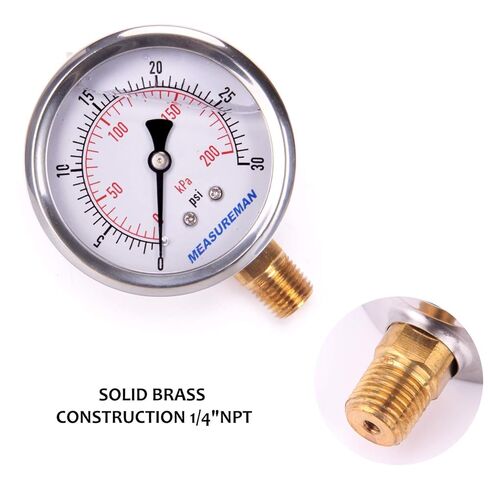

Connection: Brass, one piece design
Oil cap: rubber, gray color

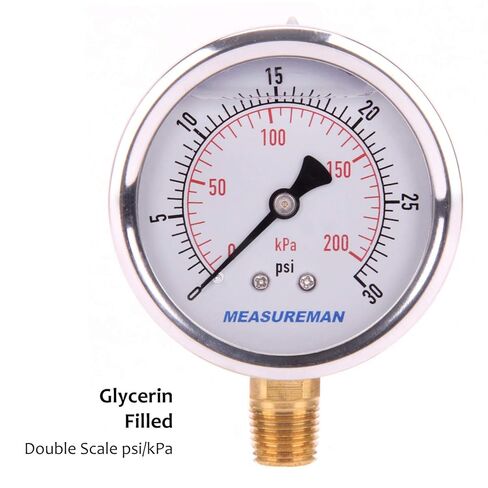

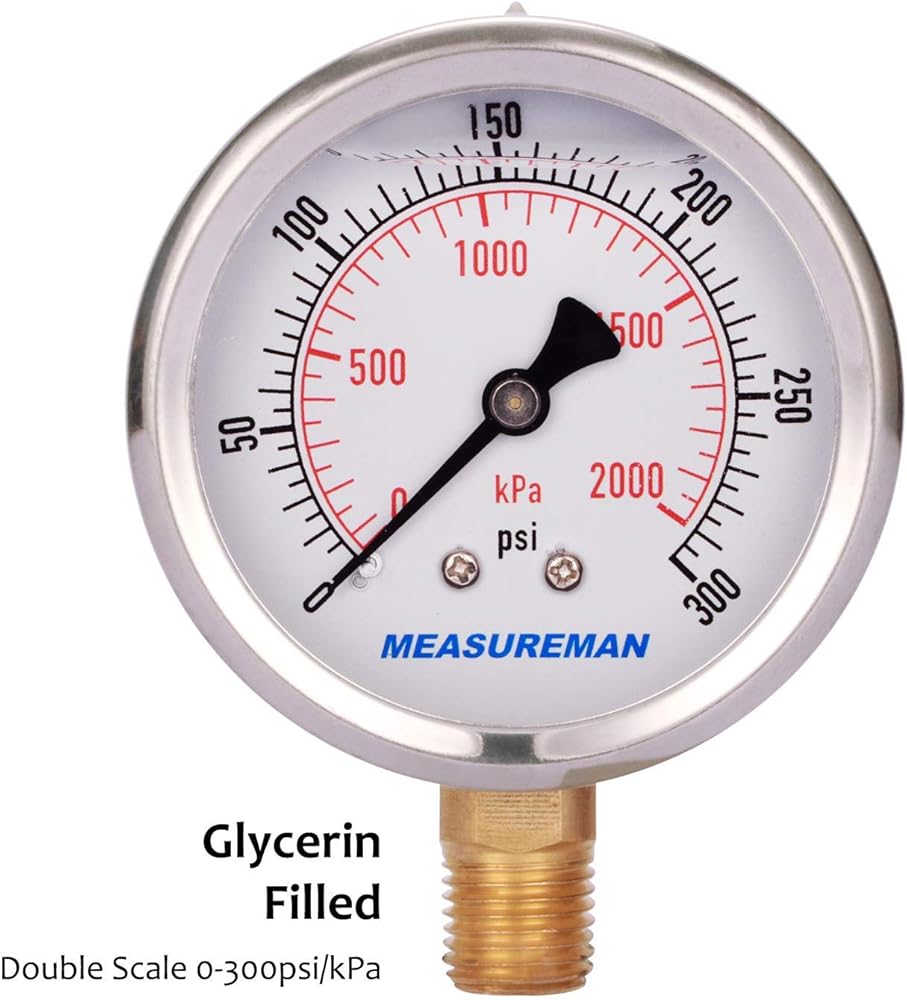

Filling: Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class: IP67
Accuracy: +/-3-2-3%
Range: 0-100psi/kpa dual scale, psi outside, kpa inside
Working temperature:-4 to 140 deg F/-20 to 60 deg C
Ambient temperature:140 deg F/60 deg C maximum

Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
