Near-IR Bandpass Filter for Machine Vision, BP Series, Broad Bandwidth, Range: 820-910nm, BP850-25.4 C-Mount, Fits C-Mount Cameras in Kuwait Near-IR Bandpass Filter for Machine Vision, BP Series, Broad Bandwidth, Range: 820-910nm, BP850-25.4 C-Mount, Fits C-Mount Cameras in Kuwait Near-IR Bandpass Filter for Machine Vision, BP Series, Broad Bandwidth, Range: 820-910nm, BP850-25.4 C-Mount, Fits C-Mount Cameras in Kuwait Near-IR Bandpass Filter for Machine Vision, BP Series, Broad Bandwidth, Range: 820-910nm, BP850-25.4 C-Mount, Fits C-Mount Cameras in Kuwait Near-IR Bandpass Filter for Machine Vision, BP Series, Broad Bandwidth, Range: 820-910nm, BP850-25.4 C-Mount, Fits C-Mount Cameras in Kuwait Near-IR Bandpass Filter for Machine Vision, BP Series, Broad Bandwidth, Range: 820-910nm, BP850-25.4 C-Mount, Fits C-Mount Cameras in Kuwait Near-IR Bandpass Filter for Machine Vision, BP Series, Broad Bandwidth, Range: 820-910nm, BP850-25.4 C-Mount, Fits C-Mount Cameras in Kuwait Near-IR Bandpass Filter for Machine Vision, BP Series, Broad Bandwidth, Range: 820-910nm, BP850-25.4 C-Mount, Fits C-Mount Cameras in Kuwait

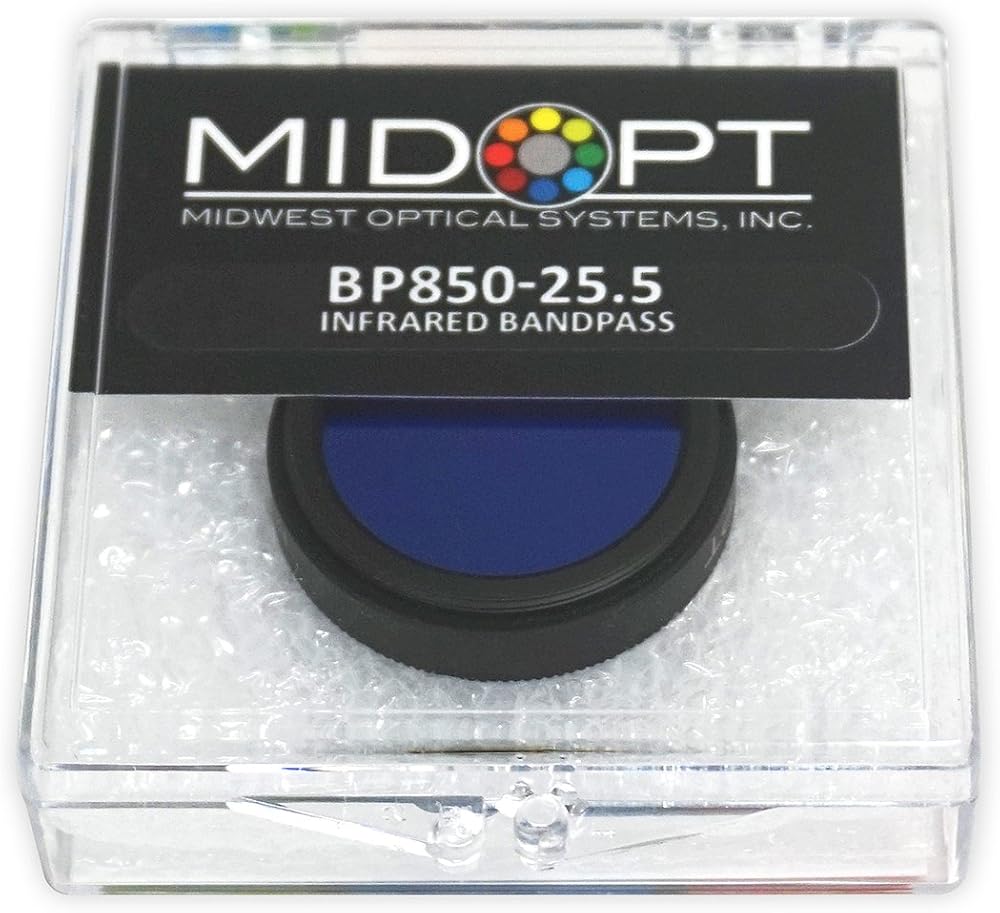

Near-IR Bandpass Filter for Machine Vision, BP Series, Broad Bandwidth, Range: 820-910nm, BP850-25.5, Fits M25.5 Lens Filter Thread

KWD 63
Brand
MidOpt
Category
Photo filters
Weight
20 g
SizeM25.5
– 1 +

Special Features

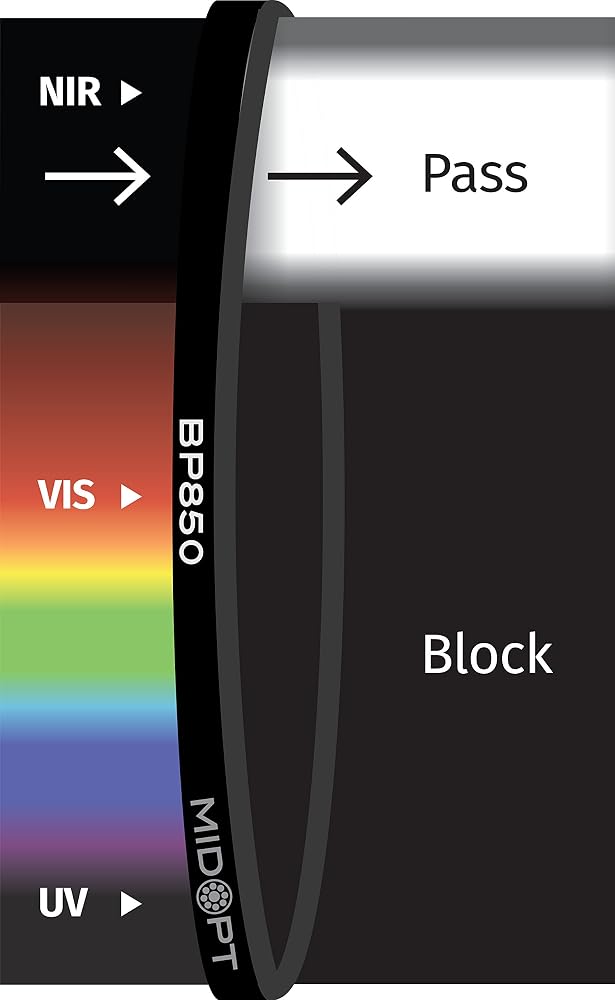

  • Near-IR bandpass filter, designed for use with near-IR LED lighting (840nm & 850nm) and outdoor applications
  • Bandwidth FWHM: 160nm | Useful Imaging Range: 820-910nm
  • Peak transmission greater than 90% | Tolerance +/- 10nm
  • StablEDGE design to be less susceptible to the effects of angular shifting when placed in front of short focal length (<12mm) camera lenses
  • Surface Quality: 40/20 scratch/dig

Description

MidOpt BP850 filters are recommended when using high-power 830-850nm LED or laser diode lighting to improve contrast in surveillance applications or when inspecting in the infrared. This filter features high peak transmission and has durable, robust coatings that are safe in year-round conditions with heat, humidity or air quality issues.

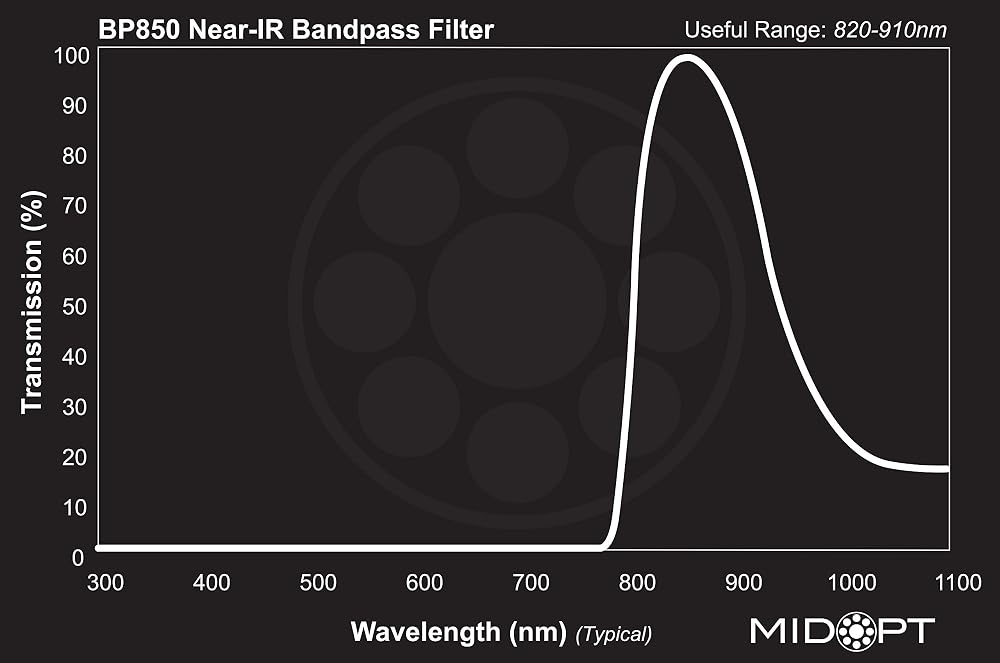

Useful Range : 820-910nm
FWHM : 160nm
Tolerance : +/- 10nm
Peak Transmission : ≥90%
Surface Quality : 40/20
Compatible LED : 840nm, 850nm
BP850 filters are double-side polished for exceptional parallelism and optical flatness. They're all designed with StablEDGE technology, which offers superior out-of-band blocking, reduces angular dependency and minimized the effects of short-shifting.
Industries: Machine Vision, Factory Automation, Security and Surveillance, Licence Plate Recognition, Medical and Life Sciences, Agricultural Inspection, Aerial Imaging, Motion Analysis, Photography and Cinematography.
