BestParts R8 FMB27 7/16-20UNF Shank Face End Mill Arbor and 3.15"/80mm Cutting Diameter 6 Flute MFWN90 80-27-6T CNC Face End Milling Shell Cutter with 10Pcs WNMU080608 Carbide Inserts and T15 Wrench

KWD 28
Brand
BestParts
Category
Cutting Tools
Weight
1.1 kg
– 1 +

Special Features

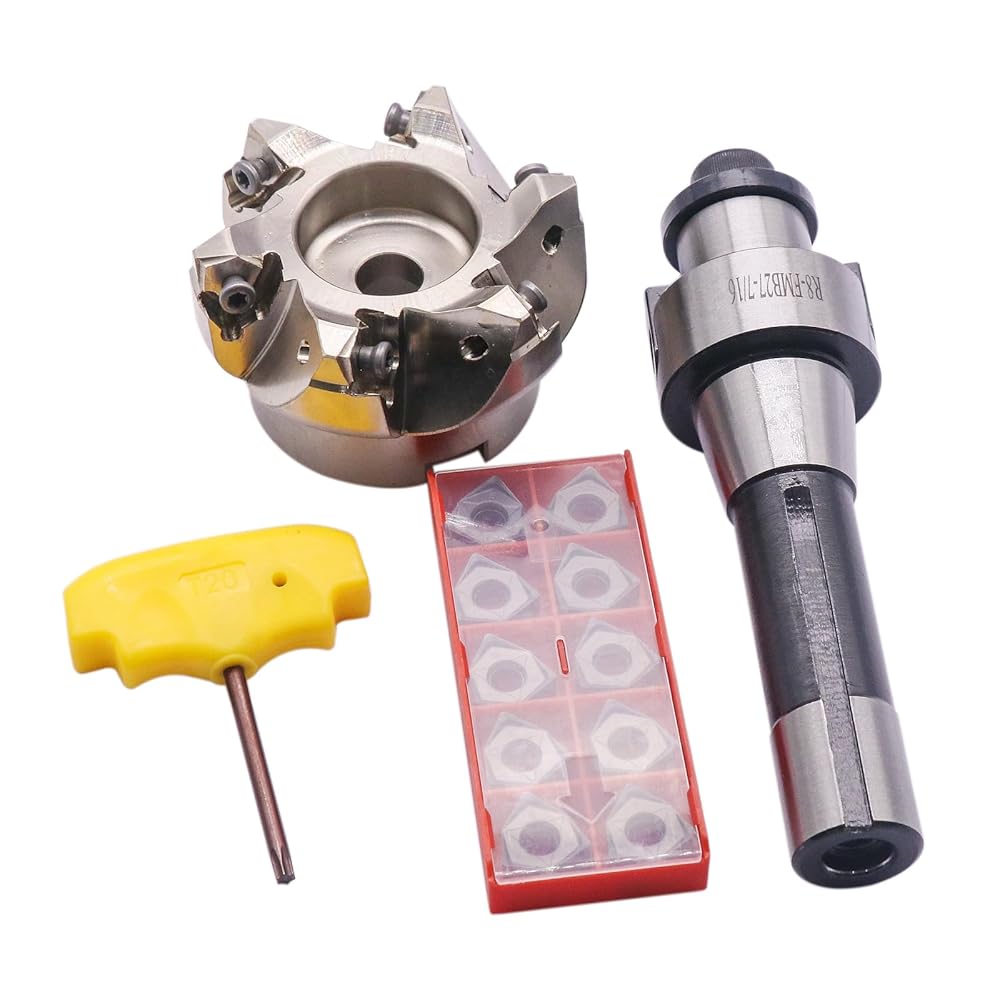

  • Set includes: 1 x MFWN90 80-27-6T Cutter, 1 x T15 Wrench, 10 x WNMU080608 Carbide Inserts as pictured.
  • R8 FMB27 Arbor: 7/16-20 Draw Bar Threads, 27mm/1.06In Arbor Hole Diameter.

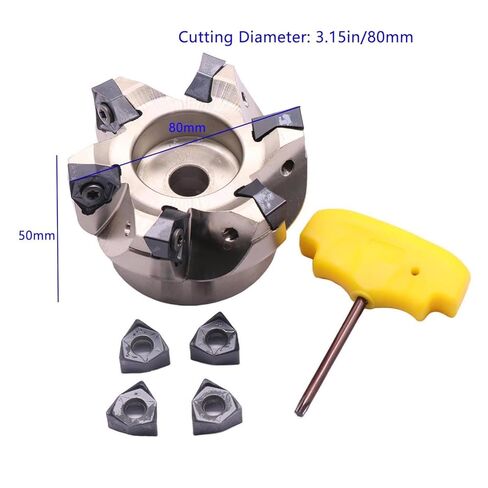

  • MFWN90 80-27-6T Face End Mill Cutter: 80mm/3.15in Cutting Diameter, 6 Flutes, 27mm/1.06In Bore Diameter.
  • WNMU080608 Carbide Insert: Rough Machining Fast Feed Square milling Grain Inserts Double sided Six Corner Used for machining steel parts and iron ,for shoulder milling, face milling and slotting.
  • Function: Machining planes, grooves, and cutting off workpieces on milling machines. Milling speed and processing efficiency are high, and the surface quality of the processing is also good. It is possible to add T parts with hard skin and hardened layers, which has obvious advantages in improving product quality and processing efficiency.
  • High Quality: Made of fine quality steel, good permeability,sturdiness and durability, resistance to multiple impacts,fine durability. Smooth surface, comfortable feeling, nice appearance.
  • Good Performance: Milling rotary tool is screw locking, the chip large space, good chip removal, edge can fit a variety of materials.
  • Widely Application: This shank face mill arbor set is designed for shoulder milling, face milling and slotting, mainly used for CNC machining centers, CNC engraving machines. It can also be installed on an ordinary milling machine to process some harder and less complex heat-treated materials.

Description

Specification:
Body made of high quality steel, durable
Suitable for face milling, should milling side milling fine machining, roughing, slotting and copying

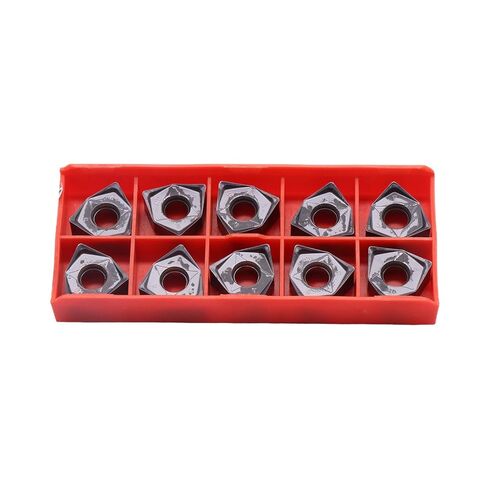

Carbide Insert
Material: cemented carbide
Model: WNMU080608

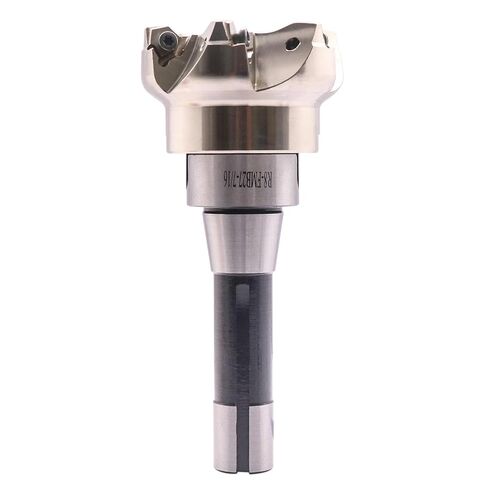

Face Mill Arbor
Model: R8-FMB27
Bore Diameter: 1.06In/27mm
Draw Bar Threads: 7/16-20

Milling Cutter

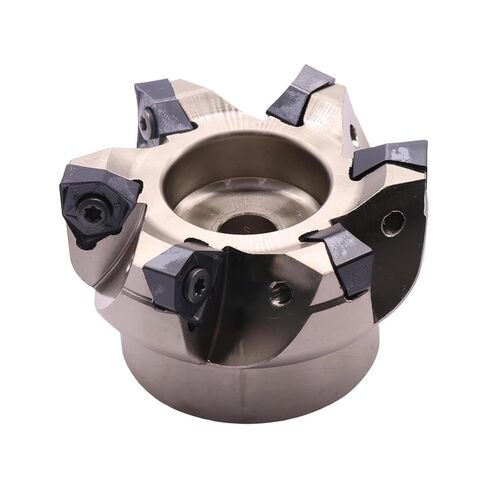

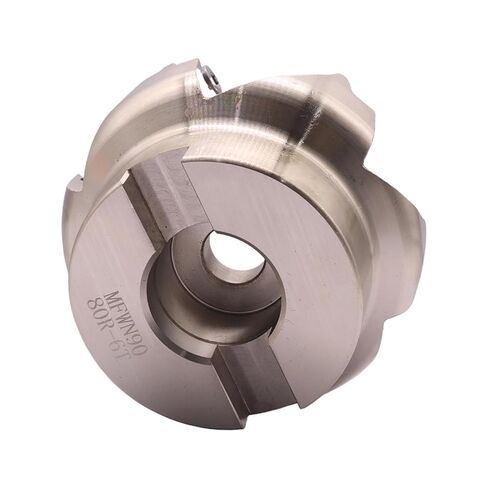

Model: MFWN90 80-27-6T
Flutes: 6-Flute
Cutting Diameter: 3.15in/80mm

Features:
90° indexable milling cutter, matching with standard WNMU080608 insert
Made of alloy steel with high hardness and strength to ensure long service life
High vibration-absorbing performance, improve the surface finish of the workpiece
Set including 10pcs WNMU080608 inserts. Rough Machining, Fast Feed Square milling Grain lnserts, Double sided SixCorner available in use
Suitable for face milling, should milling side milling fine machining, roughing, slotting and copying

Package included:
1 x MFWN90 80-27-6T
1 x R8 FMB27 Arbor
1 x T15 Wrench
10 x WNMU080608 Carbide Inserts as pictured
