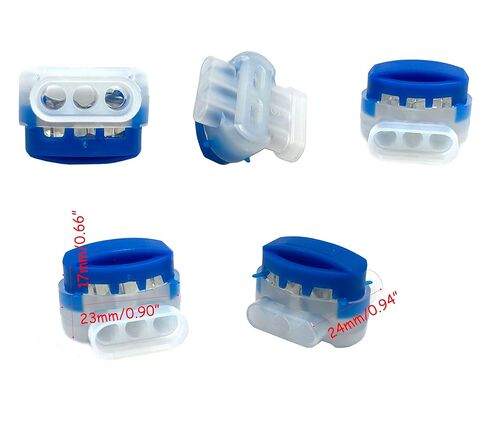

What you will get:30pcs 2.4*2.3*1.7cm (L*W*H) self-striping wire connectors for 22-14 AWG wires.
Material:Made of flame retardant nylon,moisture-proof seal with good electrical conductivity and corrosion resistance.
Safety to use:Electrical 3-wire connector can withstand voltages up to 600V and suit for scope:0.65-1.63mm,include insulated wire diameter 3.18mm.
Easy to use:Clip the wire then insert the unstripped ends into the clip. When the blue plunger is pressed in, a metal knife cuts the insulation and makes contact with the wires to short them together. There is a clear silicone gel inside the clip to keep the moisture out.
Widely application:Electrical IDC 314-BOX wire connectors can be connected to 2 or 3 wires. All of them could be used in robot lawn mower,Landroid mower, lectric dog fences,also worked well for trailer wiring,automotive electronic equipment and and underground cable assembly.

وصف

Description:
Feature:
These are a great alternative and with the grease in the connectors it should resist corrosion.
Electrical IDC 314 connectors can withstand voltages up to 600V and can connect 22-14 AWG wires.
It would ooze out some grease on the wires, but that means it should be full inside and protect the wires.
Follow the instructions. Then put the wires all the way in and squeeze the connector. These connectors are so easy to use.
Specification:
Material:Nylon
Wire gauge:for 22-14 AWG
Application diameter:0.65-1.63mm,include insulated wire diameter 3.18mm

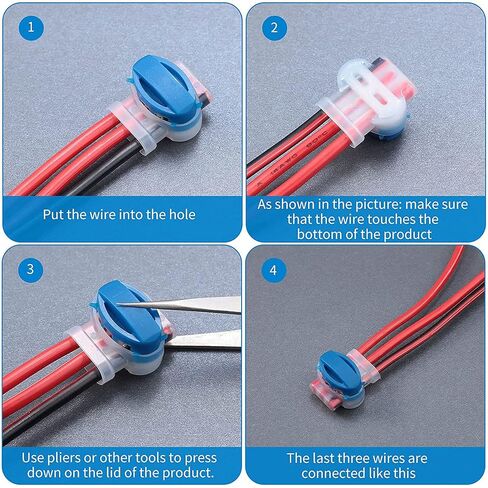

How to use:
1.Twist the double wire to be connected.
2.Hold the end of the twisted cable at 19mm.(note:Do not damage the insulation).
3.Holding the terminal block with the button down, insert the double wire all the way down the port.
4.Use crimping pliers to crimp the terminals.

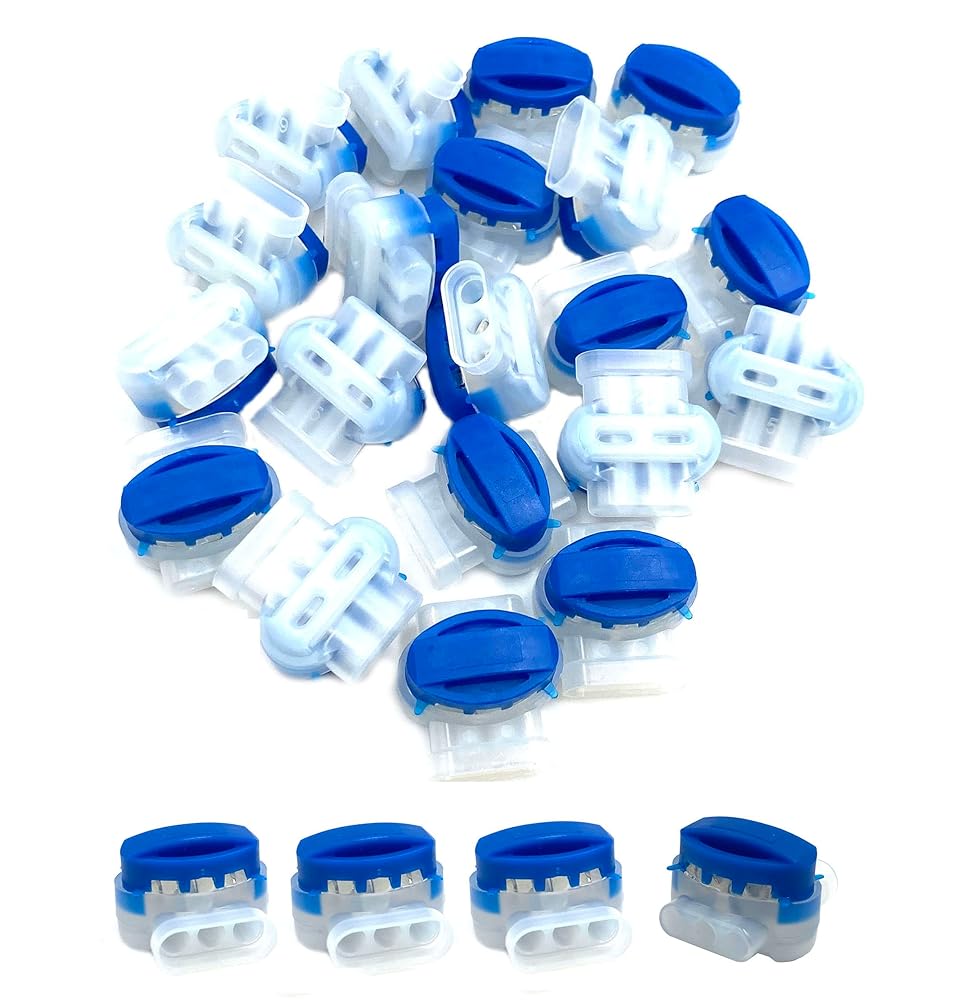

Package list:30pcs 3 wire connectors electrical idc
