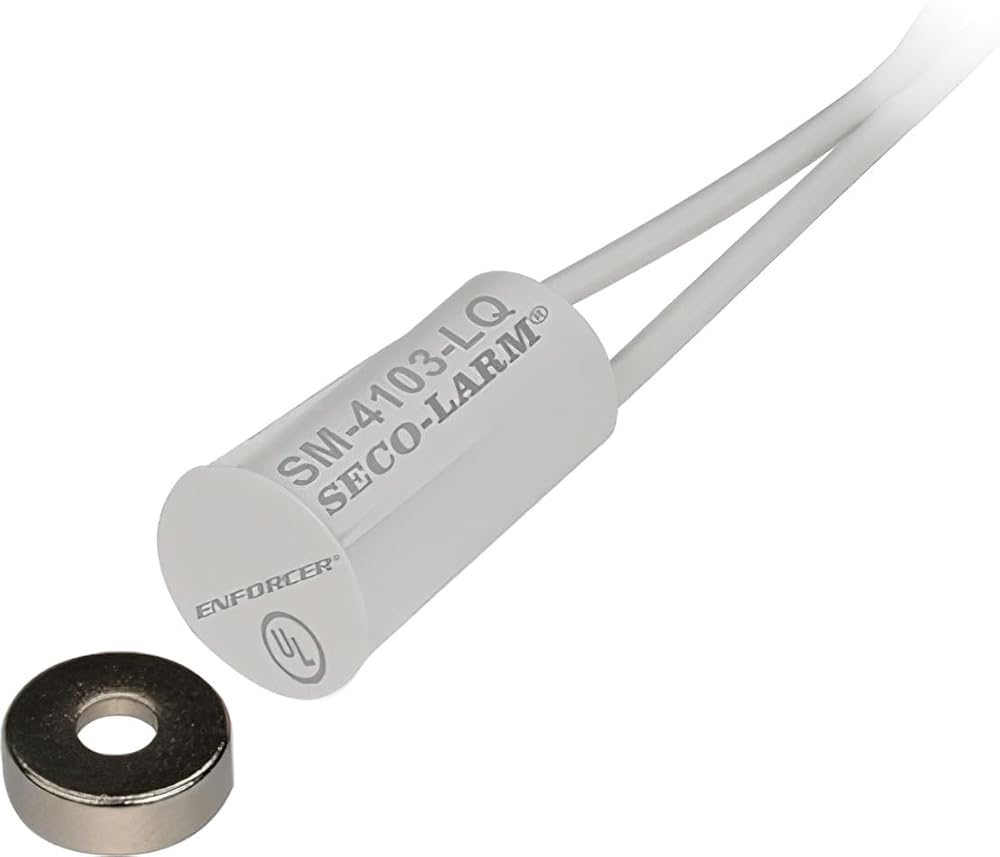

Seco-Larm SM-4103-LQ/W مفتاح الاتصال المغناطيسي المثبت على الحائط، أبيض؛ فجوة 0.5 بوصة؛ 18 بوصة؛ مفتاح 0.56 بوصة؛ 0.37 بوصة مناسب للضغط؛ بلاستيك ABS عالي التأثير

KWD 5.500
ماركة
Seco-Larm
وزن
91 g
– 1 +

مميزات خاصة

  • Used for protecting sliding doors and windows where space is limited
  • Rare-earth magnet with nickel plating to protect against chipping
  • Contact reed switch is SPST, ruthenium on gold under-plating, for a long life
  • High-impact ABS plastic
  • Miniature size assures ease of concealment

وصف

Seco-Larm SM-4103-LQ/W Enforcer Recessed-Mount Magnetic Contact Switch, White; 0.5" Gap; 18" Leads; 0.56" Switch; 0.37" Press-fit; High-impact ABS Plastic

Key Features:
- Used for protecting sliding doors and windows where space is limited
- Rare-earth magnet with nickel plating to protect against chipping
- Contact reed switch is SPST, ruthenium on gold under-plating, for a long life
- High-impact ABS plastic
- Miniature size assures ease of concealment
- Switch and magnet have ribs for securing in holes
- 0.5" (13mm) Gap, white, with 18" (46cm) Leads and 0.56" (14.5mm) switch
- 0.37" Press-fit with stubby 0.56" switch

Specifications:
- Loop Type: Closed loop
- Electrical Configuration: N/0
- Operation Gap: 1/2" (13mm)
- Color: White
- Material - Case: High-impact ABS plastic
- Material - Terminals: 18" (46cm) leads
- Contact Rating: 1.0A@10VDC (max), 10W (max)
- Switch Cycles: 50 Million (0.1mA@5VDC)
- Switch Dimensions: 0.56 x 0.43 x 0.37 inches
