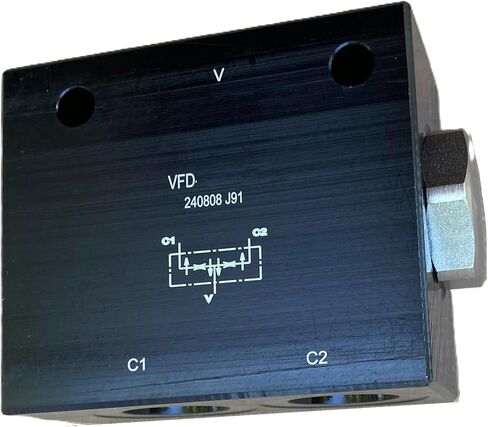

Hydraulic Flow Divider Combiner Valve (5.7 GPM (22LPM): SAE -6 ORB Ports (3/8"))

KWD 62.500
Brand
Fluidhaus
Category
Fittings
Weight
2.2 kg
– 1 +

Special Features

  • The flow divider can both equally divide flow and combine flow.
  • Flow divides from "V" to "C1" and "C2", and combines flow from "C1" and "C2" to "V". Thereby controlling your actuator speed in both directions.
  • The dividing and combining flow ration is 50:50 independent of the pressure.
  • Motors will move at the same rate without one spinning faster than the other when there is no resistance.
  • Cylinders can move in synchronous.
  • Block oxide coated steel body.
  • SAE O-ring boss ports, more resistant to leaks and threads seizing

Description

Hydraulic flow dividers equally divide flow between two motors (or cylinders) for constant synchronous speed control. Without a flow divider the flow will go to the path of resistance and one motor or cylinder will move at a different rate than the other.
