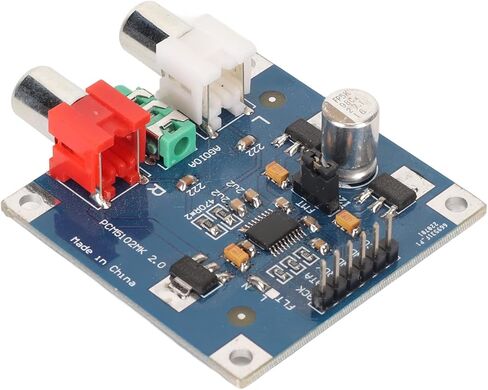

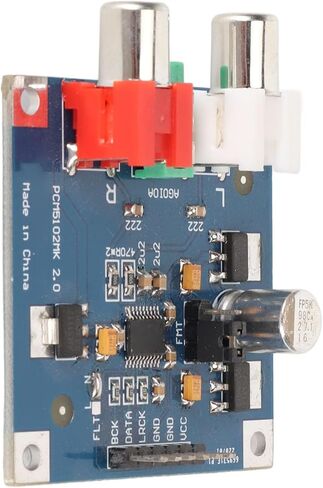

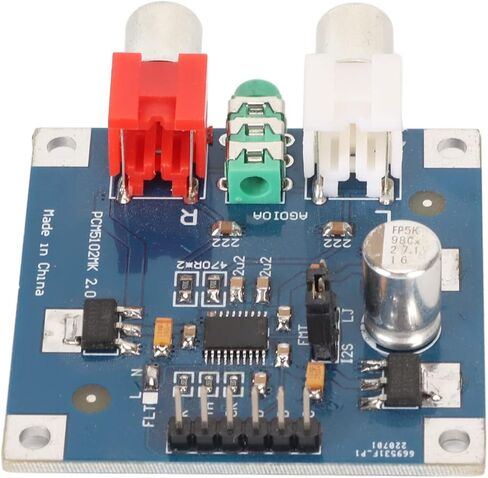

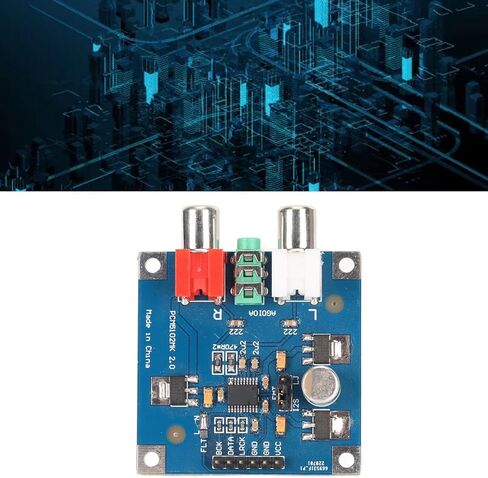

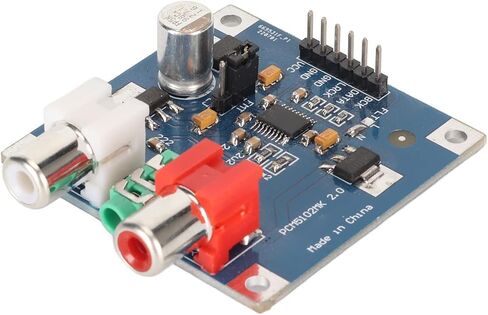

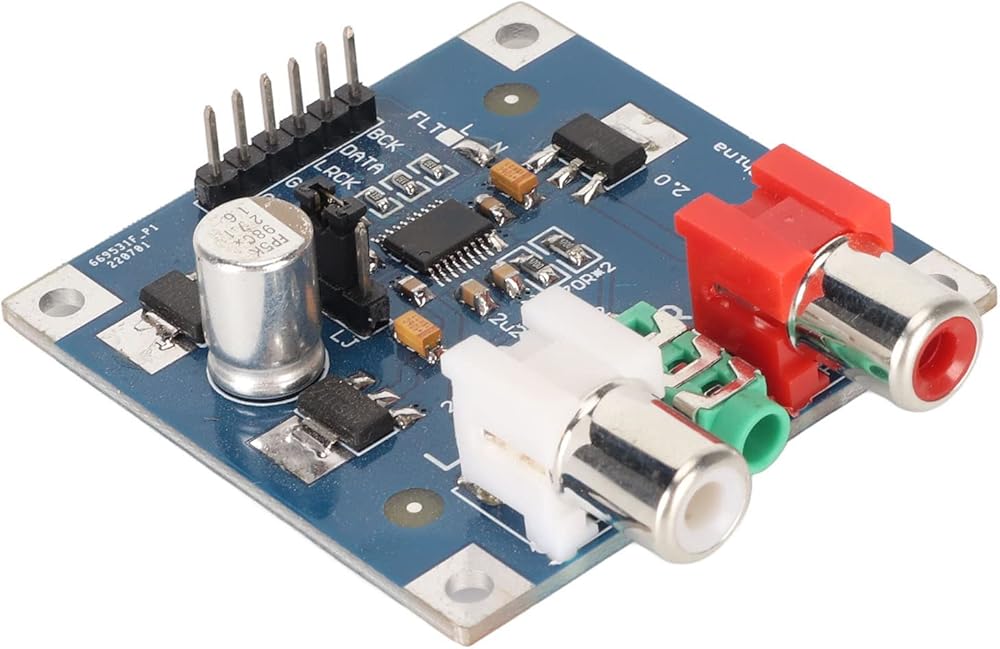

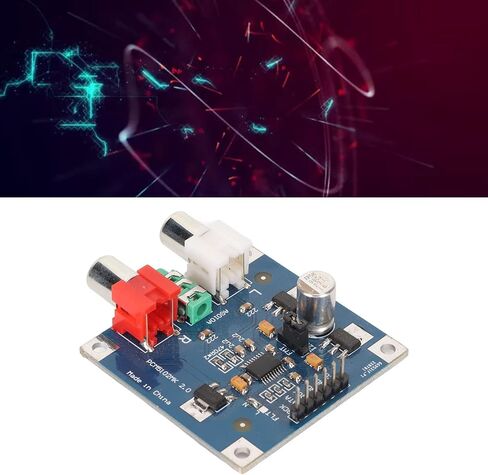

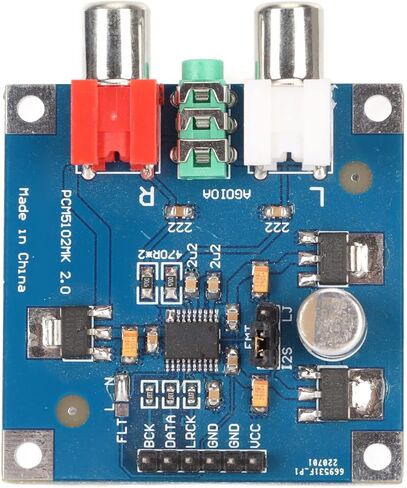

DAC Decoder Board for Power Amplifier, PCM5102 PCM5102A DAC Decoder, I2S Input 32bit 384K with 3.5 Headphone Output.

KWD 6
KWD 7
Brand
Zopsc
Weight
18 g
– 1 +

Special Features

  • Premium Sound: Direct output 2.1V RMS sound voltage, high frequency without burr, low frequency full, better dive, ES9023.
  • PLL Upfrequency: The internal PLL upfrequency of DAC decoder board is only used to generate internal MCLK clock, which cannot raise the sound sampling rate.
  • Two Filter Modes: This DAC module supports two filter modes, normal mode or low latency mode (set in the board FLT port).
  • With 3.5mm Port: DAC decoder assembled board adds a headphone output interface, which can be directly connected to 3.5mm interface headphones.
  • I2S Input: DAC decoder module supports direct input of I2S format left justified (need to switch manually).

Description

Connection: Except for VCC GND, which is connected to power supply, the remaining GND LRCK DATA BCK is connected to I2S input.

Spec:
Item Type: DAC Decoder Board
Material: PCB
Power Supply Voltage: DC 5V-10V
Maximum Support: 32bit Data 384K Sampling Rate
SNR: 112db, Distortion -93db

How to Use:
Use after installation.

Package List:
1 xDAC Decoder Board

Notice:
1. The power supply should not be connected to the reverse, the reverse will damage the board, the voltage exceeds 10V will also damage the board.
2. This board does not need to connect to MCLK chip, internal PLL upfrequency generates MCLK clock, which is much better than using asynchronous clock.
