1. Higher Accuracy: Wide in speed adjustment range, the DC motor speed controller ensures the stable working performance with high efficiency.
2. Standard Design: Supports 110V AC input and 110V DC output, the motor speed regulator enables direct start up when there is DC voltage.
3. Reversible Uses: To reverse the CW and CCW rotation direction of your DC motor, you can changing the wiring between M+ and M- terminals.
4. Wide in Fitting: Suits perfectly for 50W, 100W, 120W, 200W, 300W, 400W and so on, the motor speed control switch has flexible application.
5. Easy to Install: Compact in size and light in weight as well, the DC motor speed controller is very convenient to install within minutes.

Spec:

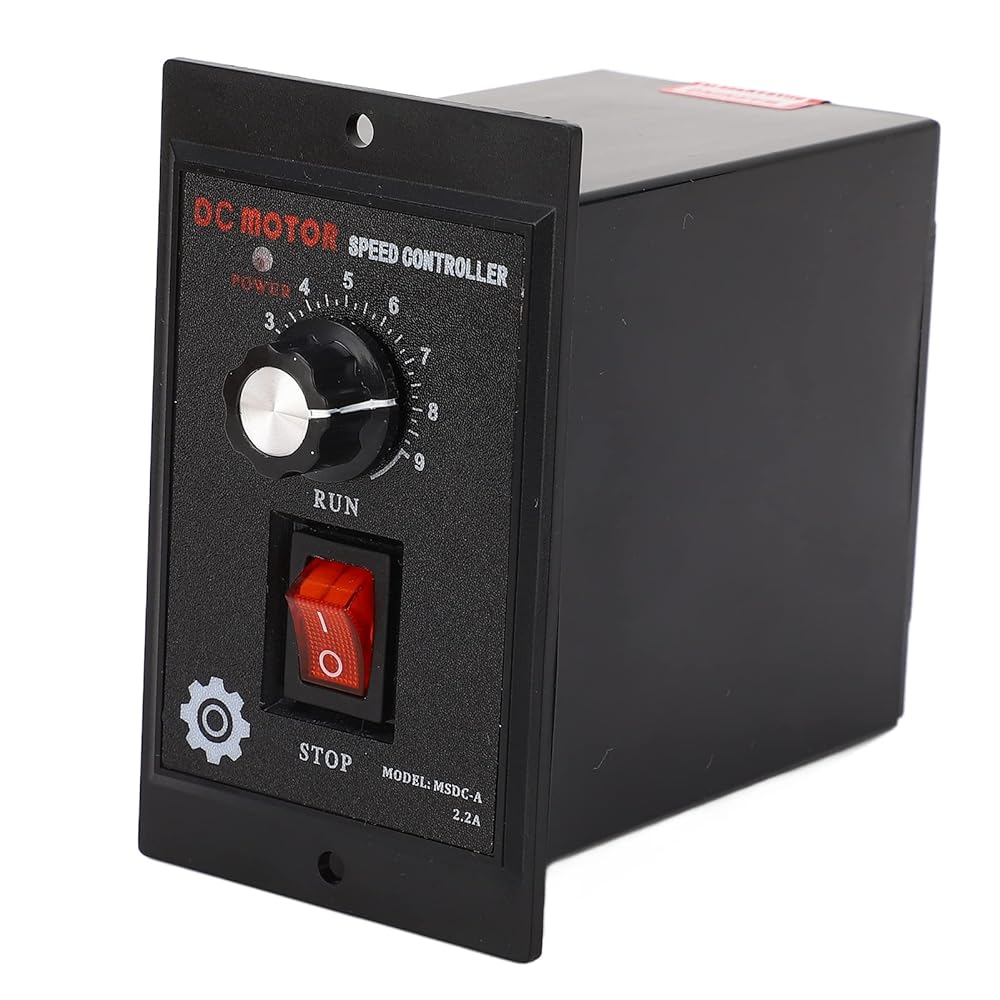

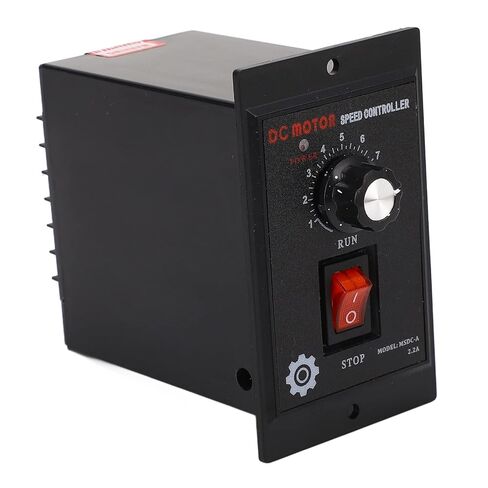

Item Type: DC Motor Speed Controller
Input: 110V AC
Output: 110V DC
Overall Dimension: Approx. 100 x 60 x 114mm / 3.94 x 2.36 x 4.49in
Opening Size: Approx. x 53mm / 3.19 x 2.09in
Installation Method: Panel Screw Installation

How to Use:
1. Before using, please adjust the external speed knob to 0 to avoid generating instantaneous large current and damaging the controller.

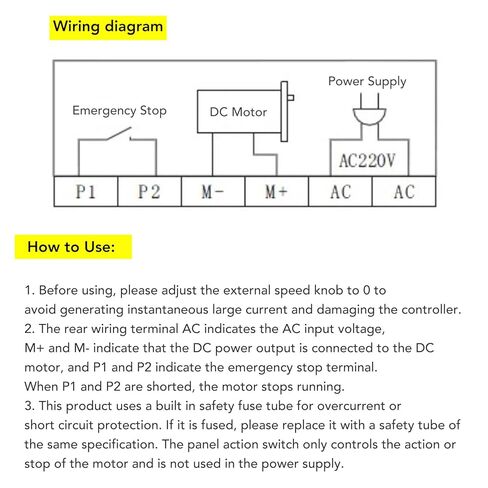

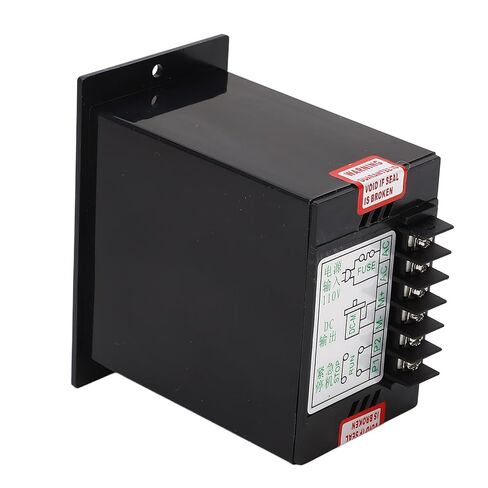

2. The rear wiring terminal AC indicates the AC input voltage, M+ and M‑ indicate that the DC power output is connected to the DC motor, and P1 and P2 indicate the emergency stop terminal. When P1 and P2 are shorted, the motor stops running.

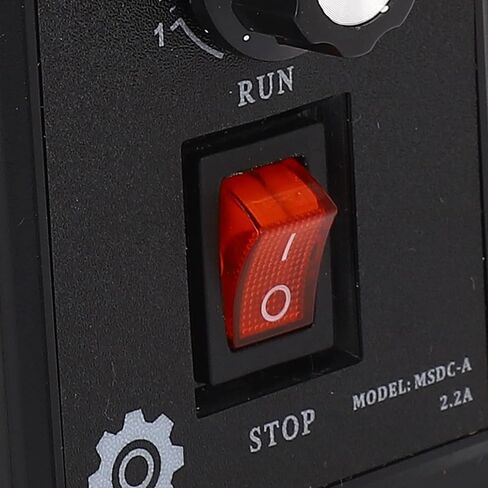

3. This product uses a built in safety tube for overcurrent or short circuit protection. If it is fused, please replace it with a safety tube of the same specification. The panel action switch only controls the action or stop of the motor and is not used in the power supply.

Package List:
1 xDC Motor Speed Controller
