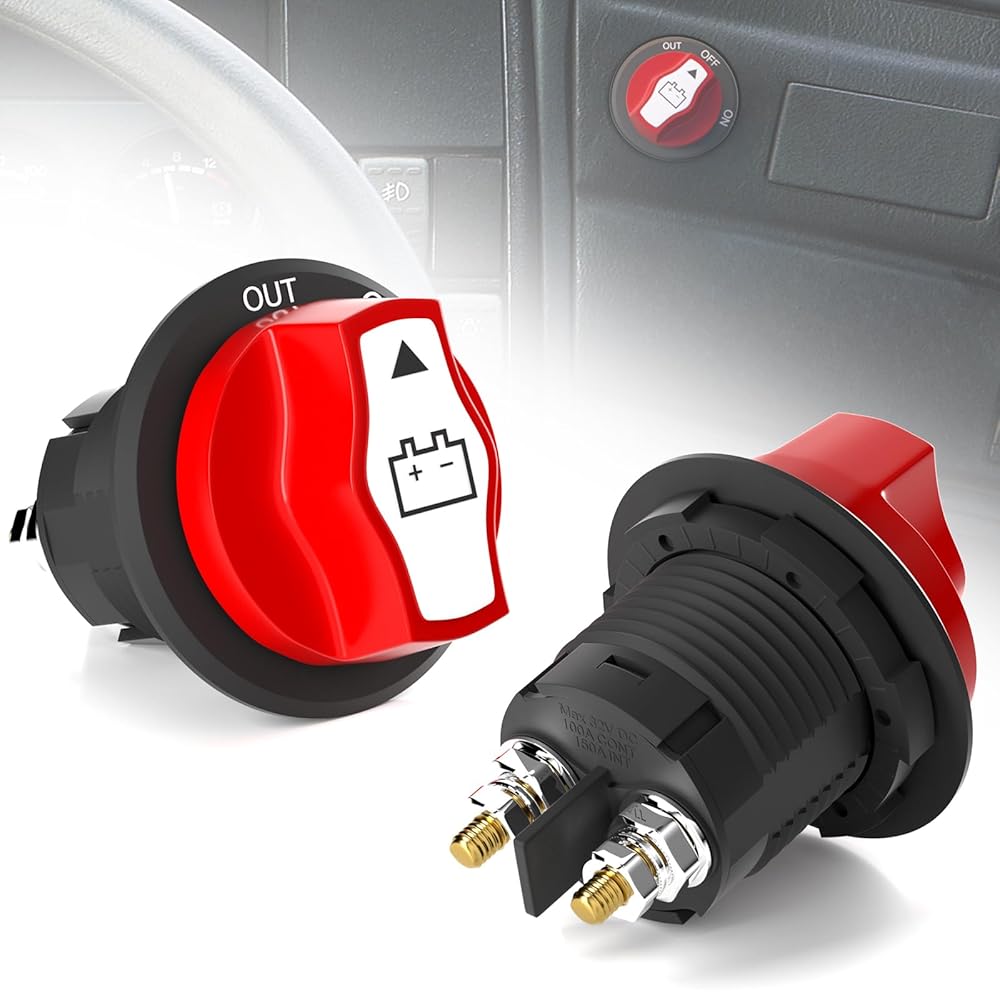

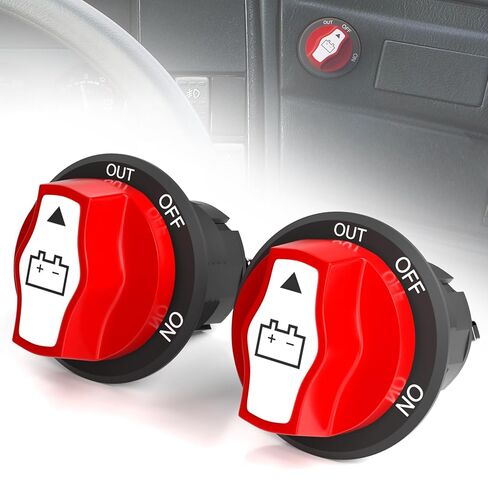

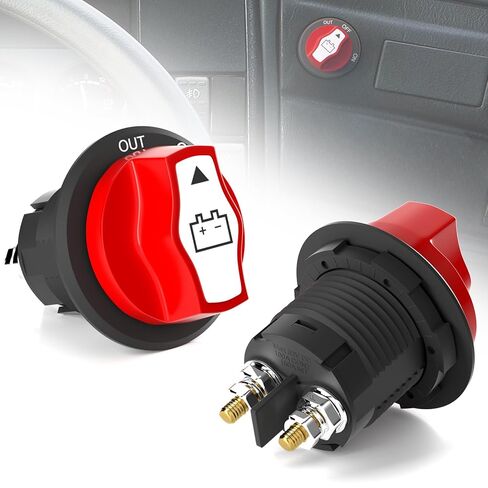

PSEQT 2Pcs Battery Disconnect Switch, Master Cut Shut Off Isolator Rotary Switch 12V-48V for Car Trailer Truck RV ATV Boat, Max 32V DC 50A Cont 75A Power On-Off-Out Switches
200A Battery Disconnect Switch Specification: Continuous Rating: 200A at 32VDC Maximum. Intermittent Rating: 300 Amps. Cranking Rating: 1000 Amps 5 sec. Contact Resistance: 50m ohm Max. Insulation Resistance: DC 500V 100M ohm Min. Dielectric Strength: AC 1000V 1 minute, DC 2000V 1 minute. Voltage Rating: DC 32V(Max). Terminal Studs: M8x2. Panel Opening:Ф38.0mm. Operating Temperature: -30°C~+60°C. Switch Function: 2P SPST OFF-ON
Functions: 3P SPST ON-OFF-OUT battery switch is used for 12V-48V DC power supply, which can easily control the ON-OFF of the circuit, isolate and protect the electrical system, and can be used alone or locked together with other switches. Switch "ON"=Power to the closed circuit. Switch "OFF"=No power to the cut-off circuit. Switch "OUT"=Turn to "OUT" remove the knob so that the switch can't be turned on
Application: Widely used in cars, boats, RV, Van, camper, motorhome, truck, trailer, ATV, UTV, etc. Also suitable for switch of electrical equipment like battery box, car audio, car refrigerator, etc

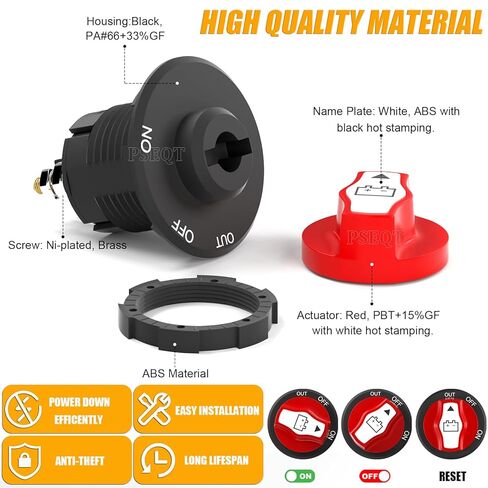

Materials: Made of ABS and PBT plastic cover, and the bolts are tinned copper. It offers good insulation and safety, can prevent current short circuits, and protect electrical equipment

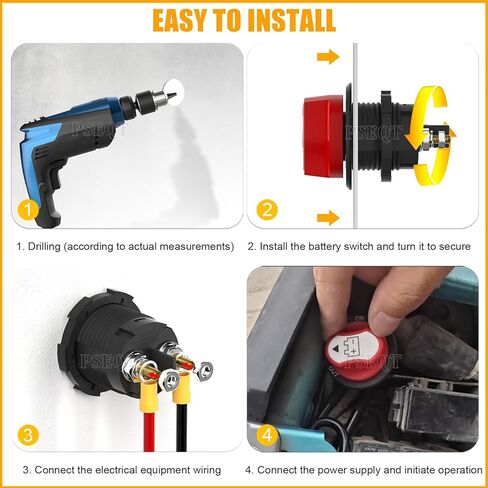

Installation: Plug and play. Make a hole according to the actual measurement size, then install the switch and connect the wire
